Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.
  1. PERFORM ACTIVE TEST BY HAND-HELD TESTER
    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch ON and push the hand-held tester main SW ON.
    3. Select the item "ILLUMI OUTPUT" in the ACTIVE TEST and operate the interior lamp.

      OK: Lamp SW ON in tester - lamp lights up.

      NG: CHECK AND REPLACE DRIVER SIDE JUNCTION BLOCK ASSY

      OK: Go to Next Step.

  2. CHECK DRIVER SIDE JUNCTION BLOCK ASSY
    1. Measure voltage between terminals when opening the front door LH only.

      Standard:

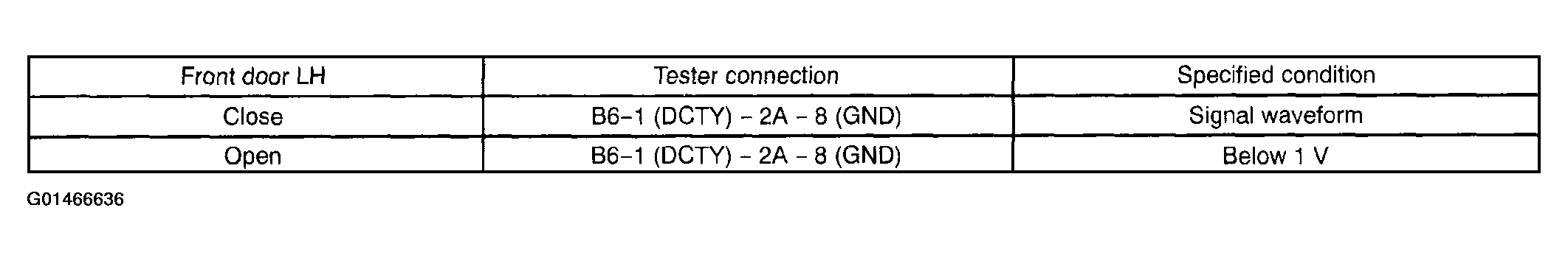

      Fig 1: Measuring Voltage Between Terminals When Opening Front Door LH Only
      G01466636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: CHECK AND REPLACE DRIVER SIDE JUNCTION BLOCK ASSY

      NG: Go to Next Step.

  3. INSPECT FRONT DOOR COURTESY LAMP SWITCH ASSY (DRIVER SIDE DOOR)
    1. Inspect front door courtesy lamp switch continuity.
      1. Check that there is continuity between terminal 1 and body ground, when switch is operated.

      Standard:

      • ON (When shaft is pressed): No continuity
      • OFF (When shaft is not pressed): Continuity

      NG: REPLACE FRONT DOOR COURTESY LAMP SWITCH ASSY (DRIVER SIDE DOOR)

      OK: Go to Next Step

  4. CHECK HARNESS AND CONNECTOR (BETWEEN DRIVER SIDE J/B ASSY AND FRONT DOOR COURTESY LAMP SWITCH)
    1. Disconnect the connector of the multiplex network body ECU.
    2. Check the continuity between terminal B6 - 1 (DCTY) and body ground.

      Standard: There is continuity.

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to Next Step.

  5. CHECK DRIVER SIDE JUNCTION BLOCK ASSY
    1. Check that signal waveform appears between terminals when opening the front door RH only.

      Standard:

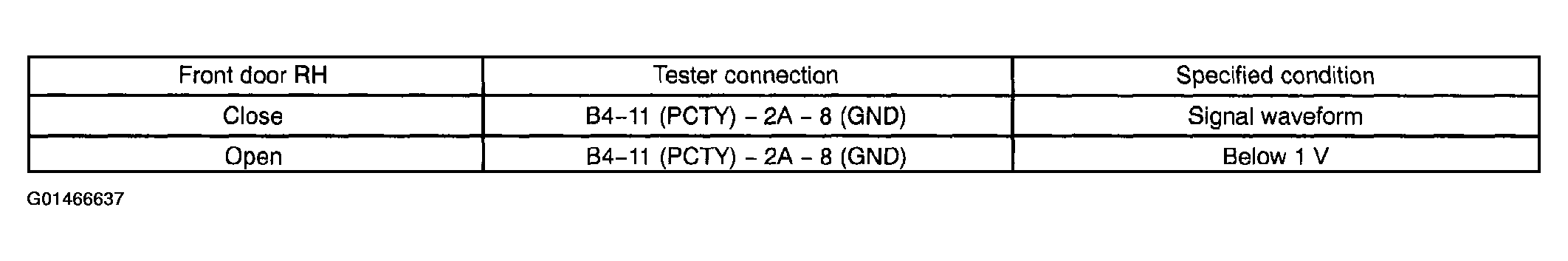

      Fig 2: Checking Signal Waveform Appears Between Terminals When Opening Front Door RH Only Chart
      G01466637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: CHECK AND REPLACE DRIVER SIDE JUNCTION BLOCK ASSY

      NG: Go to Next Step.

  6. INSPECT FRONT DOOR COURTESY LAMP SWITCH ASSY (PASSENGER SIDE DOOR)
    1. Inspect front door courtesy lamp switch continuity.
      1. Check that the continuity exists between terminal 1 and body ground when switch is operated.

      Standard:

      • ON (When shaft is pressed): No continuity
      • OFF (When shaft is not pressed): Continuity

      NG: REPLACE FRONT DOOR COURTESY LAMP SWITCH ASSY (PASSENGER SIDE DOOR)

      OK: Go to Next Step.

  7. CHECK HARNESS AND CONNECTOR (BETWEEN DRIVER SIDE J/B ASSY AND FRONT DOOR COURTESY LAMP SWITCH)
    1. Disconnect the connector of the multiplex network body computer.
    2. Check the continuity between terminal B4 - 11 (PCTY) and body ground.

      Standard: There is continuity.

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to Next Step.

  8. CHECK DRIVER SIDE JUNCTION BLOCK ASSY
    1. Check that signal waveform appears between terminals, when opening the rear door LH only.

      Standard:

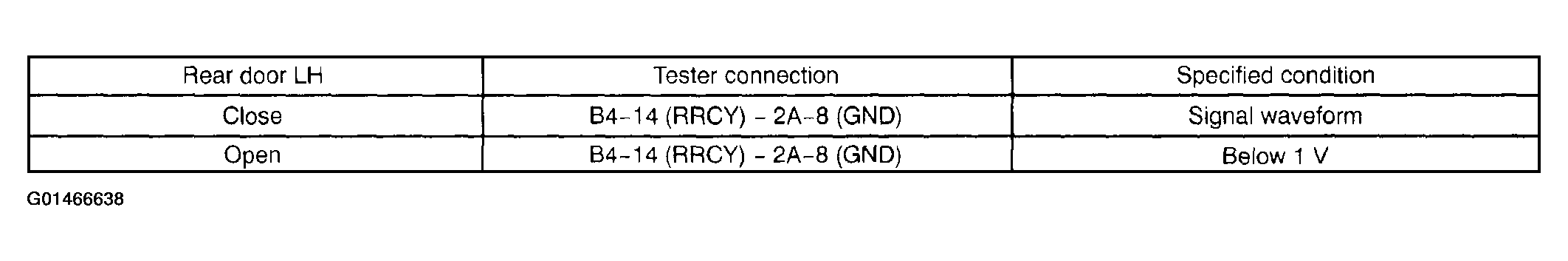

      Fig 3: Checking Signal Waveform Appears Between Terminals When Opening Rear Door LH Only Charts
      G01466638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: CHECK AND REPLACE DRIVER SIDE JUNCTION BLOCK ASSY

      NG: Go to Next Step.

  9. INSPECT REAR DOOR COURTESY LAMP SWITCH ASSY (REAR DOOR RH)
    1. Inspect rear door courtesy lamp switch RH continuity.
      1. Check that the continuity exists between terminal 1 and body ground, when switch is operated.

      Standard:

      • ON (When shaft is pressed): No continuity
      • OFF (When shaft is not pressed): Continuity

      NG: REPLACE REAR DOOR COURTESY LAMP SWITCH ASSY (REAR DOOR RH)

      OK: Go to Next Step.

  10. CHECK HARNESS AND CONNECTOR (BETWEEN DRIVER SIDE J/B ASSY AND REAR DOOR COURTESY LAMP SWITCH RH)
    1. Disconnect the connector of the multiplex network body ECU.
    2. Check the continuity between terminal B4-14 (RRCY) and body ground.

      Standard: There is continuity.

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to Next Step.

  11. CHECK DRIVER SIDE JUNCTION BLOCK ASSY
    1. Check that signal waveform appears between terminals when opening the rear door RH only.

      Standard:

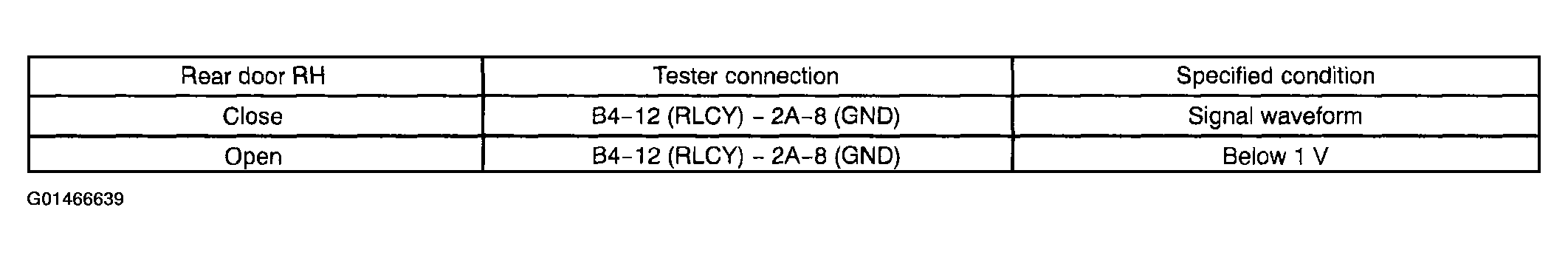

      Fig 4: Checking Signal Waveform Appears Between Terminals When Opening Rear Door RH Only Chart
      G01466639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: CHECK AND REPLACE DRIVER SIDE JUNCTION BLOCK ASSY

      NG: Go to Next Step.

  12. INSPECT REAR DOOR COURTESY LAMP SWITCH ASSY (REAR DOOR LH)
    1. Inspect rear door courtesy lamp switch LH continuity.
      1. Check that the continuity exists between terminal 1 and body ground when switch is operated.

      Standard:

      • ON (When shaft is pressed): No continuity
      • OFF (When shaft is not pressed): Continuity

      NG: REPLACE REAR DOOR COURTESY LAMP SWITCH ASSY (REAR DOOR LH)

      OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (BETWEEN DRIVER SIDE J/B ASSY AND COURTESY LAMP SWITCH)
