Initial Set Control Function Operates, But Headlamp Aiming Does Not Operate (Warning Lamp Goes Off): Wiring Diagram

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

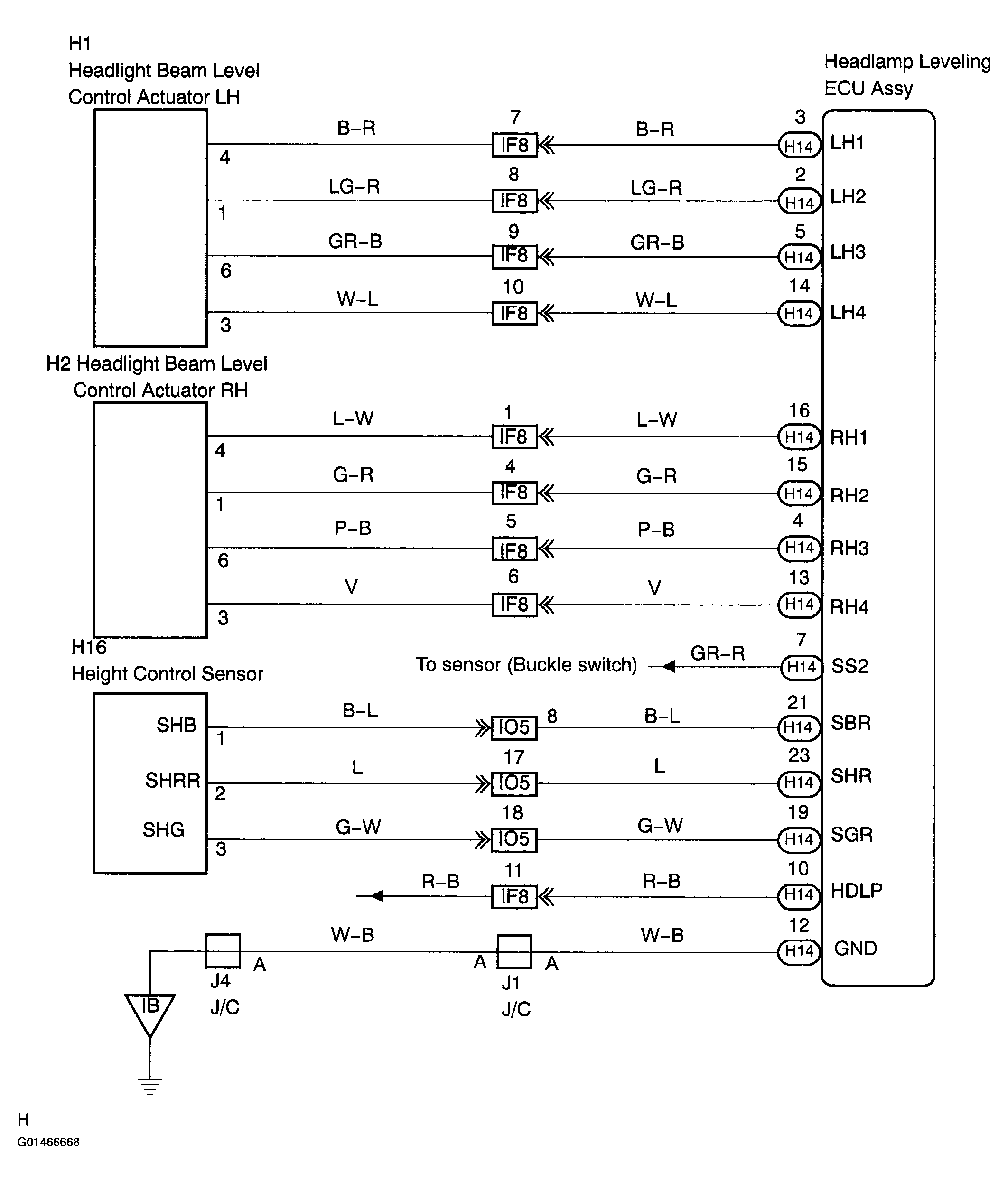

Fig 1: Initial Set Control Function Operates, But Headlamp Aiming Does Not Operate (Warning Lamp Goes Off)
G01466668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. CHECK INITIALIZE
    1. Start engine.
    2. Check that initial set control function of both headlamps operates.

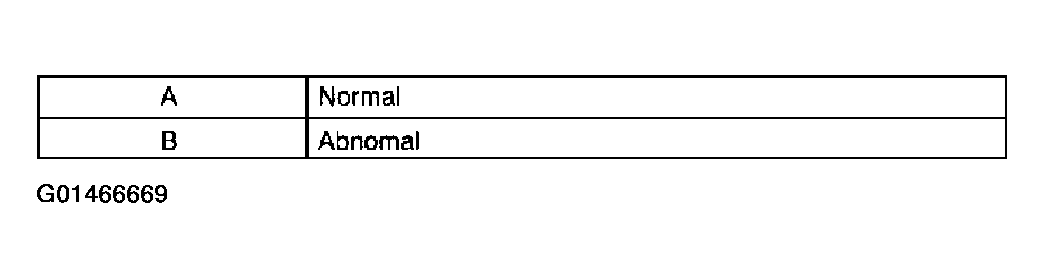

      Fig 2: Checking Initial Set Control Function Of Both Headlamps Operates
      G01466669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      B: Go to step   3

      A: Go to Next Step

  2. CHECK HEAD LIGHT UNIT (HEADLAMP LEVELING MOTOR)
    1. Inspect headlamp leveling motor resistance.
      1. Check that there is continuity between terminal 2 and 5.
        Fig 3: Checking Continuity Between Terminals 2 & 5
        G01466671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Check that there is resistance between terminals as shown in Fig 4 .

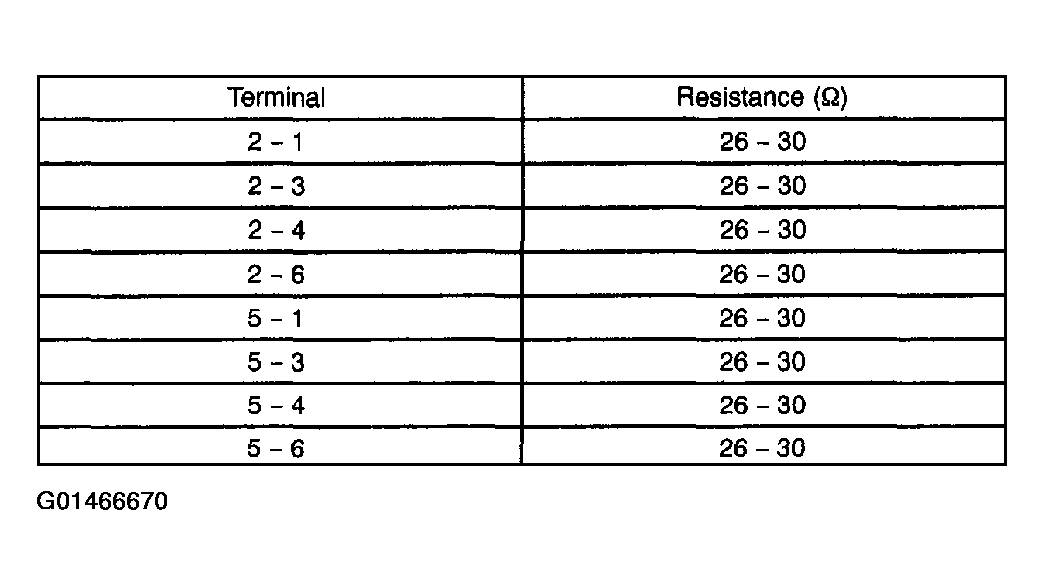

      Fig 4: Checking Head Light Unit (Headlamp Leveling Motor) Resistance Chart
      G01466670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: Go to step   4

      NG: REPLACE HEAD LIGHT UNIT (LEVELING MOTOR)

  3. CHECK HEADLAMP LEVELING ECU ASSY
    1. Check signal waveform.
      1. RH:

        Using an oscilloscope, check signal waveform between terminal H14-16 (RH1), H14- 15 (RH2), H14-4 (RH3), H14-13 (RH4) and body ground.

      2. LH:

        Using an oscilloscope, check signal waveform between terminal H14-3 (LH1), H14-2 (LH2), H14-5 (LH3), H14-14 (LH4) and identifying body ground.

        Standard: Signal waveform 2

      3. Signal waveform 2

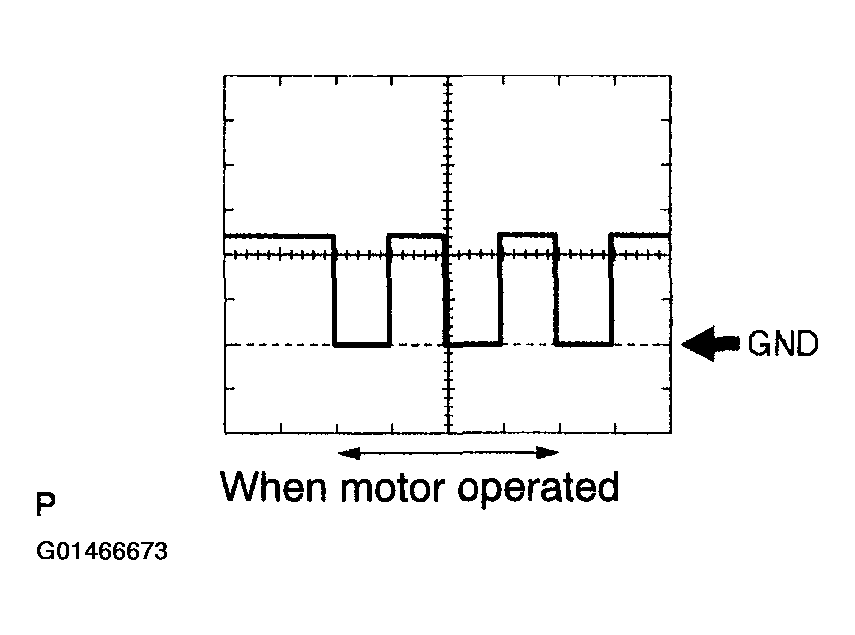

      Fig 5: Identifying Signal Waveform 2
      G01466673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

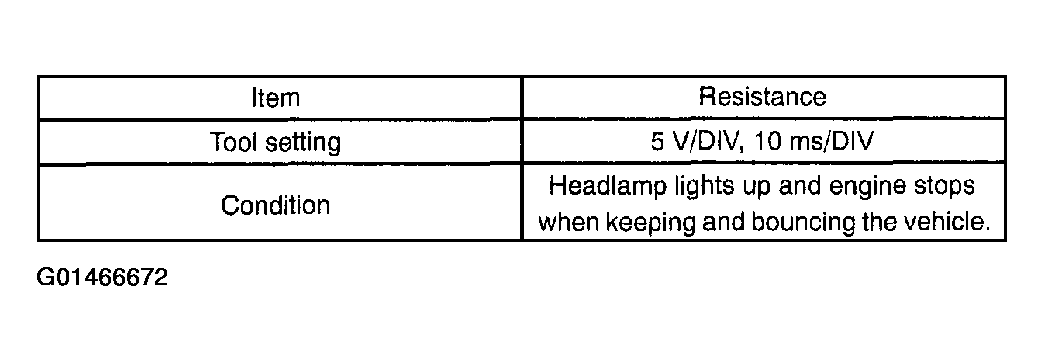

      Fig 6: Signal Waveform 2 Chart
      G01466672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: Go to step   6

      NG: Go to Next Step

  4. CHECK HEADLAMP LEVELING ECU ASSY
    1. Measure voltage between terminal H14-10 (HDLP) and H14-12 (GND) of headlamp leveling ECU assy.

      Standard: Below 1.5 V

      OK: Go to step   7

      NG: Go to Next Step

  5. CHECK HARNESS AND CONNECTOR (BETWEEN MULTIPLEX NETWORK BODY COMPUTER AND HEADLAMP LEVELING ECU ASSY)
    1. Check the continuity between terminal H14-10 (HDLP) of headlamp leveling ECU assy and multiplex network body computer.

      Standard: There is continuity.

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: REPLACE DRIVER SIDE JUNCTION BLOCK ASSY

  6. CHECK HEAD LIGHT UNIT (Damage)
    1. Inspect headlamp leveling motor resistance.
      1. Check that there is continuity between terminal 2 and 5.
        Fig 7: Checking Continuity Between Terminals 2 & 5
        G01466675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Check that there is resistance between terminals as shown in Fig 8 .

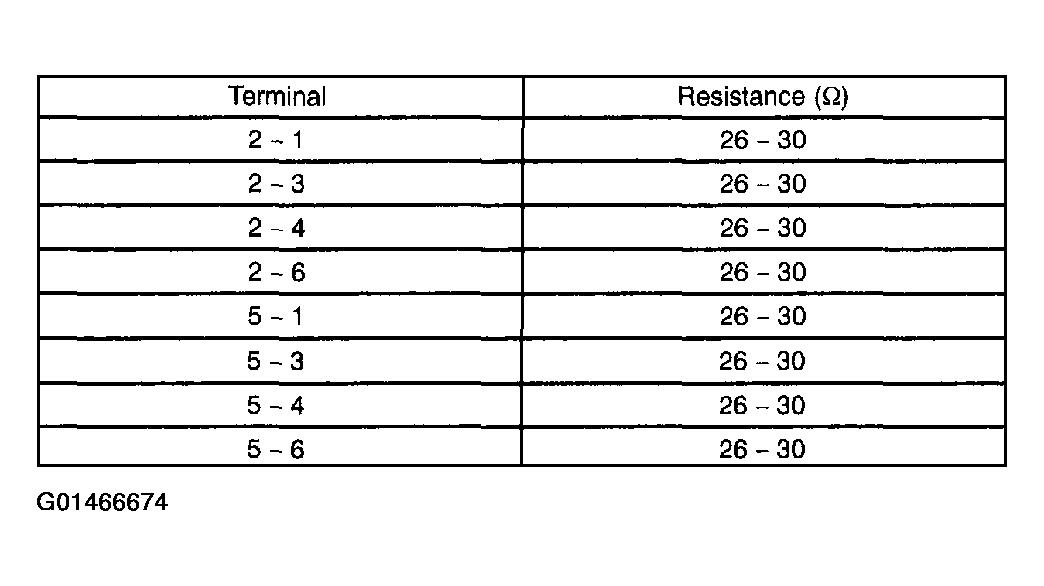

      Fig 8: Checking Resistance Between Terminals Chart
      G01466674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: REPLACE HEADLIGHT UNIT (DAMAGE)

  7. CHECK HEADLAMP LEVELING ECU ASSY (SHR TERMINAL VOLTAGE)
    1. Measure voltage between terminal H14-23 (SHR) and H14-19 (SGR) of headlamp leveling ECU assy.

      Standard: 2.5 V

      OK: CHECK AND REPLACE HEADLAMP LEVELING ECU ASSY

      NG: Go to Next Step

  8. INSPECT HEIGHT CONTROL SENSOR SUB-ASSY REAR RH
    1. Connect 3 batteries (1.5 V) in series.
    2. Connect the battery positive terminal to terminal SHB, and the negative one to terminal SHG to apply the voltage of 4.5 V between terminals SHB and SHG.
    3. While slowly moving the link up and down with the voltage being applied, check the voltage between terminals SHRR and SHG.

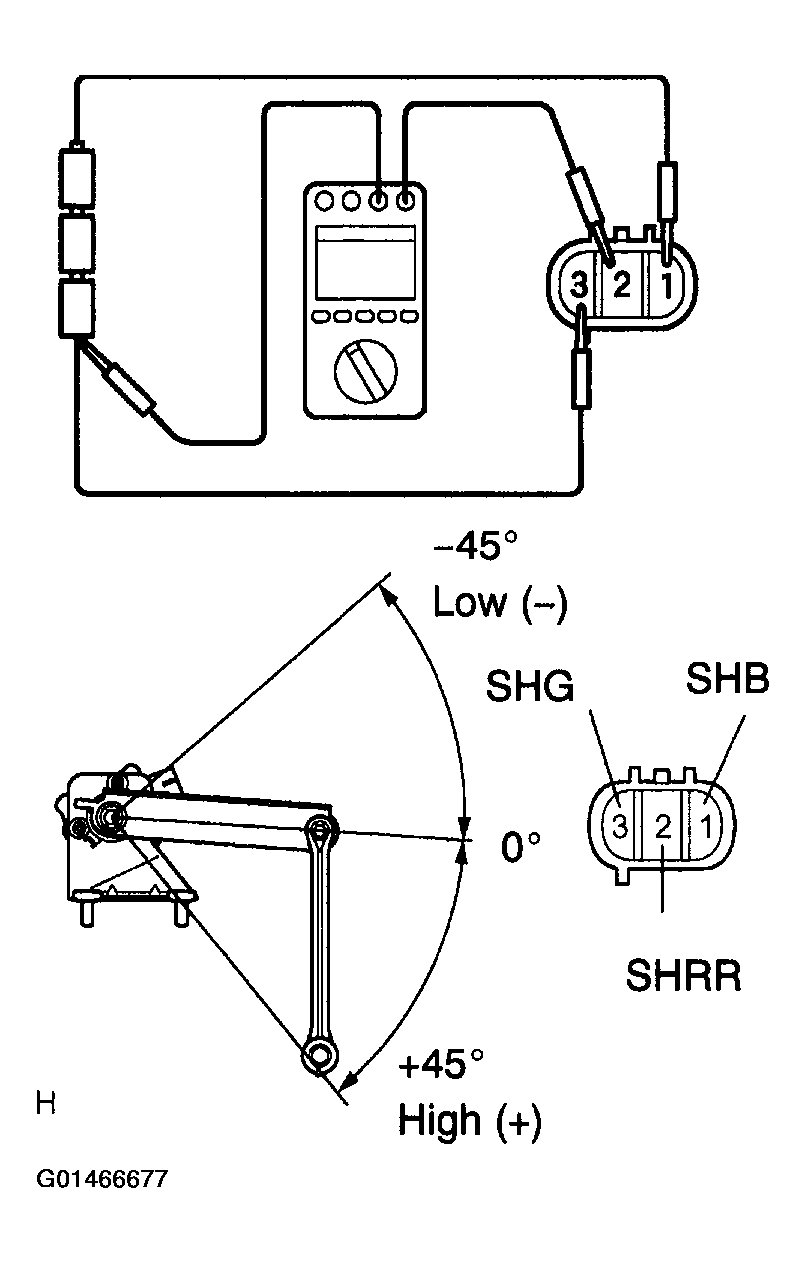

      Fig 9: Checking Voltage Between Terminals SHRR & SHG
      G01466677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

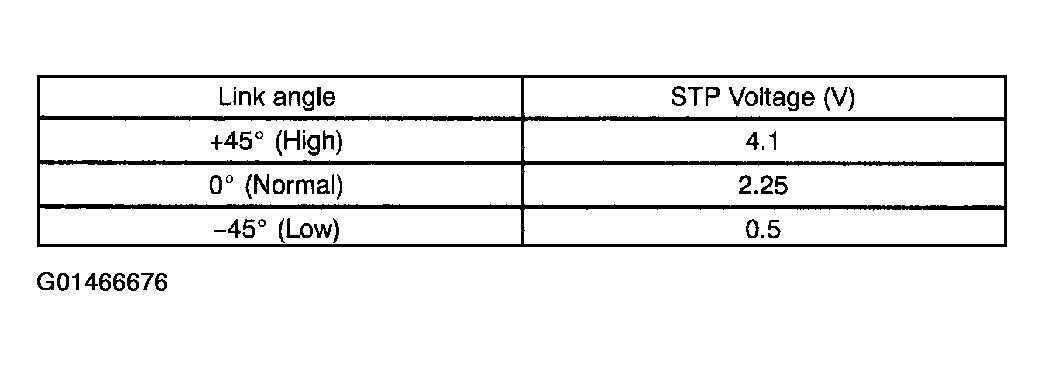

      Fig 10: Height Control Sensor Sub-Assy Rear RH Chart
      G01466676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPLACE HEIGHT CONTROL SENSOR SUBASSY REAR RH

      OK: Go to Next Step

  9. CHECK HEADLAMP LEVELING ECU ASSY
    1. Disconnect the connector of headlamp leveling ECU assy.
    2. Check the continuity between terminal 7 (SS2) of the vehicle side connector of the headlamp leveling ECU assy and body ground when passenger side seat belt buckle switch ON.

      Standard: There is continuity

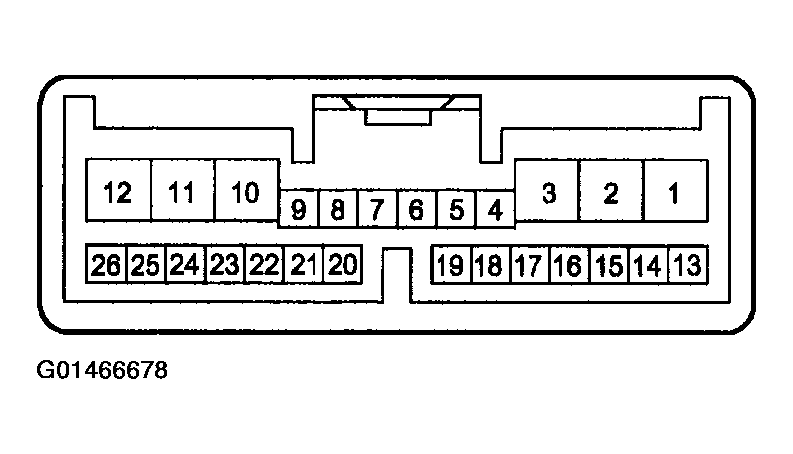

      Fig 11: Checking Continuity Between Terminal 7 & Body Ground
      G01466678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPLACE SENSOR

      OK: CHECK AND REPLACE HEADLAMP LEVELING ECU ASSY
