Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK LIGHT
    1. Check that head light and taillight comes on.

      NG: FLOW CHART OF HEAD LIGHT OR TAILLIGHT (GO TO  PROBLEM SYMPTOMS TABLE   )

      OK: Go to Next Step.

  2. READ VALUE OF HAND-HELD TESTER
    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch ON and push the hand-held tester main SW ON.
    3. Select the item "AUTO LIGHT SW" in the DATA LIST and read its value displayed on the hand-held tester.

      OK:

      • Light control SW AUTO --> ON
      • Light control SW except AUTO --> OFF

      NG: REPLACE HEADLAMP DIMMER SWITCH ASSY

      OK: Go to Next Step.

  3. CHECK AUTOMATIC LIGHT CONTROL SENSOR
    1. Check the continuity between terminal 3 (+) and body ground as shown in Fig 2 .

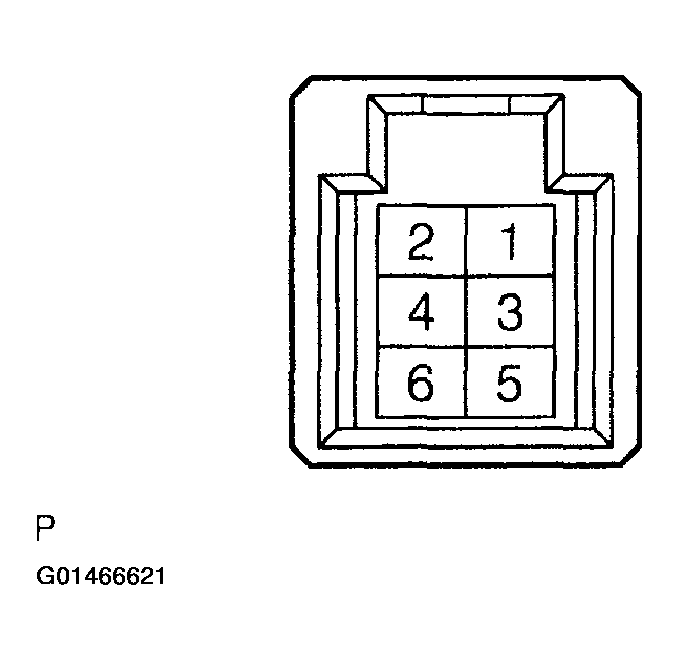

      Fig 1: Checking Continuity Between Terminal 3 & Body Ground
      G01466621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure voltage between terminals as shown in Fig 2 .
    3. Using an oscilloscope, check that signal waveform appears between terminals.

      Standard:

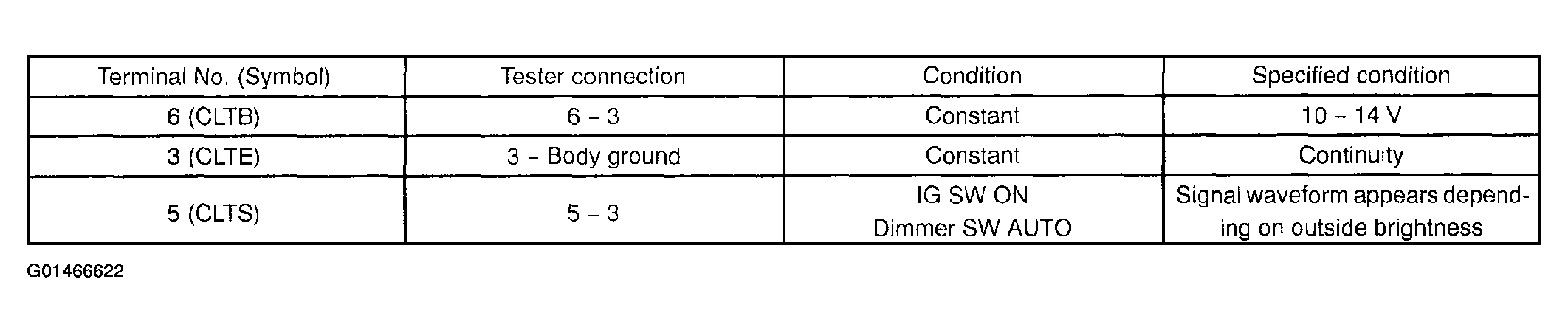

      Fig 2: Automatic Light Control Sensor Specifications Chart
      G01466622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: FLOW CHART FLOW CHART OF HEAD LIGHT OR TAILLIGHT (GO TO  PROBLEM SYMPTOMS TABLE   )

      NG: Go to Next Step.

  4. CHECK HARNESS AND CONNECTOR (BETWEEN DRIVER SIDE J/B ASSY AND AUTOMATIC LIGHT CONTROL SENSOR)
    1. Check that signal waveform appears between terminal B5 - 17 (CLTS) and body ground.

      Standard: Bar appears.

      OK: CHECK AND REPLACE DRIVER SIDE JUNCTION BLOCK ASSY

      NG: Go to Next Step.

  5. CHECK HARNESS AND CONNECTOR (BETWEEN DRIVER SIDE J/B ASSY AND AUTOMATIC LIGHT CONTROL SENSOR)
    1. Measure voltage between terminal B5 - 15 (CLTB) and body ground.

      Standard: 10 - 14 V

      OK: CHECK AND REPLACE DRIVER SIDE JUNCTION BLOCK ASSY

      NG: Go to Next Step.

  6. CHECK HARNESS AND CONNECTOR (BETWEEN DRIVER SIDE J/B ASSY AND AUTOMATIC LIGHT CONTROL SENSOR)
    1. Check the continuity between terminal B5 - 16 (CLTE) of driver side J/B assy and 3 (CLTE) of automatic light control sensor.

      Standard: There is continuity.

      OK: CHECK AND REPLACE DRIVER SIDE JUNCTION BLOCK ASSY

      NG: REPLACE AUTOMATIC LIGHT CONTROL SENSOR
