Circuit Description

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

This DTC is output when failure in the light sensor circuit is detected.

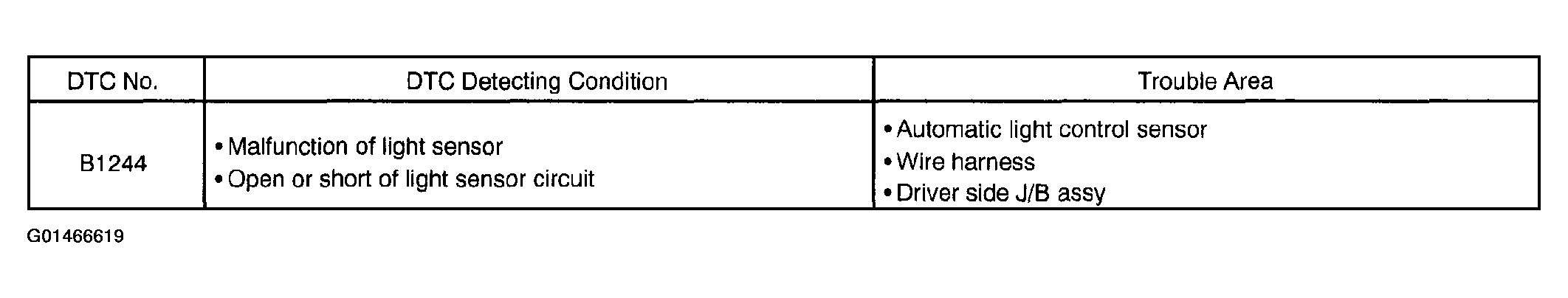

Fig 1: Light Sensor Circuit Malfunction Circuit Description
G01466619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
