Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

HEATER CONTROL HOUSING SUB-ASSY (A/C Amplifier)

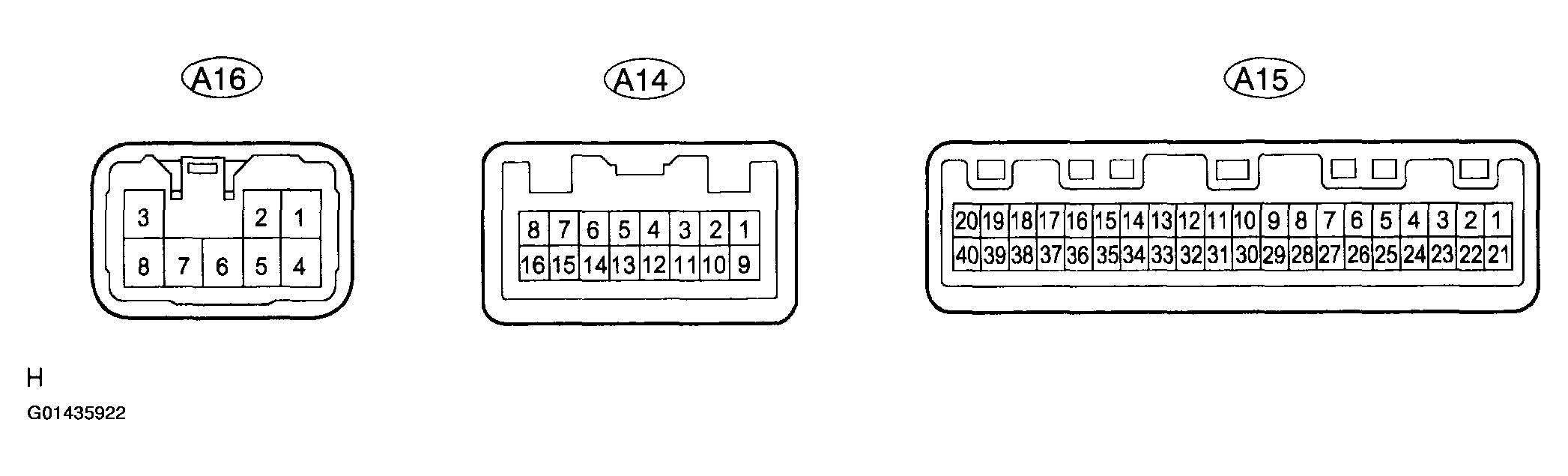

Fig 1: Identifying Terminals Of ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

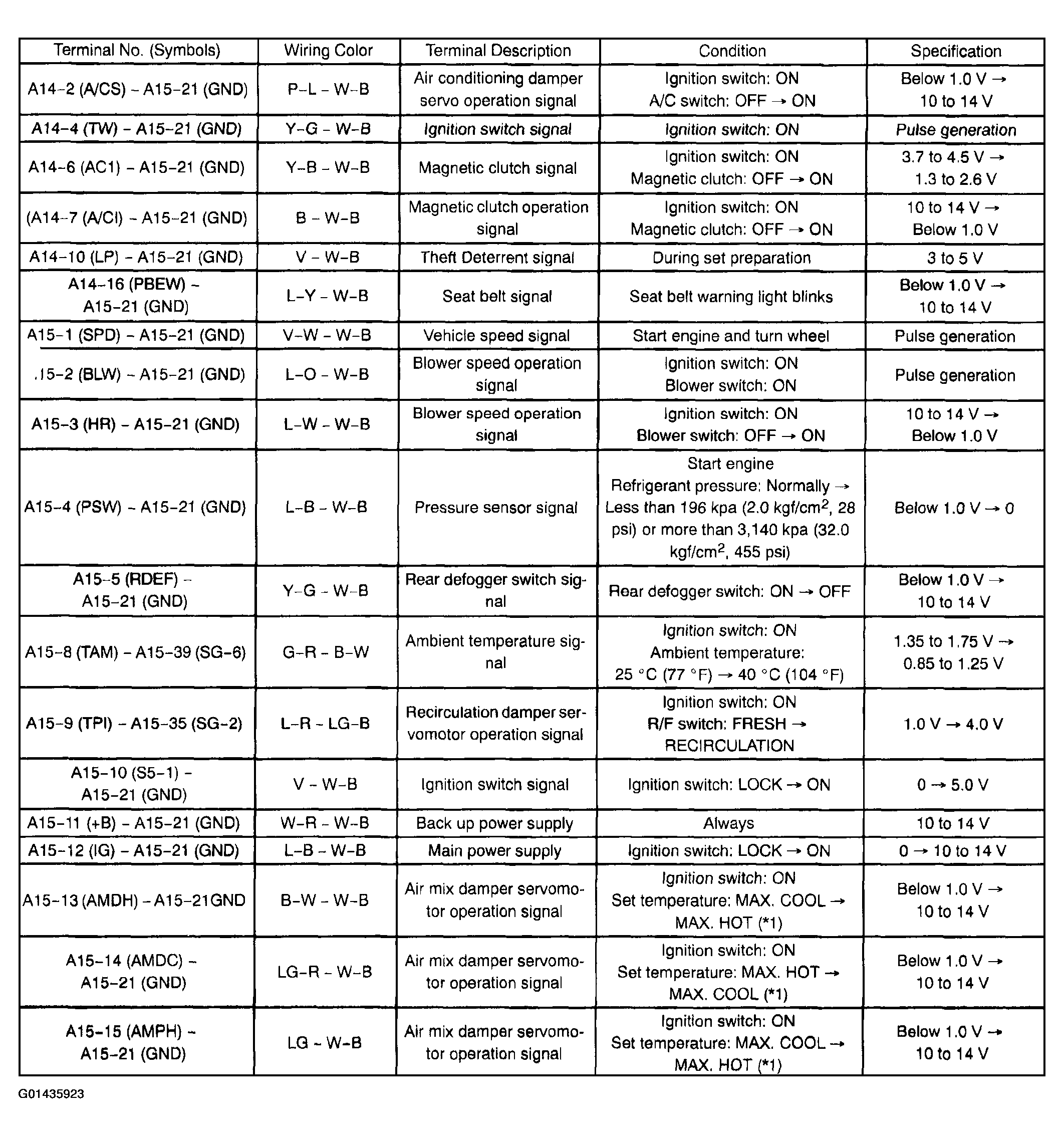

Fig 2: ECU Terminal Description Chart (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

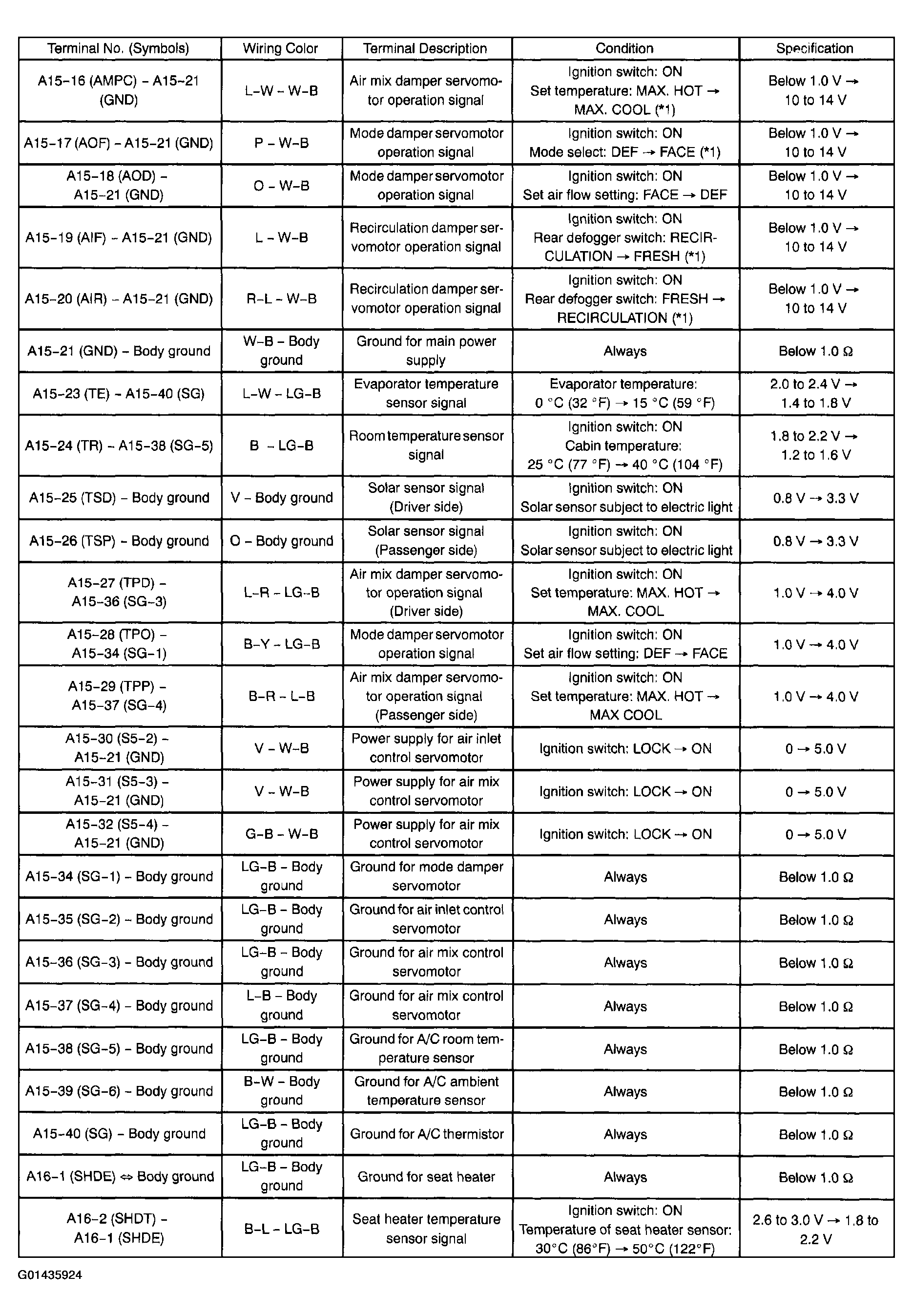

Fig 3: ECU Terminal Description Chart (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

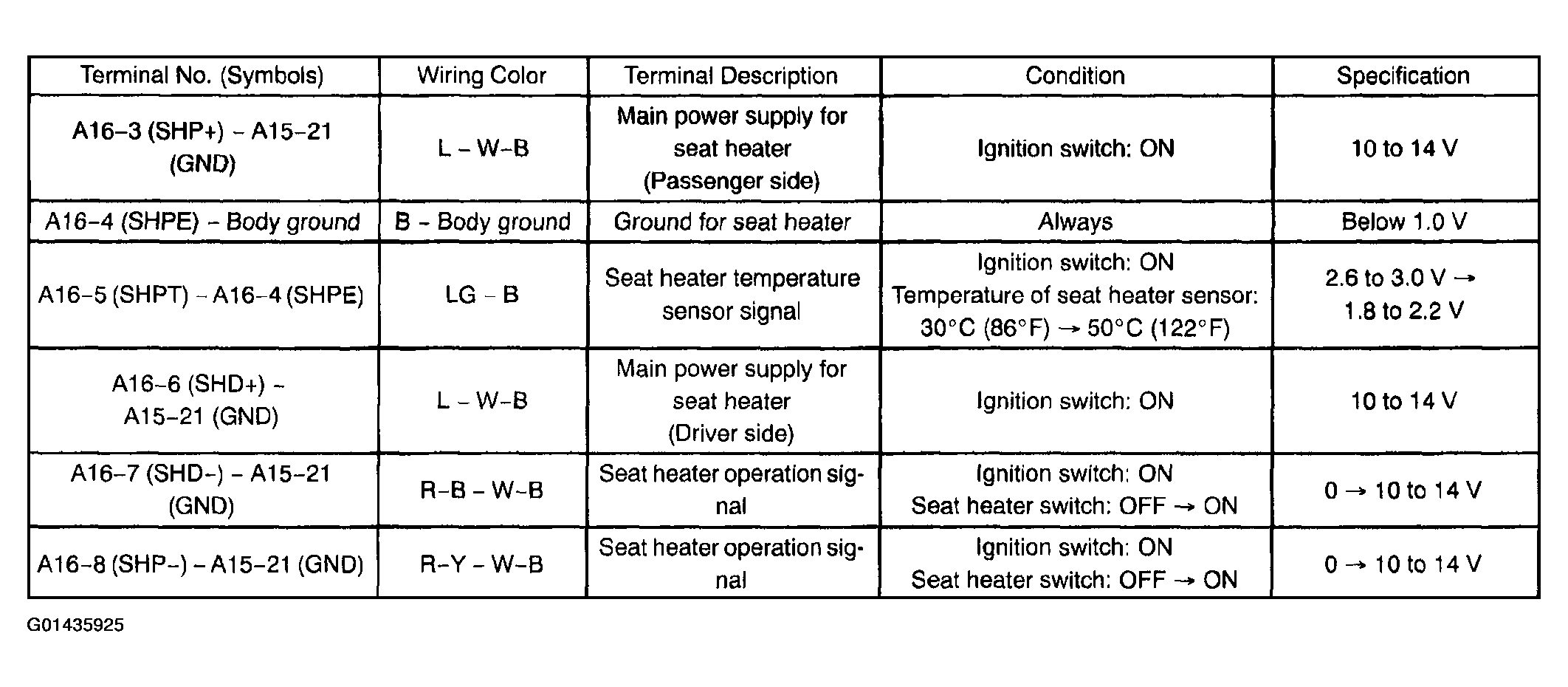

Fig 4: ECU Terminal Description Chart (3 Of 3)

ECM:

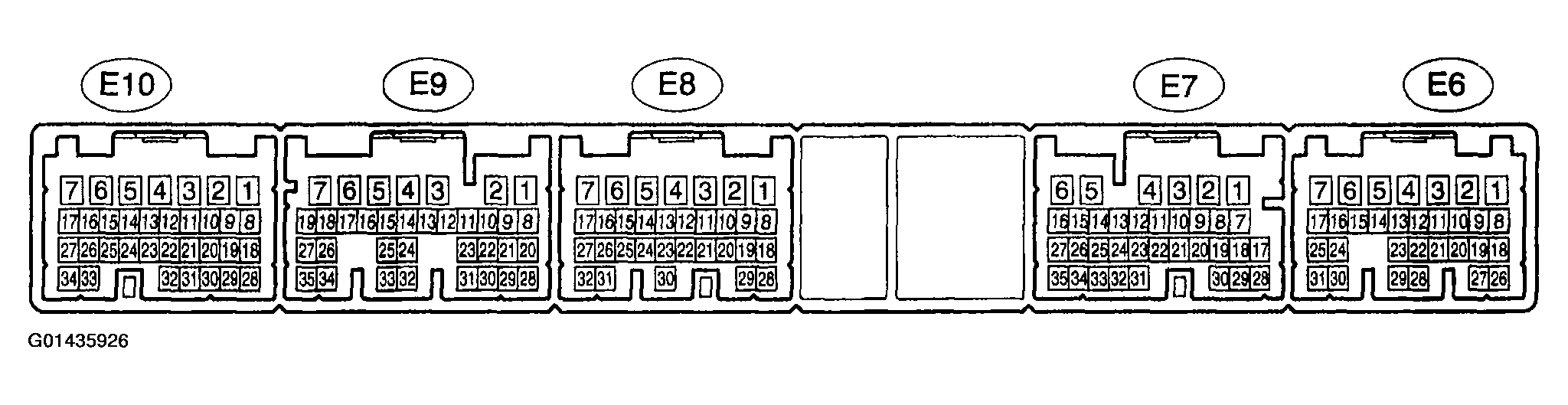

Fig 5: Identifying ECM Component Connectors

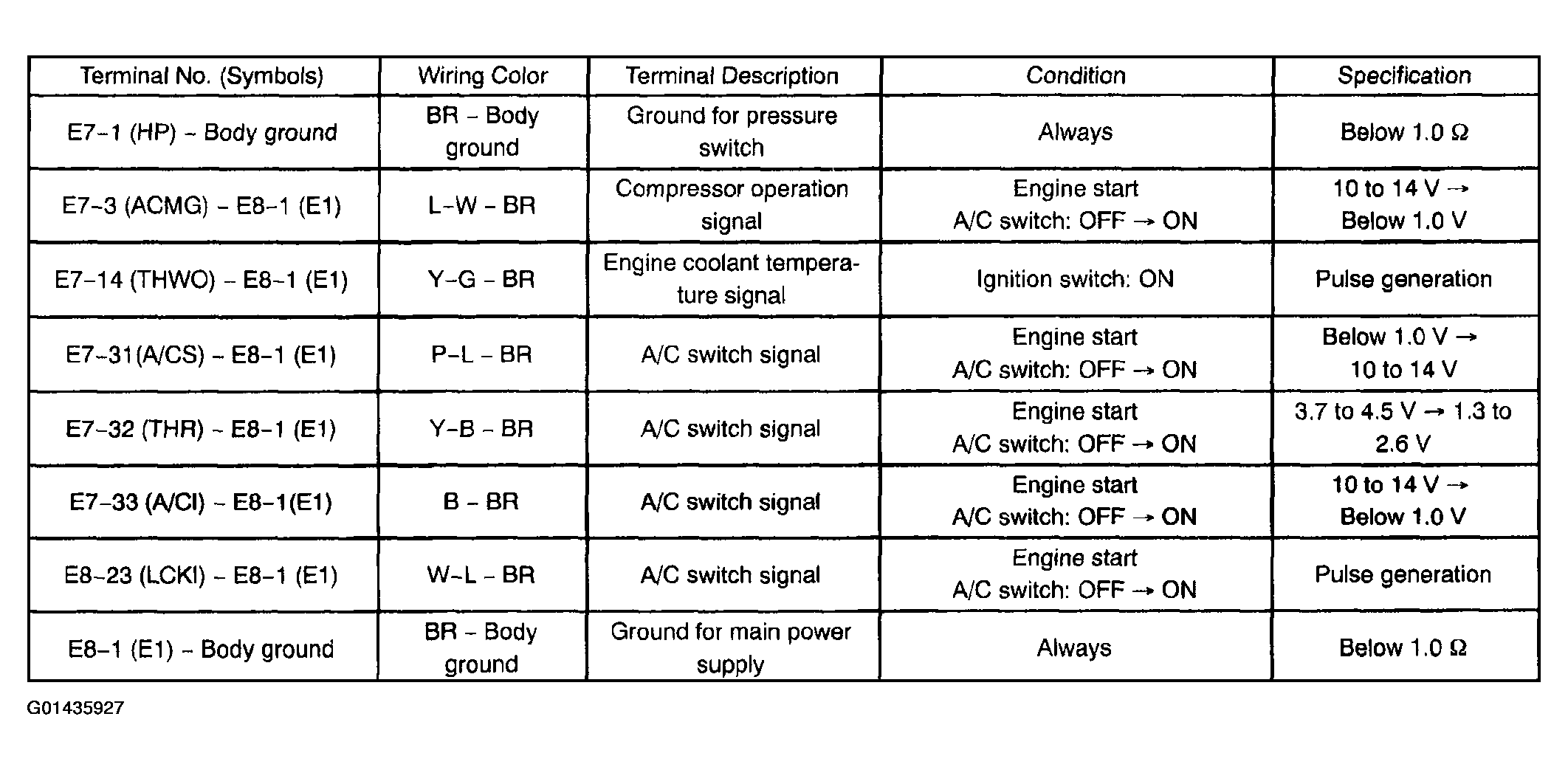

Fig 6: ECM Terminal Description Chart
