Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

PERFORM ACTUATOR CHECK
1. Set to actuator check mode (see PRE-CHECK ).
2. Press the DEF switch and change to step operation.
3. Check the air flow temperature by hand.

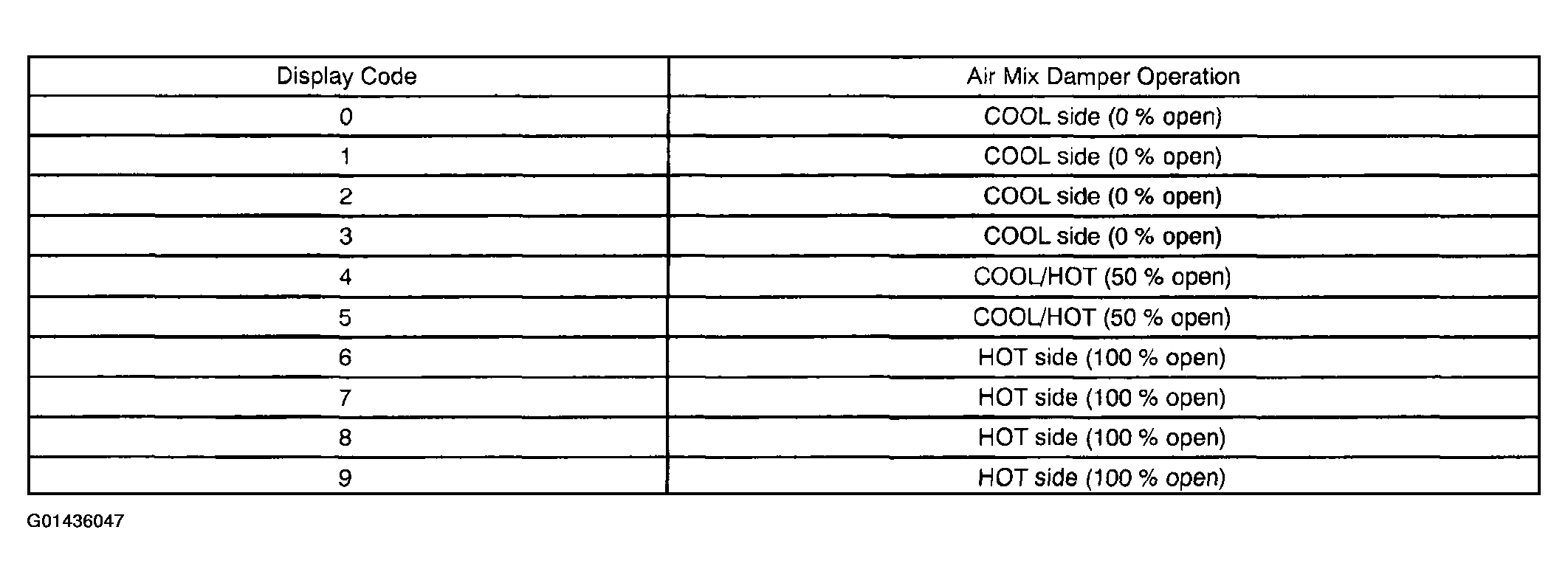

  Fig 1: Actuator Check Procedure Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE PROBLEM SYMPTOMS TABLE )

OK: Go to next step.
INSPECT AIRMIX DAMPER SERVO SUB-ASSY
1. Remove the air mix damper servo sub-assy.
2. Connect the positive (+) lead from the battery to terminal 4 and negative (-) lead to terminal 5, then check that the lever turns to "COOL" side smoothly.
3. Connect the positive (+) lead from the battery to terminal 5 and negative (-) lead to terminal 4, then check that the lever turns to "HOT" side smoothly.

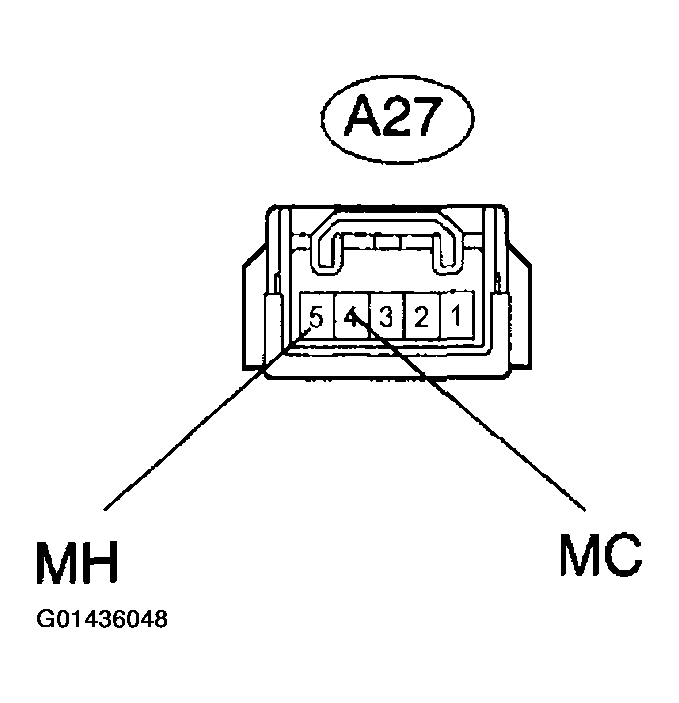

  Fig 2: Identifying Connector Terminal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

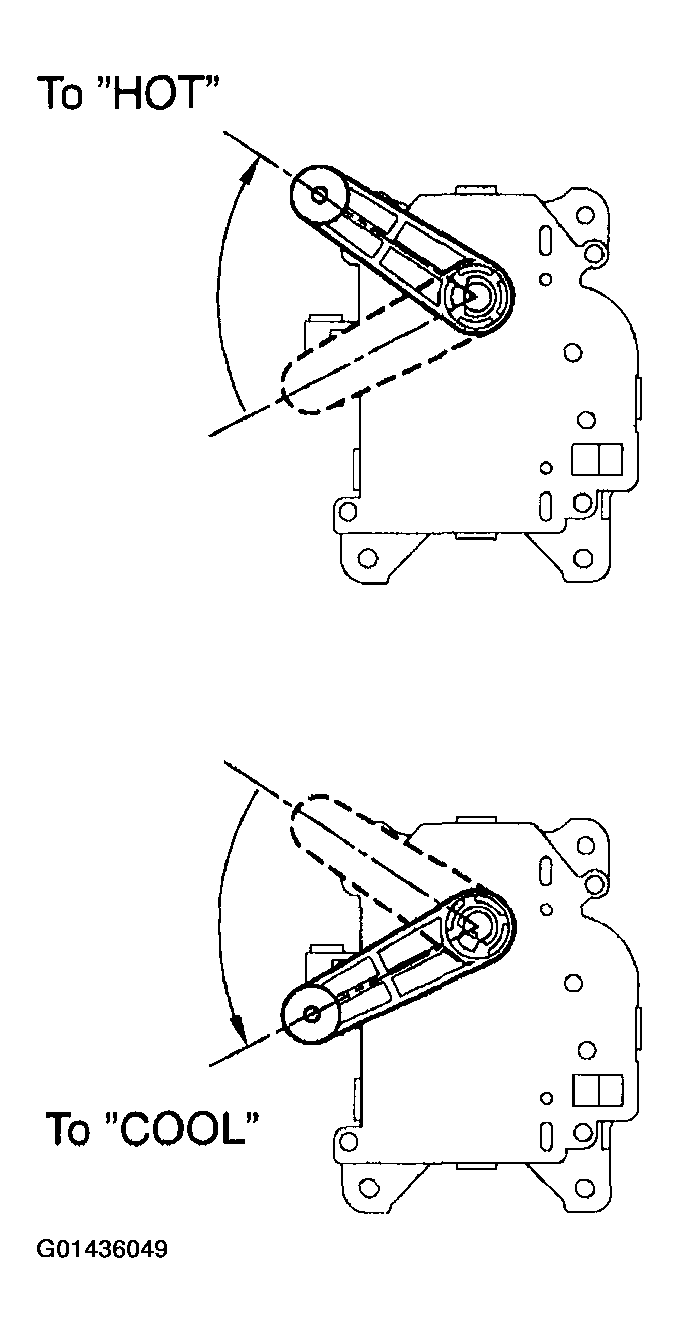

  Fig 3: Identifying Position Of Air Mix Damper Servo Sub-Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPLACE AIRMIX DAMPER SERVO SUB-ASSY

OK: Go to next step.
CHECK HARNESS AND CONNECTOR(BETWEEN AIR MIX DAMPER CONTROL SERVOMOTOR AND HEATER CONTROL HOUSING SUB-ASSY)
1. Remove A/C amplifier with connectors still connected.
2. Measure voltage between terminal AMDH of A/C amplifier and body ground when temperature control switch is operated, as shown in the chart.

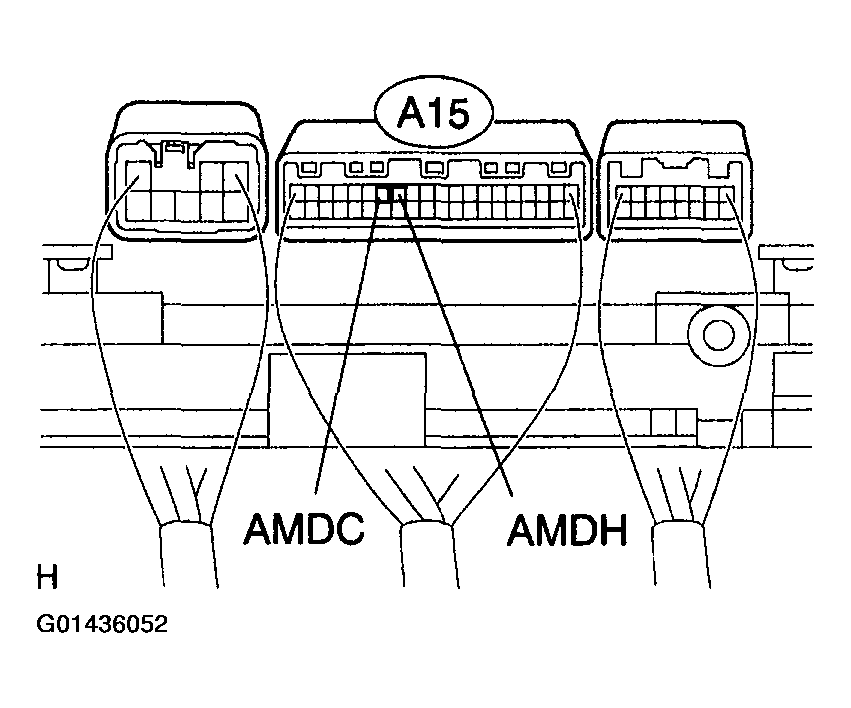

  Fig 4: Identifying Terminal AMDC Of A/C Amplifier Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

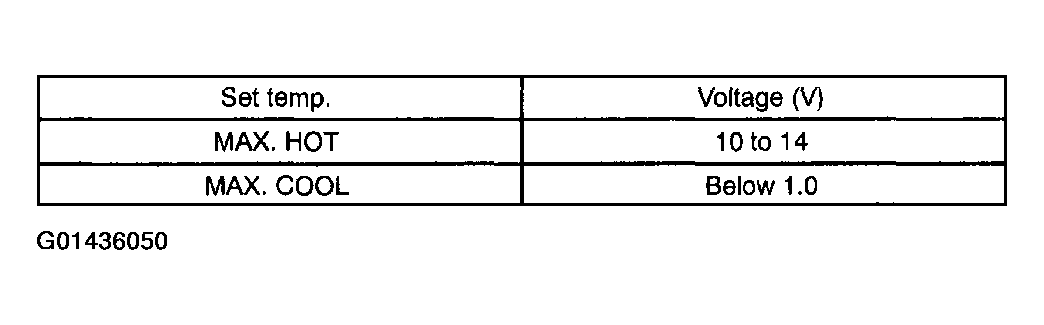

  Voltage

  Fig 5: Voltage Results Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT: When you out voltage measurement, please measure, while a servomotor operates.
3. Measure voltage between terminal AMDC of A/C amplifier and body ground when air mix switch is operated, as shown in the chart.

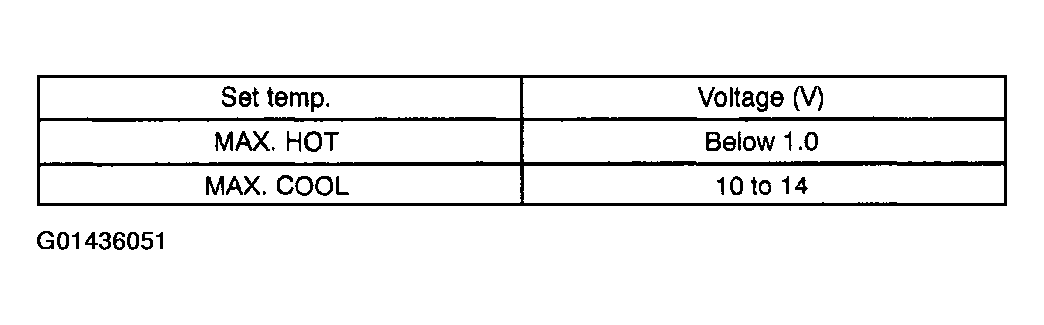

  Voltage

  Fig 6: Voltage Results Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT: When you out voltage measurement, please measure, while a servomotor operates.

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: CHECK AND REPLACE HEATER CONTROL HOUSING SUB-ASSY
