Circuit Description

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

The air inlet control servomotor is controlled by the A/C amplifier and moves the air inlet damper to the desired position.

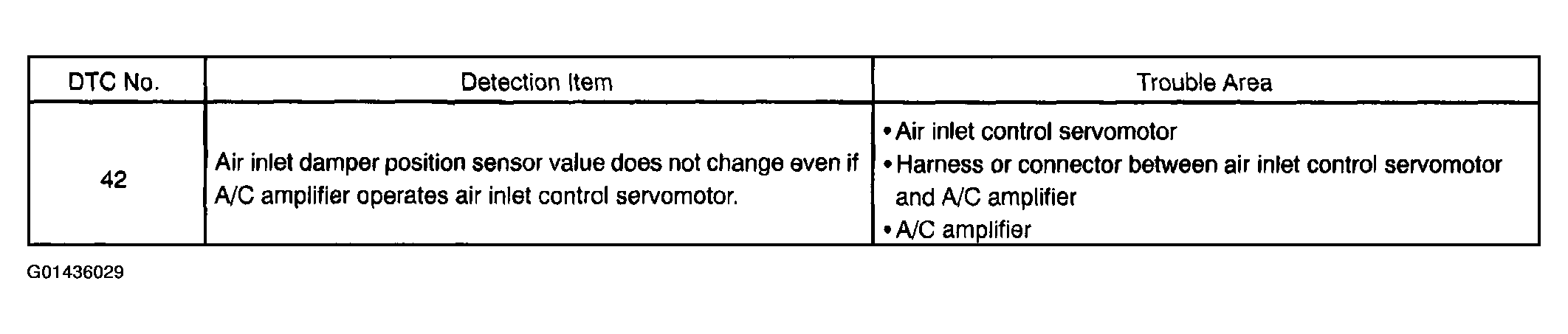

Fig 1: Identifying DTC Detection Item Chart
G01436029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
