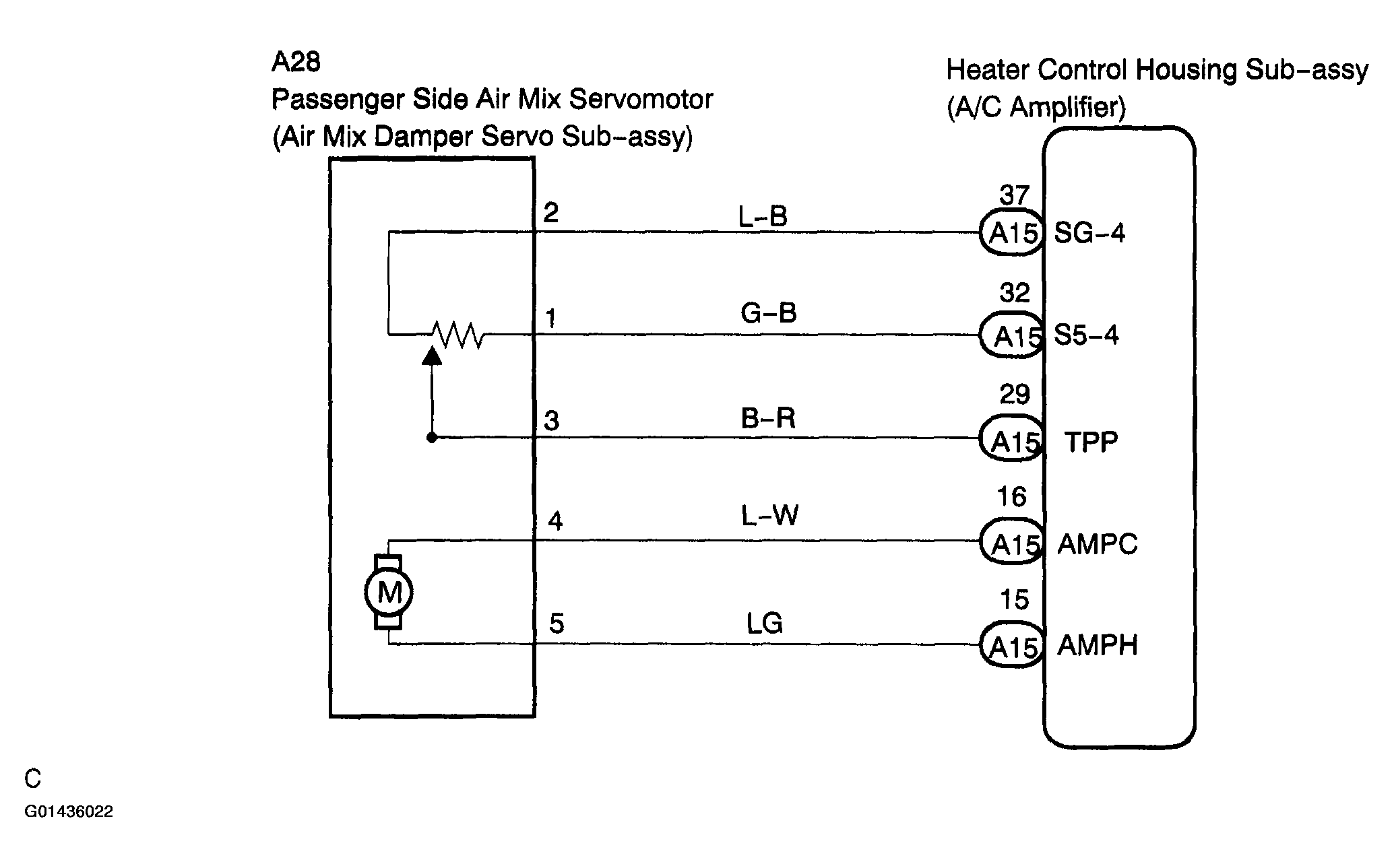

DTC 41: Air Mix Damper Control Servomotor Circuit (Passenger Side): Wiring Diagram

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.
