Circuit Description

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

This air mix damper servo sub-assy is controlled by the A/C amplifier and moves the air mix damper to the desired position.

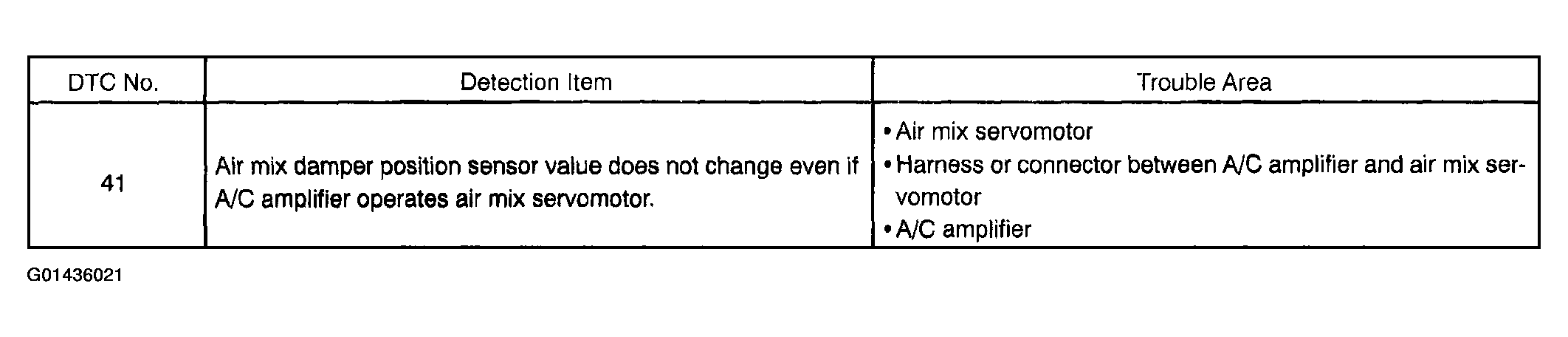

Fig 1: Identifying DTC Detection Item Chart
G01436021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
