Circuit Description

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

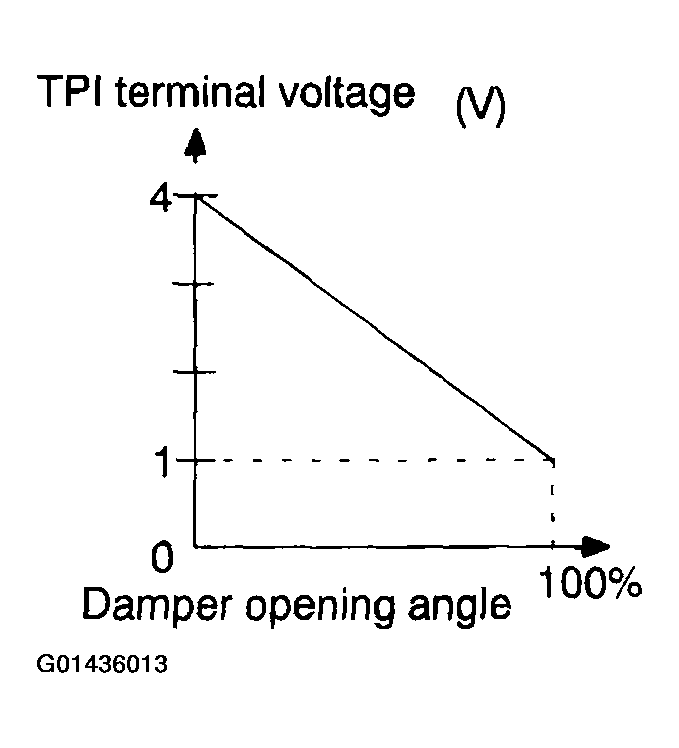

Fig 1: Identifying Graphic Of Damper Opening Angle

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

This sensor detects the position of the air mix damper and sends the appropriate signals to the A/C amplifier. The position sensor is built into the air mix control servomotor (air mix damper servo sub-assy).

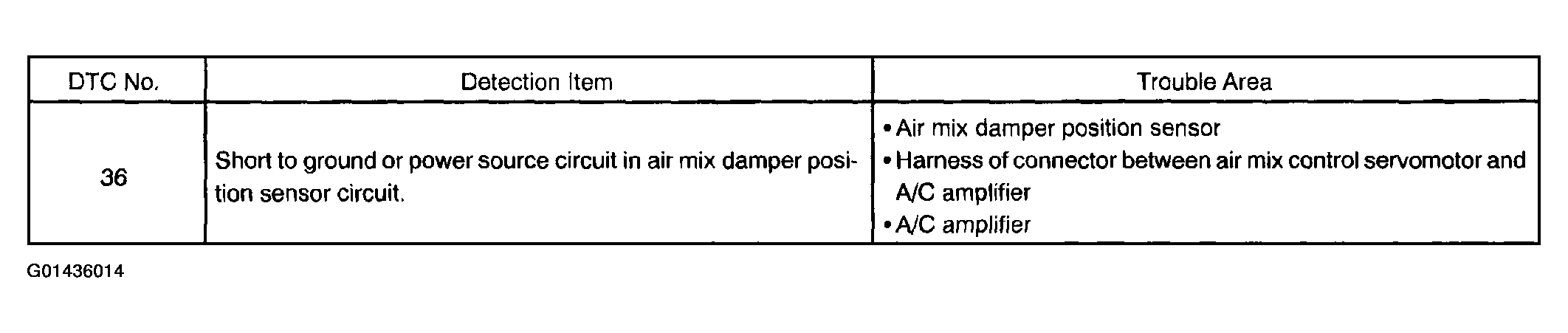

Fig 2: Identifying DTC Detection Item Chart
