Circuit Description
WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

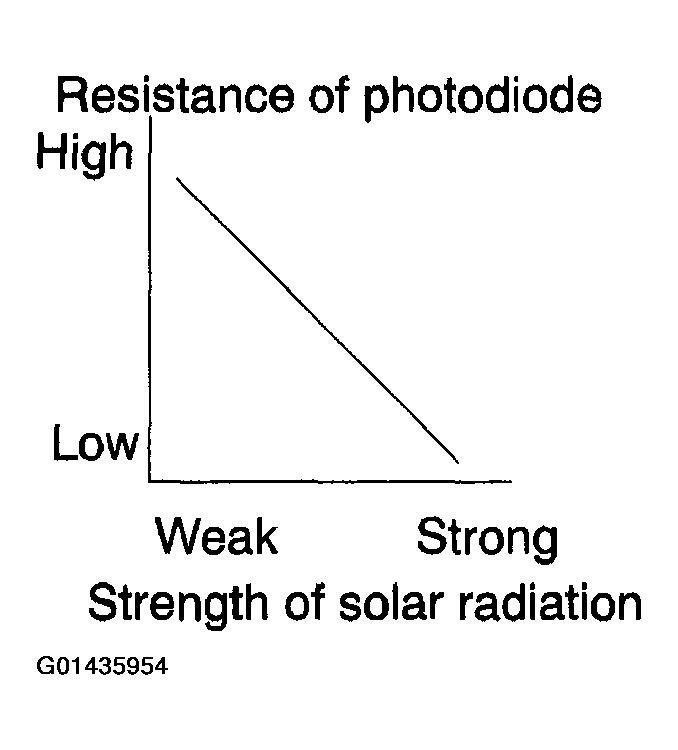

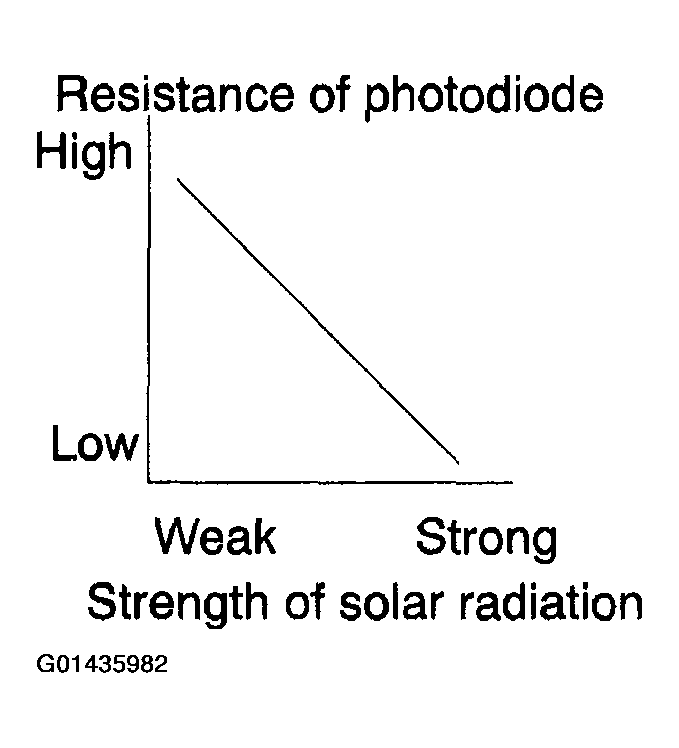

A photo diode in the solar sensor detects solar radiation and sends signals to the A/C amplifier.
The driver side and passenger side is contained in one sensor.
