Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

PERFORM ACTUATOR CHECK
1. Set to actuator check mode (See PRE-CHECK ).
2. Press the blower switch and change to step operation.
3. Check the air flow level by hand.

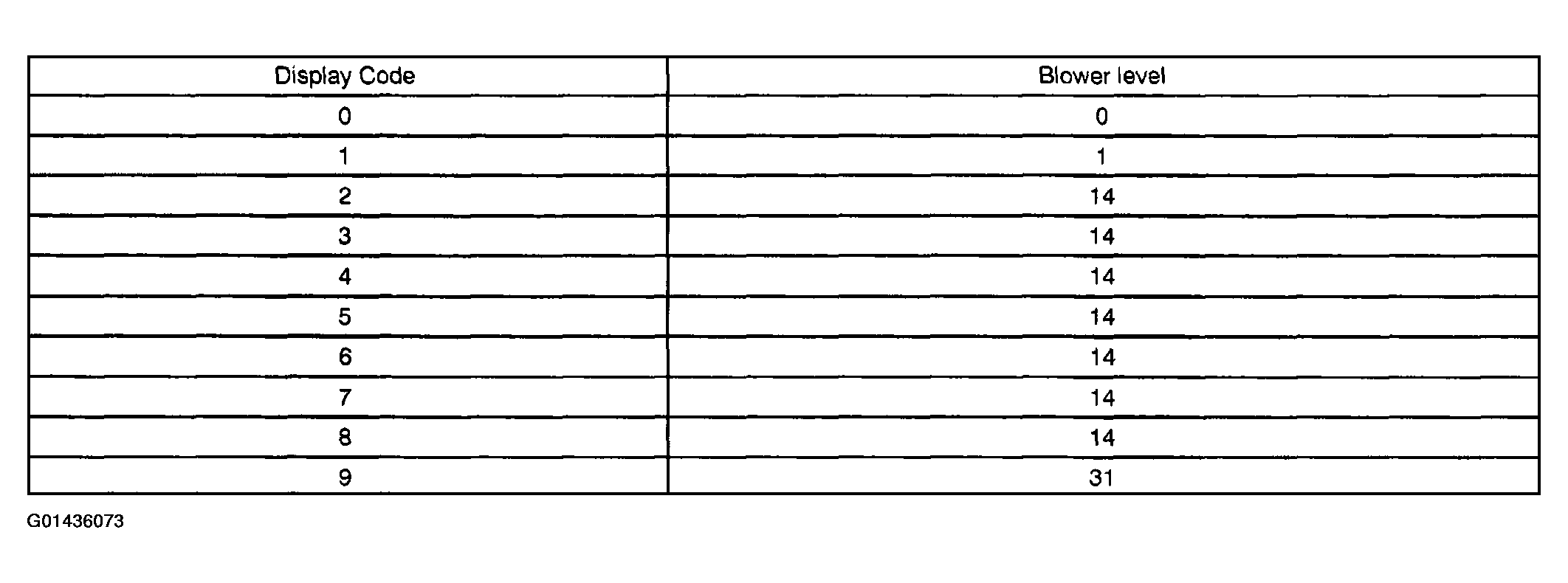

  Fig 1: Code And Blower Level Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE PROBLEM SYMPTOMS TABLE )

NG: Go to next step.
INSPECT BLOWER W/FAN MOTOR SUB-ASSY
1. Remove blower motor.
2. Connect positive (+) lead from the battery to terminal 2 and negative (-) lead to terminal 1.
  Standard: Blower motor operates smoothly.

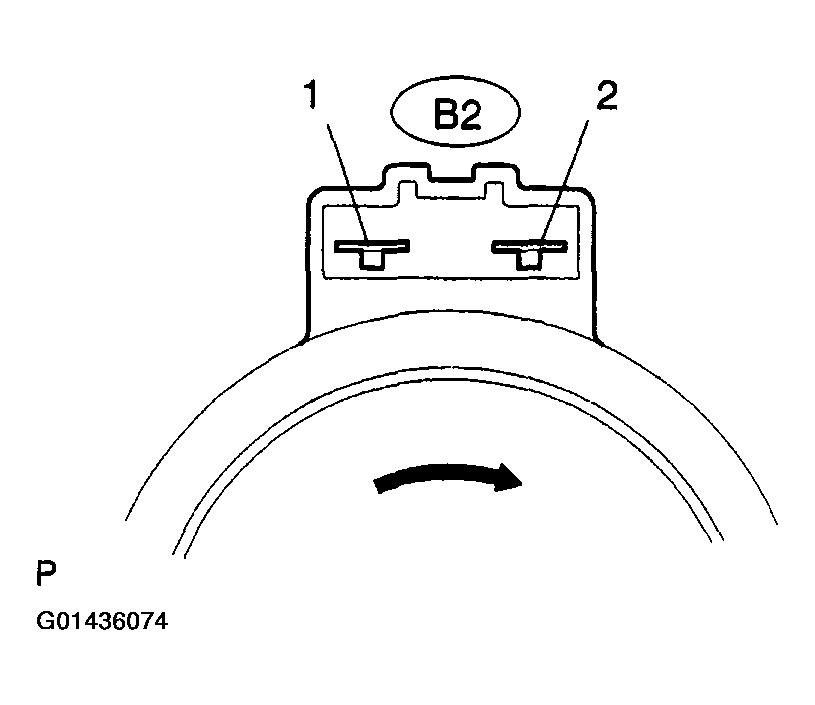

  Fig 2: Inspecting Blower W/Fan Motor Sub-Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPLACE BLOWER W/FAN MOTOR SUB-ASSY

OK: Go to next step.
CHECK HARNESS AND CONNECTOR(BETWEEN BLOWER MOTOR AND BLOWER MOTOR CONTROL)
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step.
CHECK HARNESS AND CONNECTOR(BETWEEN BLOWER MOTOR CONTROL AND BODY GROUND)
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step.
INSPECT HEATER CONTROL HOUSING SUB-ASSY(BLW)
1. Remove A/C amplifier with connector.
2. Ignition switch ON.
3. Blower switch ON.
4. Measure waveform between terminals BLW of A/C amplifier and body ground.

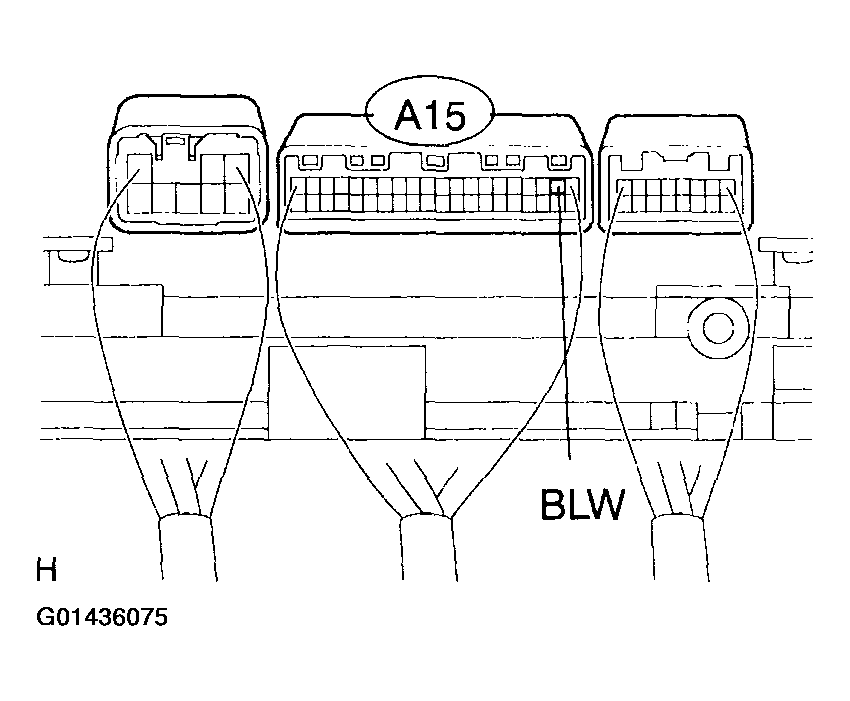

  Fig 3: Measuring Waveform Between Terminals BLW Of A/C Amplifier And Body Ground
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  OK:

  Pulse generation

  Blower level changes waveform
HINT:
- The correct waveform is as shown.

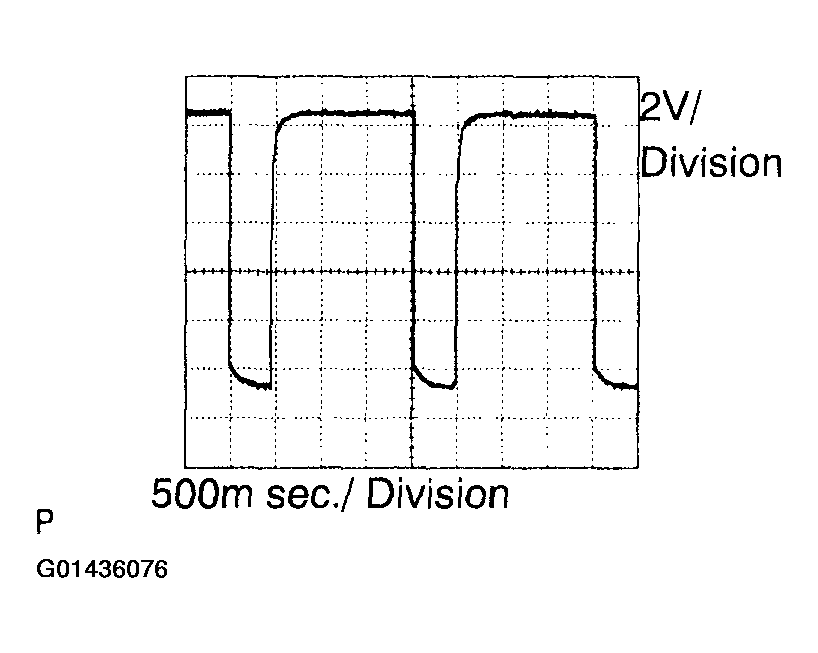

Fig 4: Identifying Graphic Of Waveform
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: CHECK AND REPLACE HEATER CONTROL HOUSING SUB-ASSY

OK: Go to next step.
CHECK HARNESS OR CONNECTOR(BETWEEN HEATER CONTROL HOUSING SUB-ASSY AND BLOWER MOTOR CONTROL)
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE BLOWER MOTOR CONTROL
