Terminals Of ECM

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

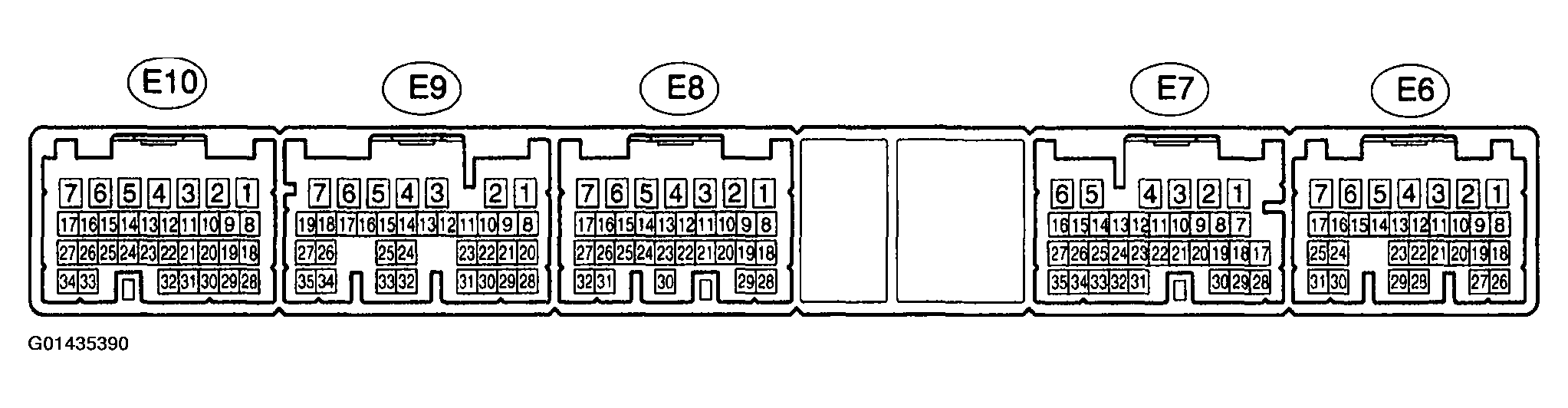

Fig 1: Identifying Terminals Of ECM

G01435390

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Each ECM terminal's standard voltage is shown in the figure Fig 2 below.

In the table, first follow the information under "Condition". Lock under "Symbols (Terminal No.)" for the terminals to inspected. The standard voltage between the terminals is shown under "Specific Condition".

Use the illustration above as a reference for the ECM terminals.

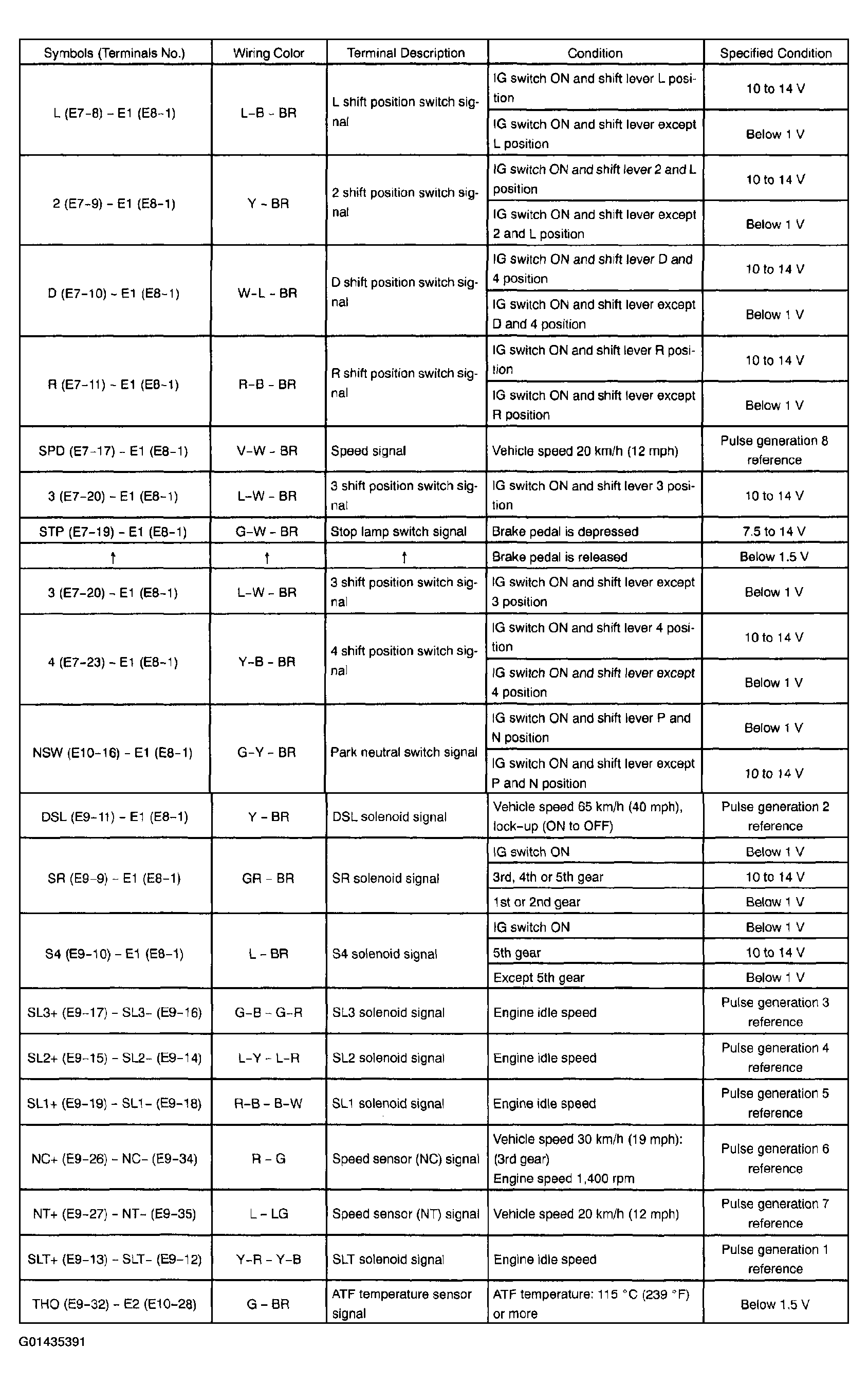

Fig 2: ECM Terminals Reference Chart

G01435391

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pulse generation

Reference:

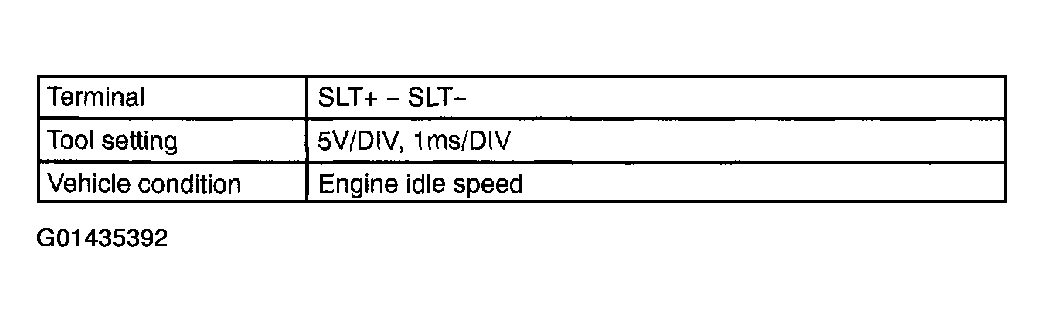

Fig 3: Terminal Reference Chart

G01435392

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Graphic Of Pulse generation

G01435393

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pulse generation

Reference:

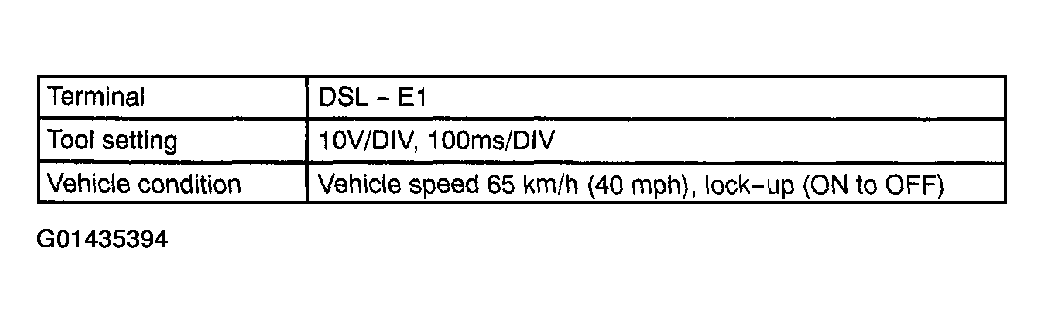

Fig 5: Terminal Reference Chart

G01435394

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

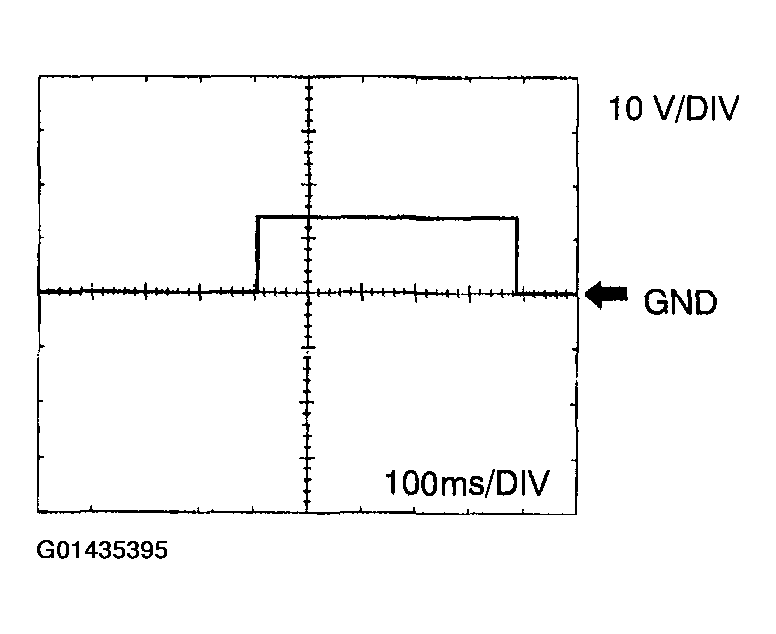

Fig 6: Identifying Graphic Of Pulse generation

G01435395

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pulse generation 3

Reference:

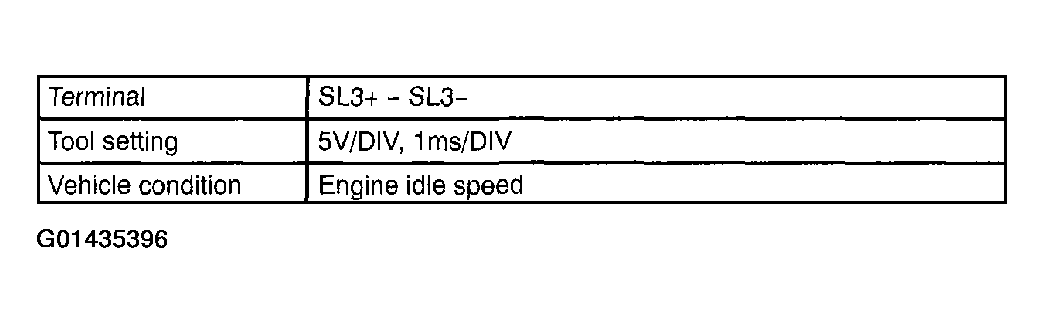

Fig 7: Terminal Reference Chart

G01435396

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

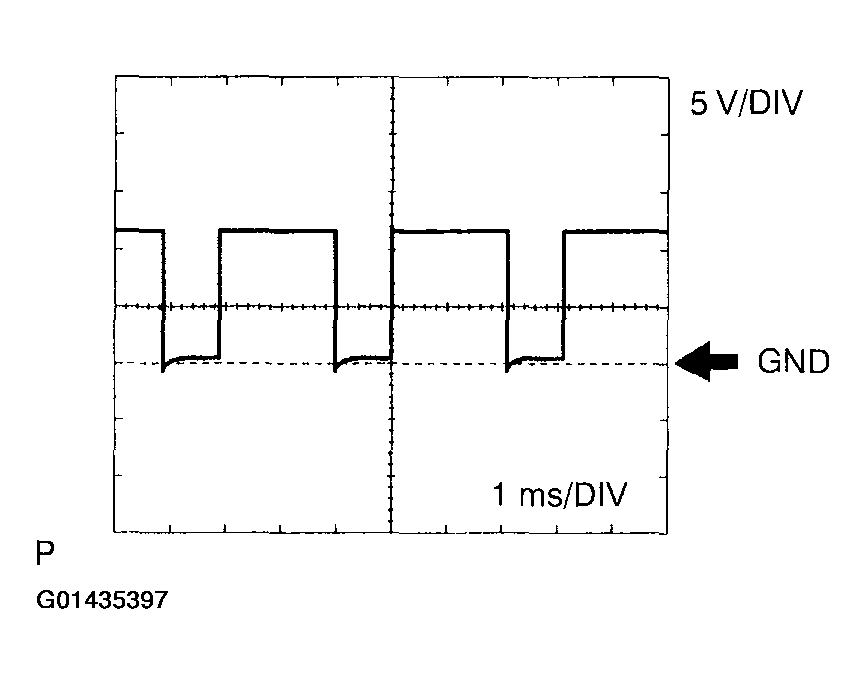

Fig 8: Identifying Graphic Of Pulse Generation

G01435397

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pulse generation 4

Reference:

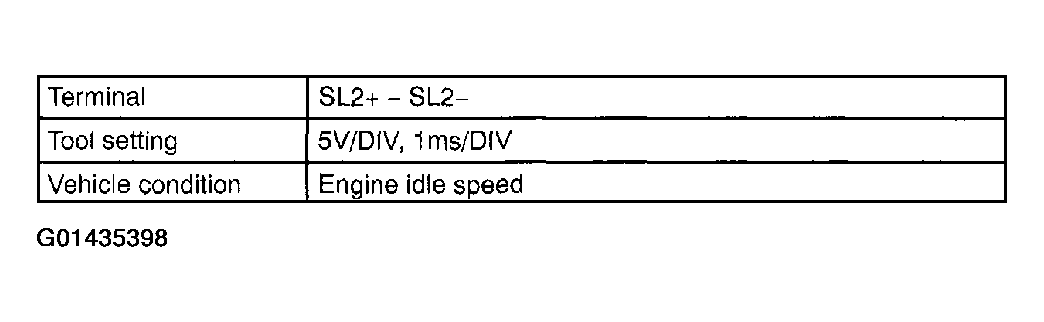

Fig 9: Terminal Reference Chart

G01435398

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

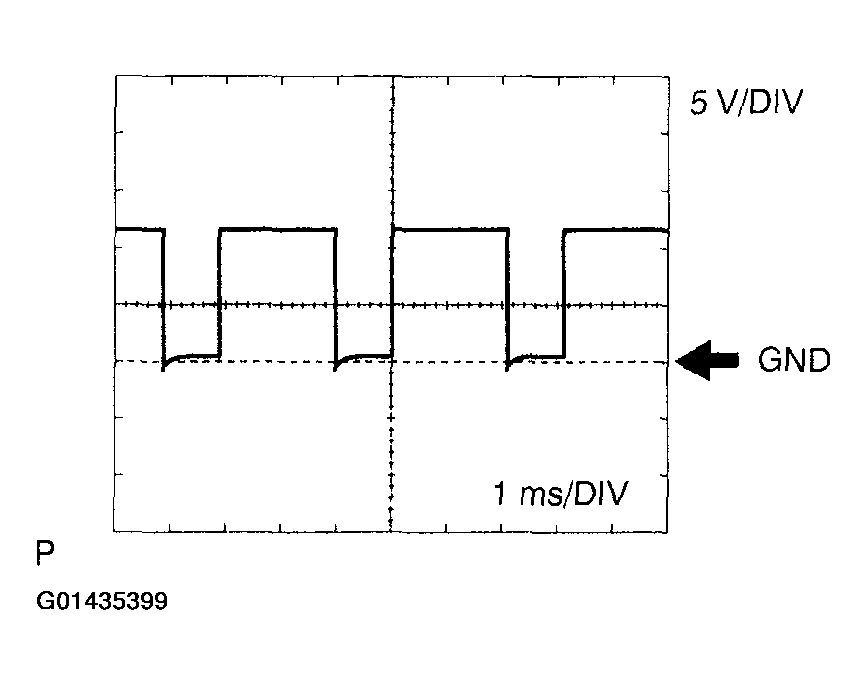

Fig 10: Identifying Graphic Of Pulse Generation

G01435399

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pulse generation 5

Reference:

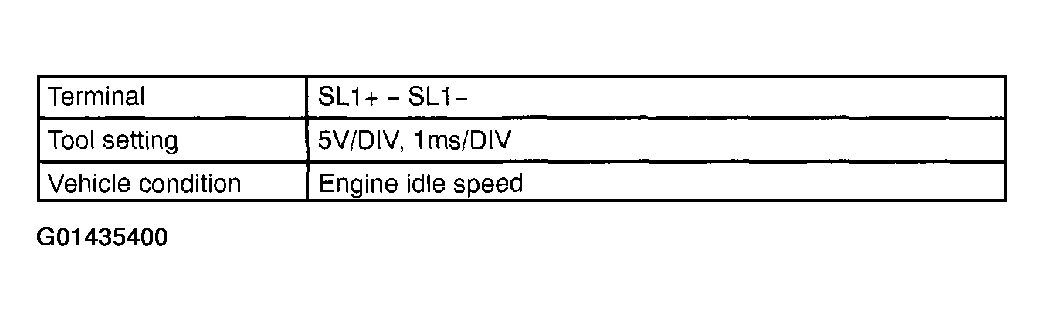

Fig 11: Terminal Reference Chart

G01435400

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

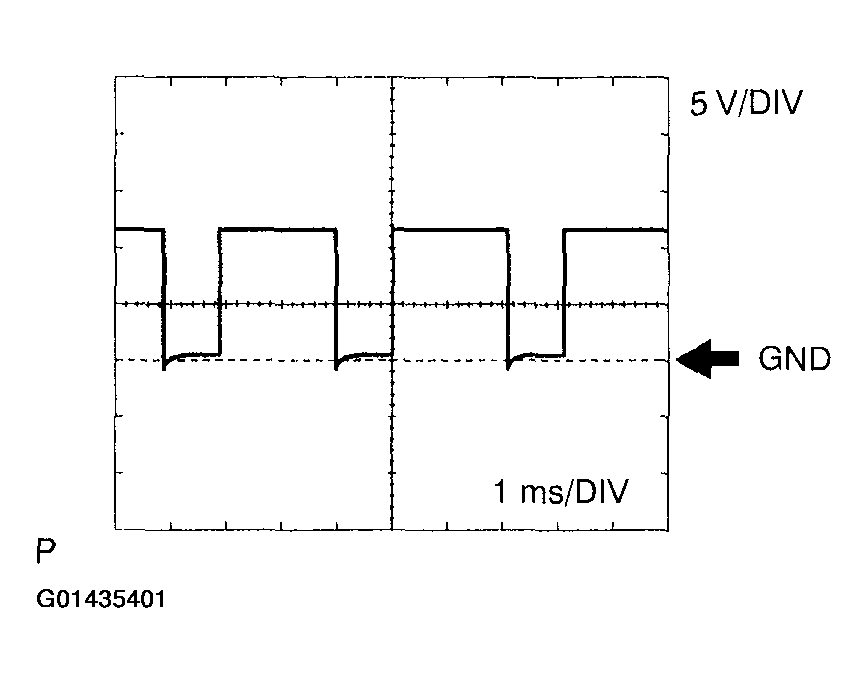

Fig 12: Identifying Graphic Of Pulse Generation

G01435401

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pulse generation 6

Reference:

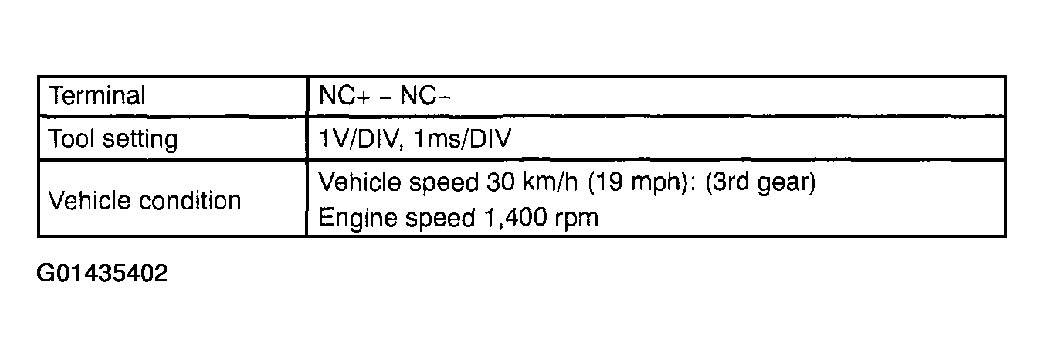

Fig 13: Terminal Reference Chart

G01435402

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

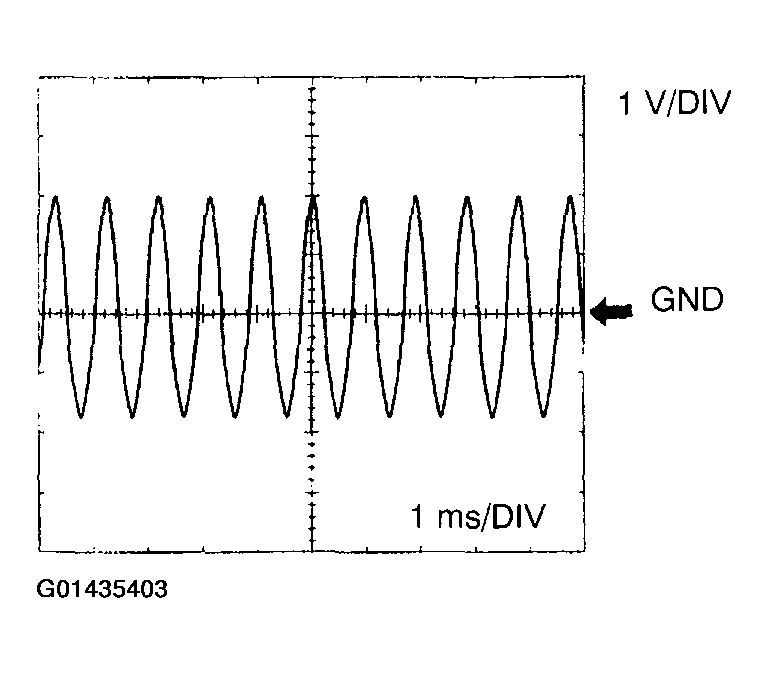

Fig 14: Identifying Graphic Of Pulse Generation

G01435403

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pulse generation 7

Reference:

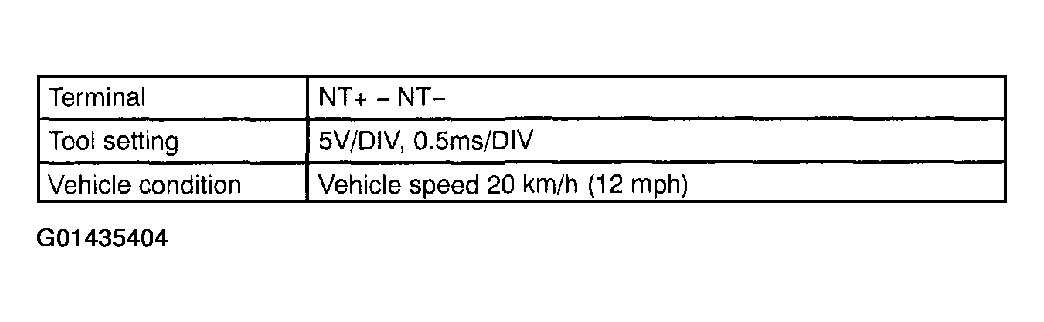

Fig 15: Terminal Reference Chart

G01435404

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

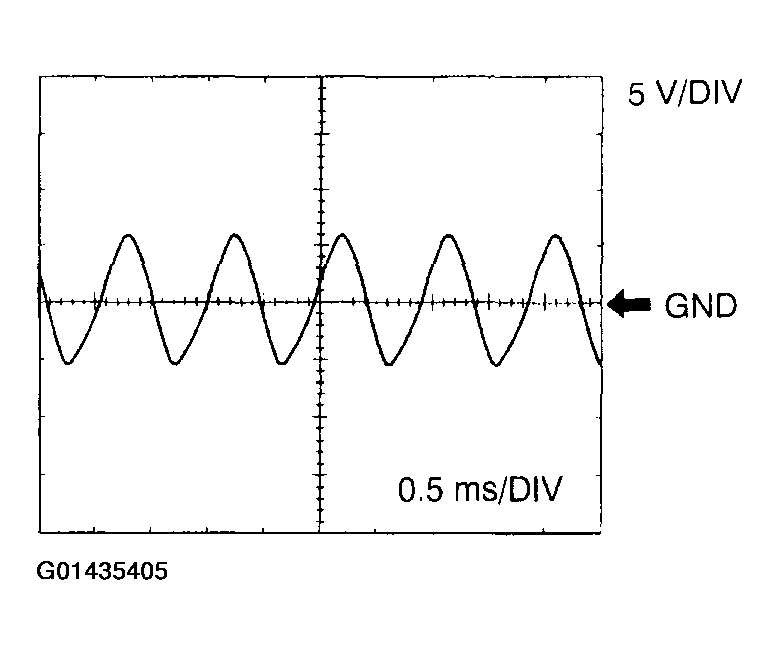

Fig 16: Identifying Graphic Of Pulse Generation

G01435405

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pulse generation 8

Reference:

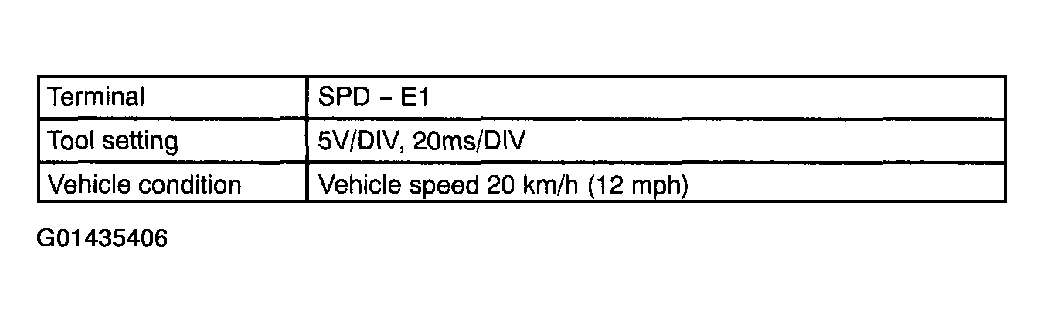

Fig 17: Terminal Reference Chart

G01435406

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

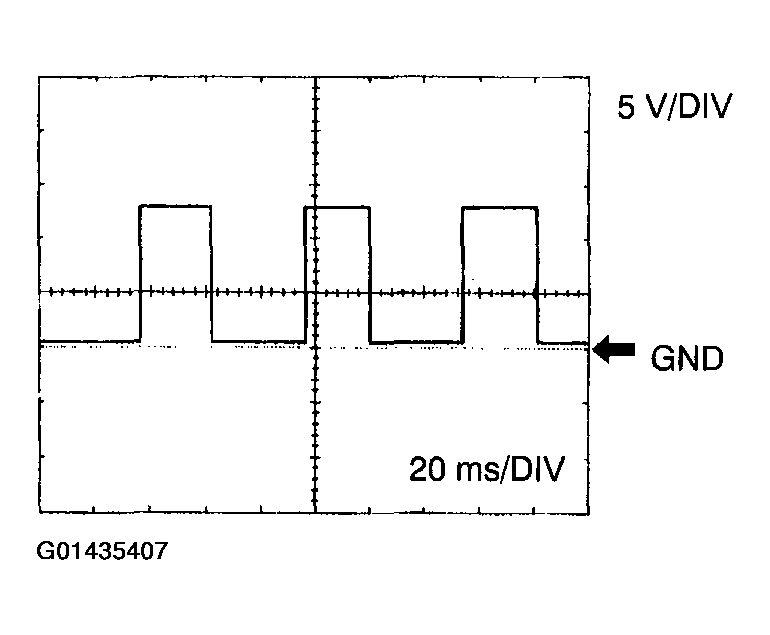

Fig 18: Identifying Graphic Of Pulse Generation

G01435407

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
