System Diagram
WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

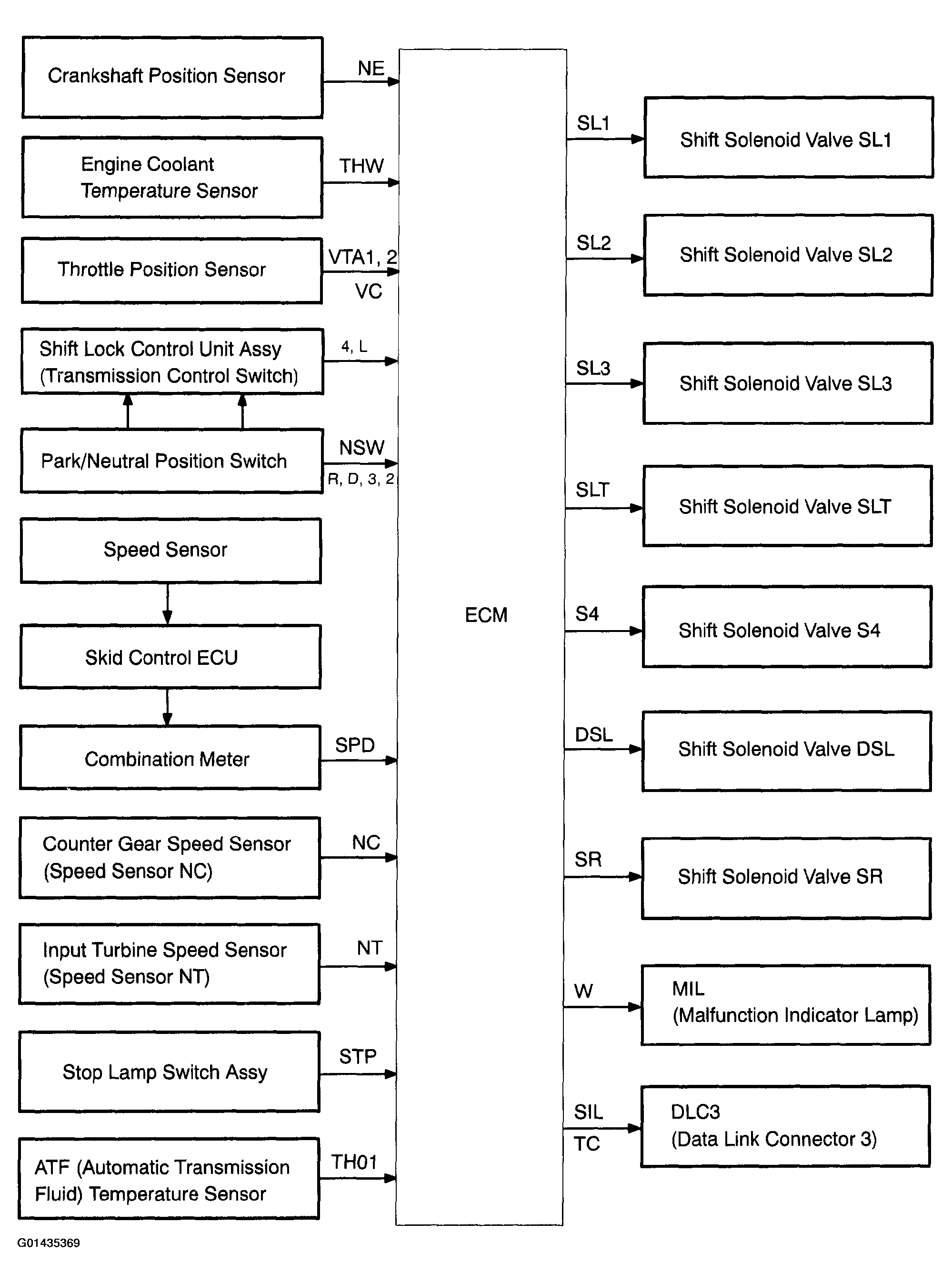

The configuration of the electronic control system in the U151E automatic transaxles is as shown in the following chart.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
