Typical Malfunction Thresholds

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

P2769: Range check (Low resistance)

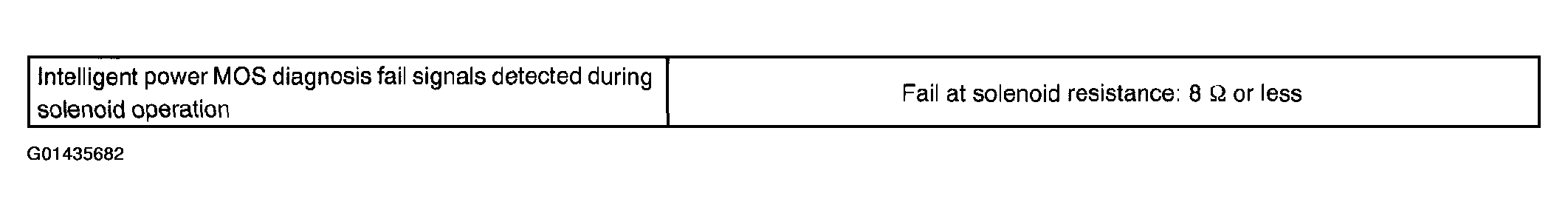

Fig 1: Identifying Typical Malfunction Thresholds Chart (P2769: Range Check (Low Resistance))
G01435682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

P2770: Range check (High resistance)

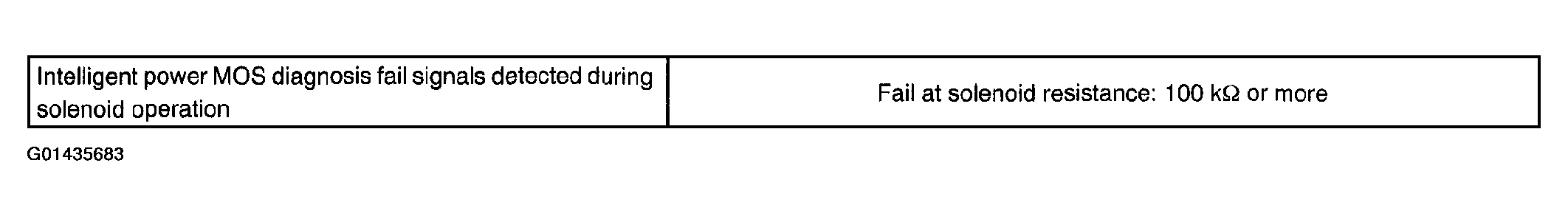

Fig 2: Identifying Typical Malfunction Thresholds Chart (P2770: Range Check (High Resistance))
G01435683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
