INSPECT TRANSMISSION WIRE (DSL)
1. Disconnect the transmission wire connector from the transaxle.
2. Measure the resistance according to the value(s) in the figure Fig 1 below.
  Standard

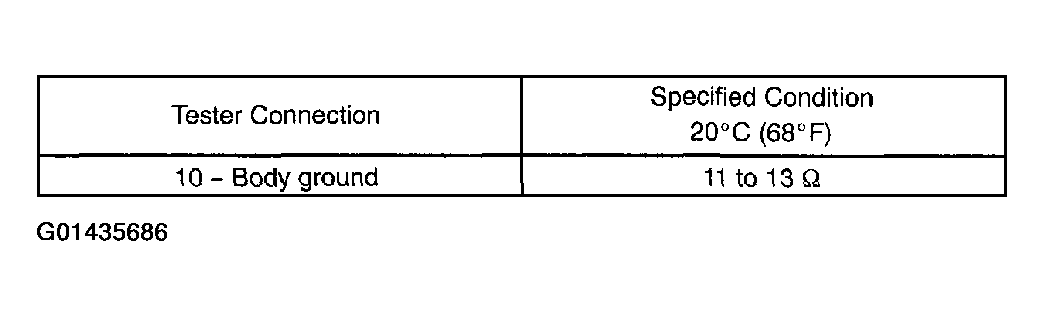

  Fig 1: Identifying Tester Connection Specified Condition Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

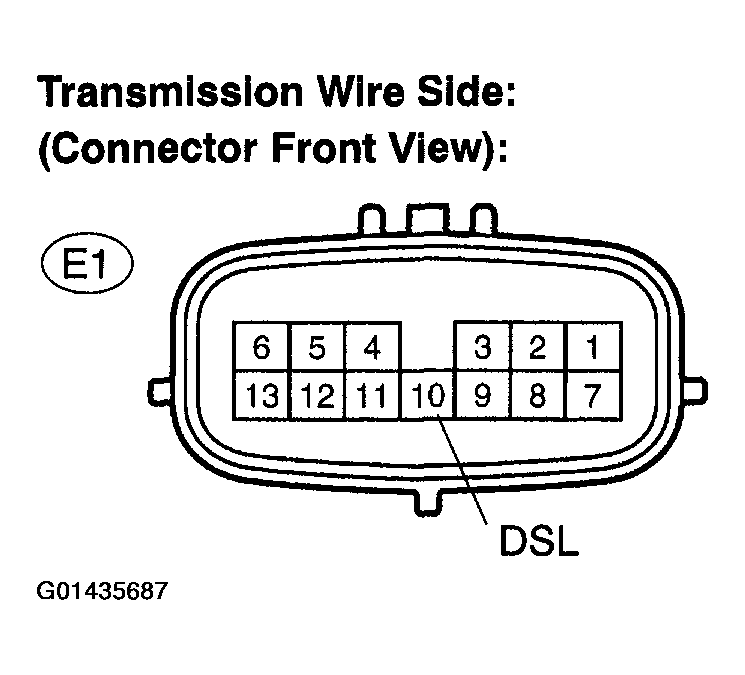

  Fig 2: Measuring Resistance
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: Go to step 3

OK: Go to next step.
CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - ECM)
1. Connect the transmission wire connector.
2. Disconnect the ECM connector.
3. Measure the resistance according to the value(s) in the figure Fig 3 below.
  Standard

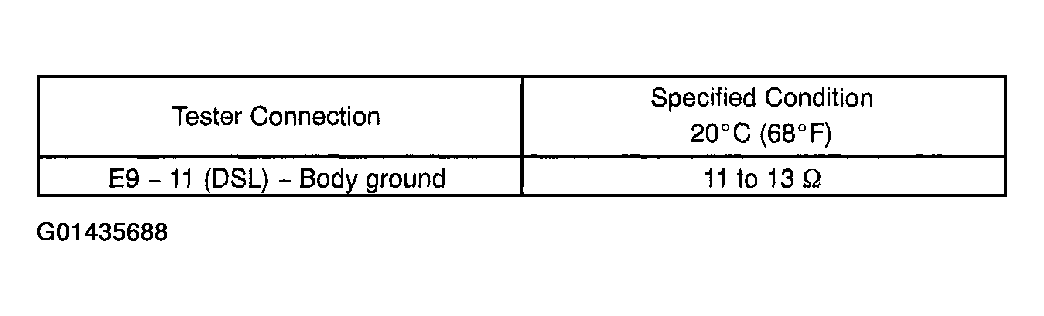

  Fig 3: Identifying Tester Connection Specified Condition Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

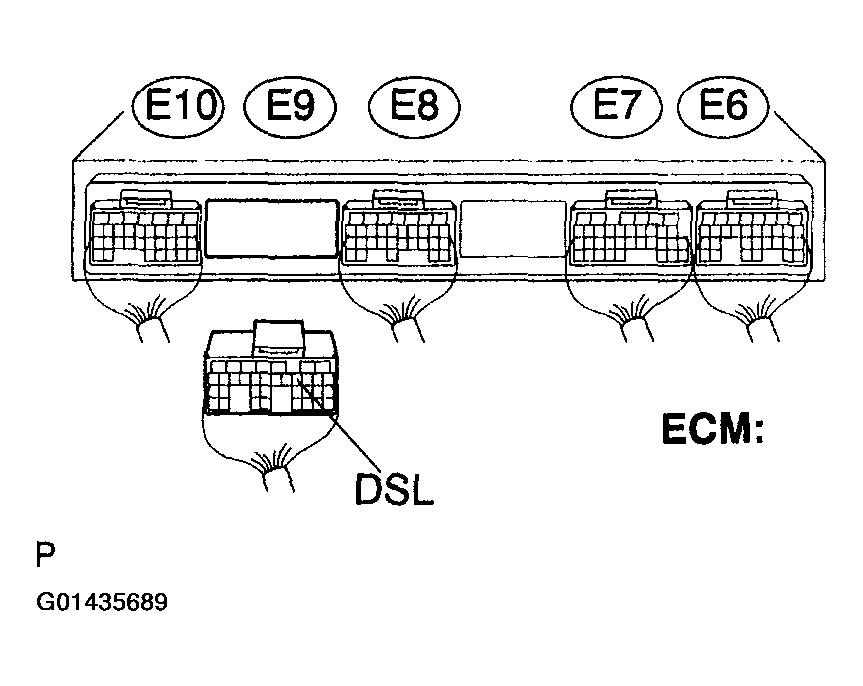

  Fig 4: Measuring Resistance
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (SEE ELECTRONIC CIRCUIT INSPECTION PROCEDURE )

OK: REPLACE ECM (SEE ECM (3MZ-FE) )
INSPECT SHIFT SOLENOID VALVE (DSL)
1. Remove the shift solenoid valve DSL.
2. Measure the resistance according to the value(s) in the figure Fig 5 below.
  Standard

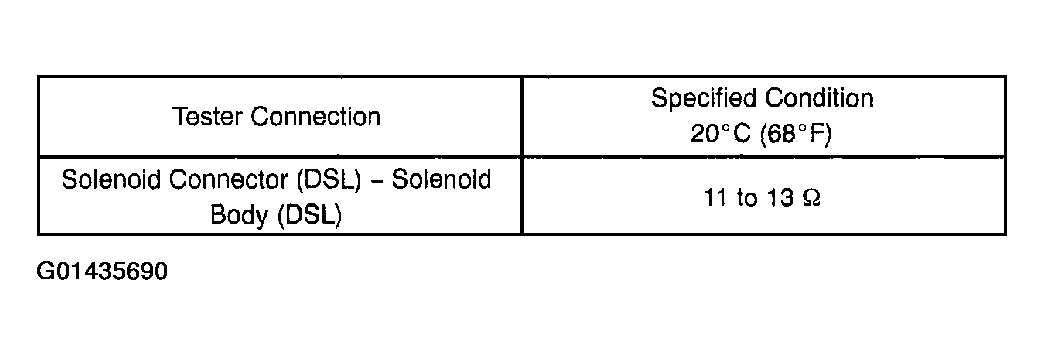

  Fig 5: Identifying Tester Connection Specified Condition Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

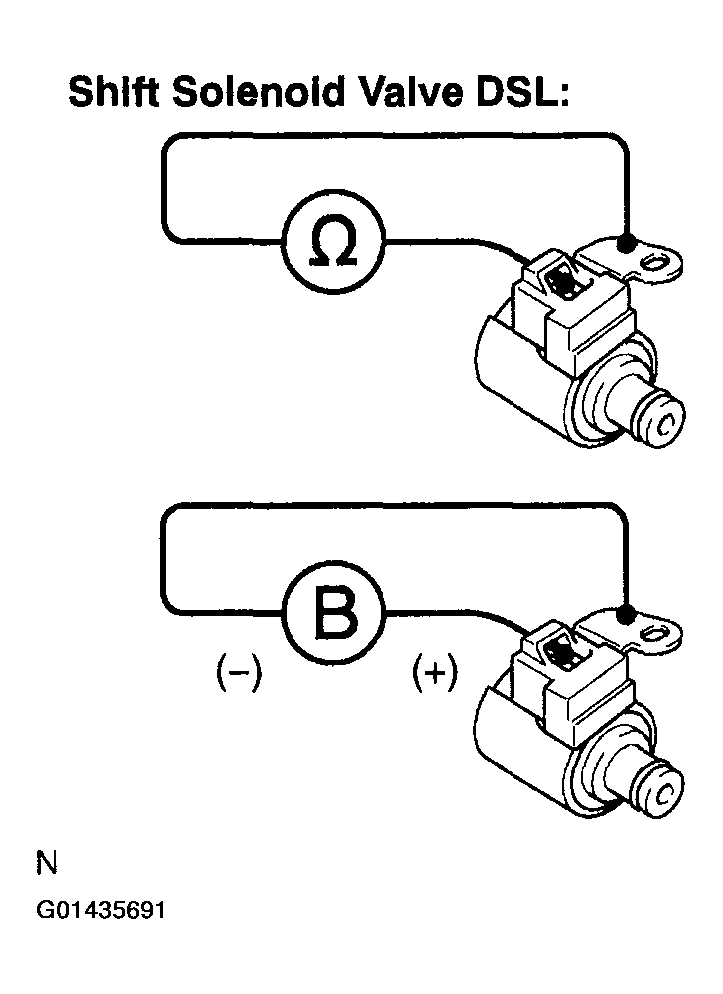

  Fig 6: Measuring Resistance
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect positive (+) lead to the terminal of solenoid connector, negative (-) lead to the solenoid body.
  Standard:

  The solenoid valve makes an operating noise.
NG: REPLACE SHIFT SOLENOID VALVE (DSL)

OK: REPAIR OR REPLACE TRANSMISSION WIRE (SEE TRANSMISSION WIRE (U151E) )
