Typical Malfunction Thresholds

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

Either of the following conditions is met:

OFF malfunction (A) and (B), or ON malfunctions (A), (B) and (C)

It is necessary 2 detections/one driving cycle

1st detection; temporary flag ON

2nd detection; pending fault code ON

OFF malfunction (A)

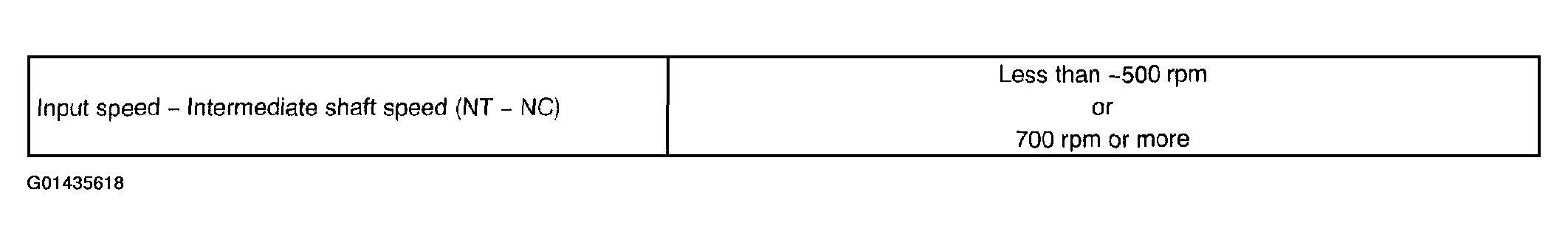

Fig 1: Identifying Typical Malfunction Thresholds Chart (Off Malfunction (A))

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OFF malfunction (B)

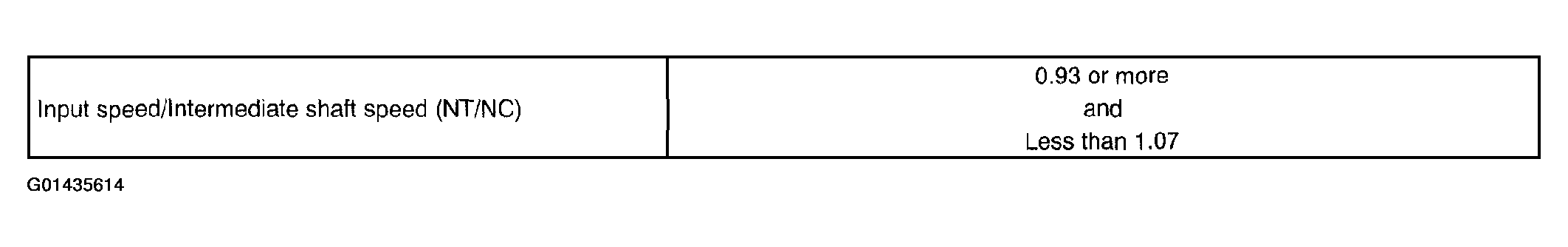

Fig 2: Identifying Typical Malfunction Thresholds Chart (Off Malfunction (B))

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ON malfunction (A)

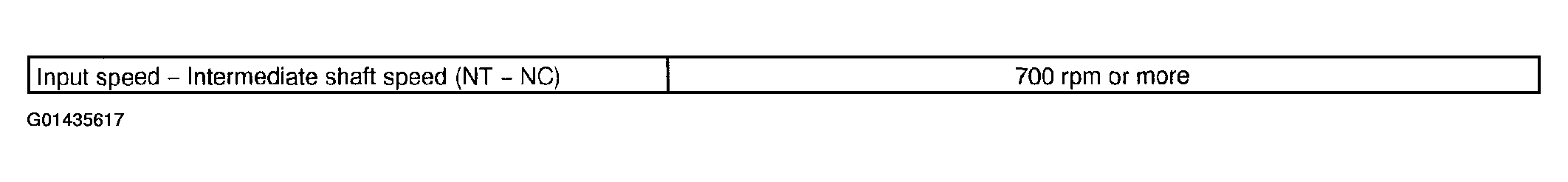

Fig 3: Identifying Typical Malfunction Thresholds Chart (On Malfunction (A))

ON malfunction (B)

Fig 4: Identifying Typical Malfunction Thresholds Chart (On Malfunction (B))

ON malfunction (C)

Fig 5: Identifying Typical Malfunction Thresholds Chart (On Malfunction (C))
