Typical Enabling Conditions

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

The following items are common to all condition below.

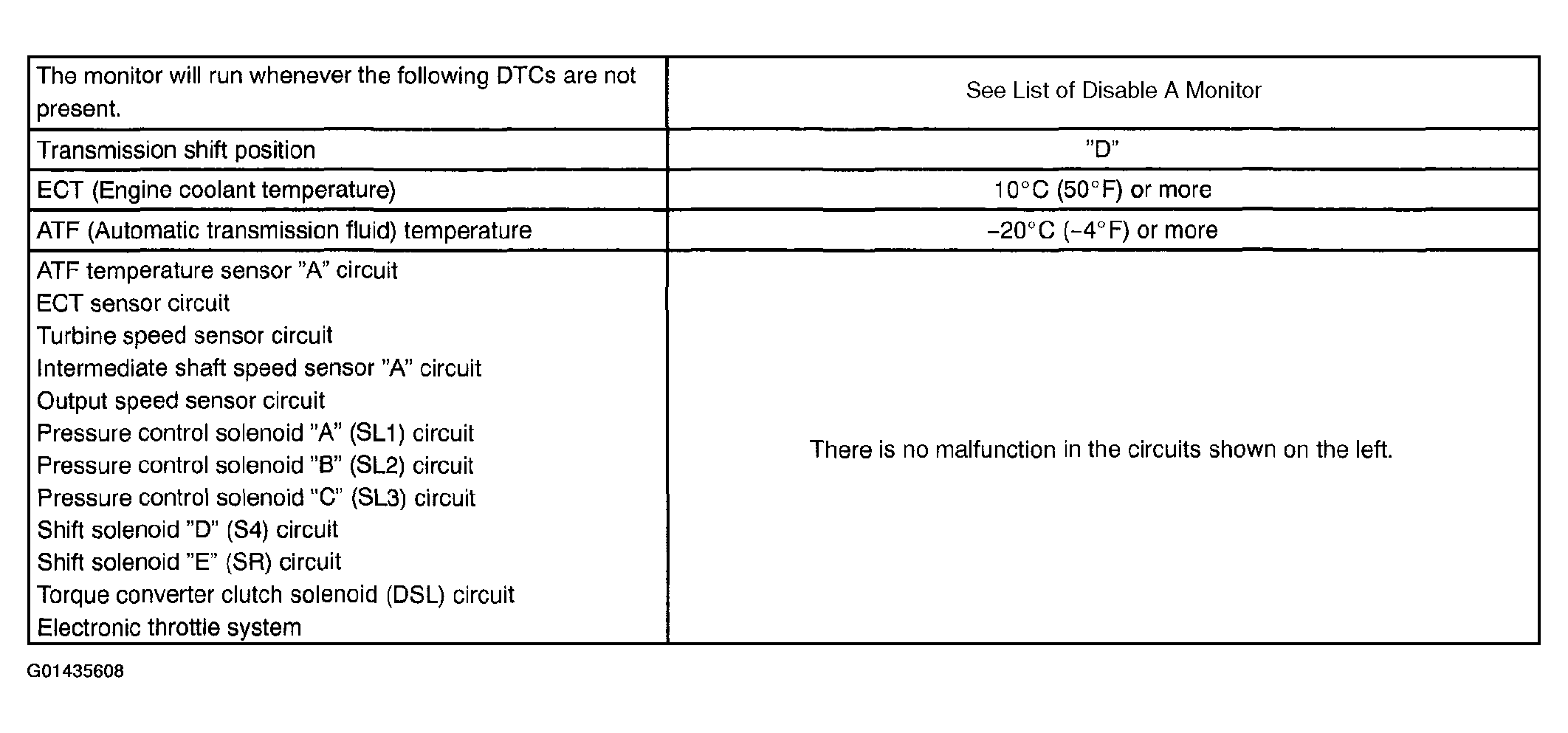

Fig 1: Identifying Typical Enabling Conditions Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

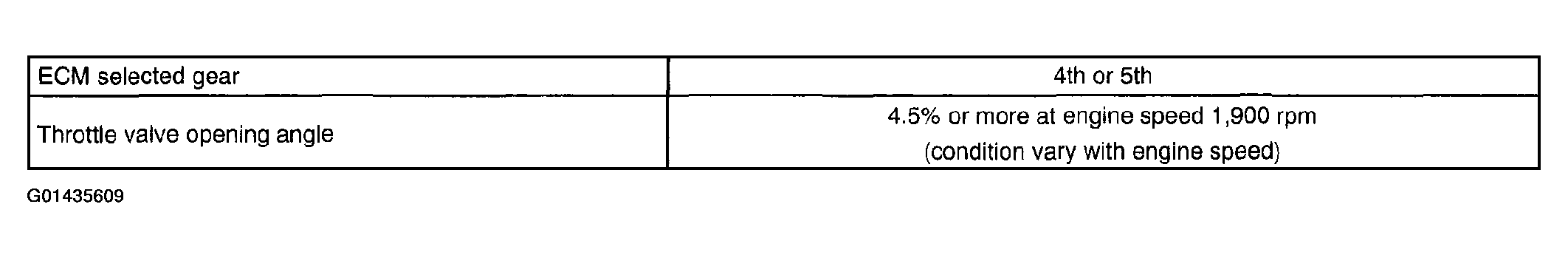

OFF malfunction (A)

Fig 2: Identifying Typical Enabling Conditions Chart (Off Malfunction (A))

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

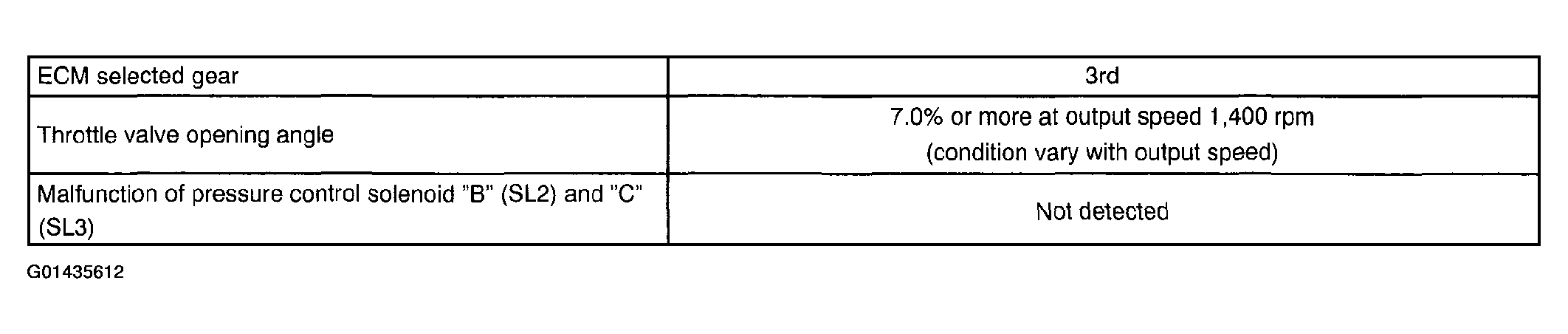

OFF malfunction (B)

Fig 3: Identifying Typical Enabling Conditions Chart (Off Malfunction (B))

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

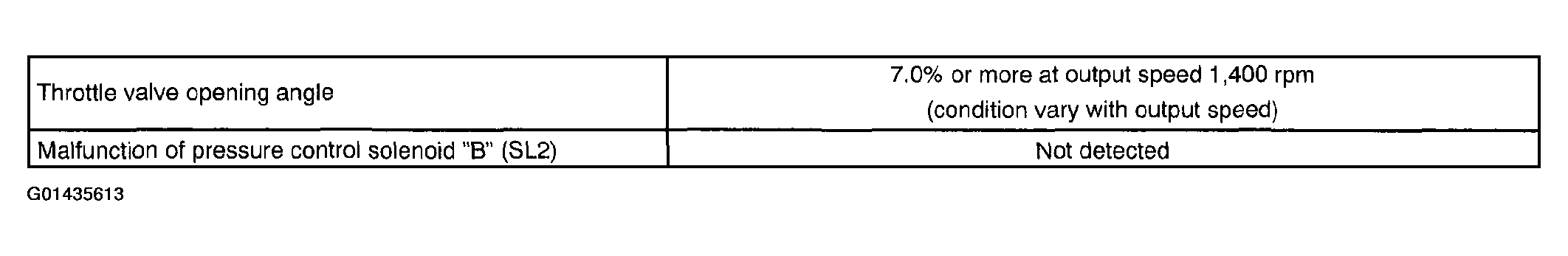

ON malfunction (A)

Fig 4: Identifying Typical Enabling Conditions Chart (On Malfunction (A))

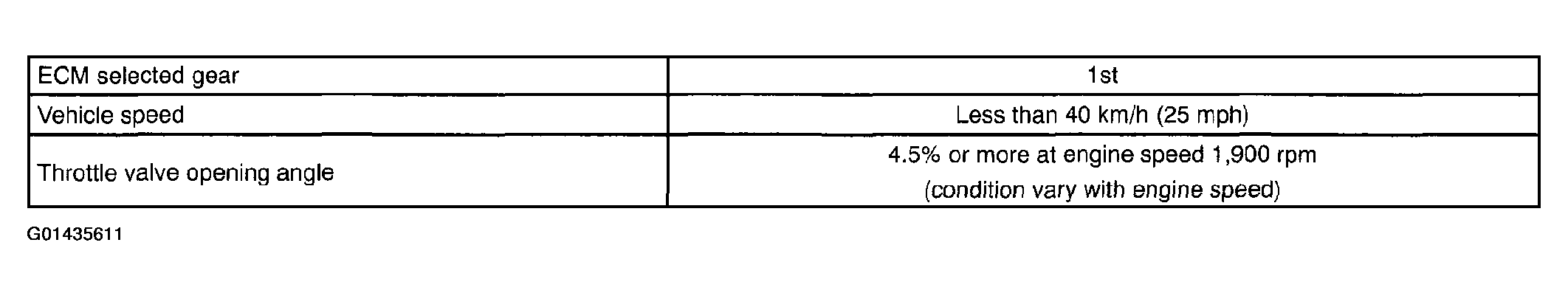

ON malfunction (B)

Fig 5: Identifying Typical Enabling Conditions Chart (On Malfunction (B))

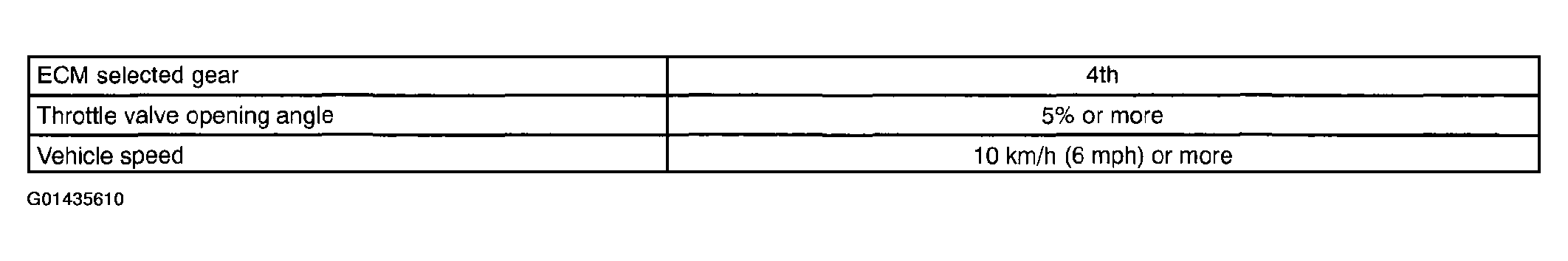

ON malfunction (C)

Fig 6: Identifying Typical Enabling Conditions Chart (On Malfunction (C))
