INSPECT TRANSMISSION WIRE (SL2)
1. Disconnect the transmission wire connector from the transaxle.
2. Measure the resistance according to the value(s) in the figure Fig 1 below.
  Standard

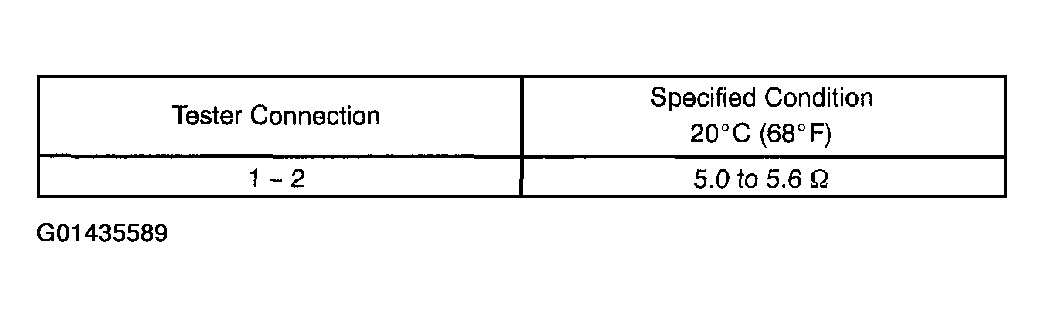

  Fig 1: Identifying Tester Connection Specified Condition Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

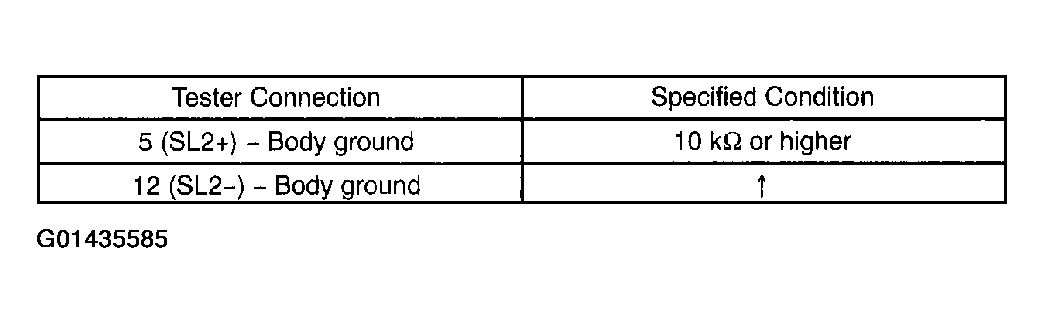

  Fig 2: Identifying Tester Connection Specified Condition Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance according to the value(s) in the figure Fig 3 below.
  OK:

  Standard (Check for short):

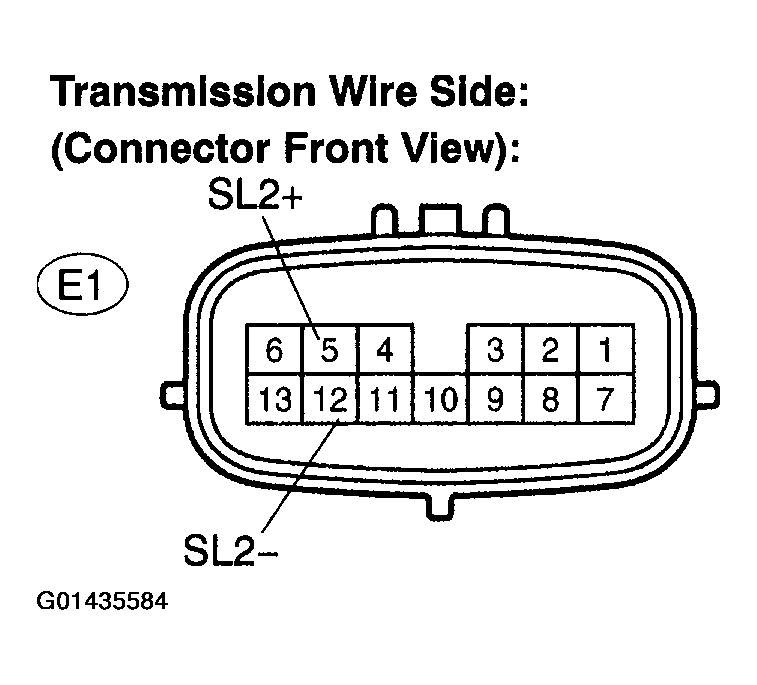

  Fig 3: Measuring Resistance
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: Go to step 3

OK: Go to next step.
CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - ECM)
1. Connect the transmission connector to the transaxle.
2. Disconnect the connector from the ECM.
3. Measure the resistance according to the value(s) in the figure Fig 4 below.
  Standard

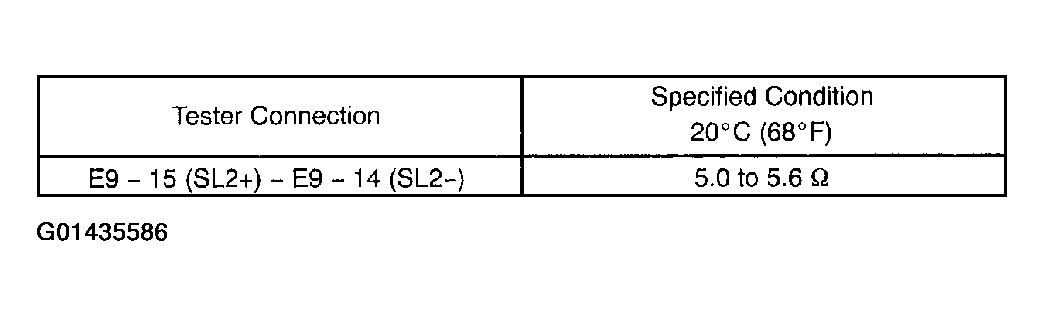

  Fig 4: Identifying Tester Connection Specified Condition Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

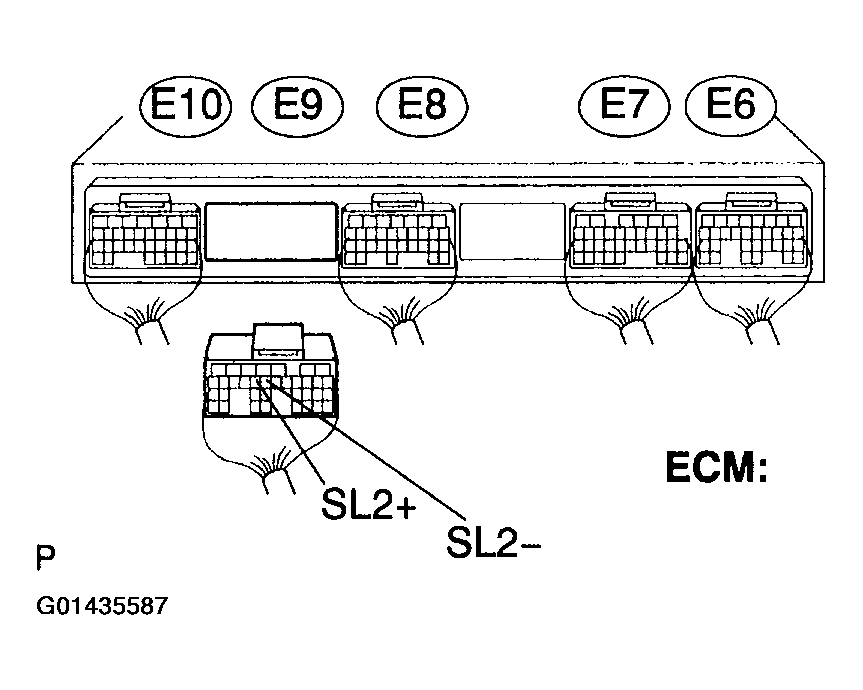

  Fig 5: Identifying Tester Connection Specified Condition Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Measure the resistance according to the value(s) in the figure Fig 6 below.
  OK:

  Standard (Check for short):

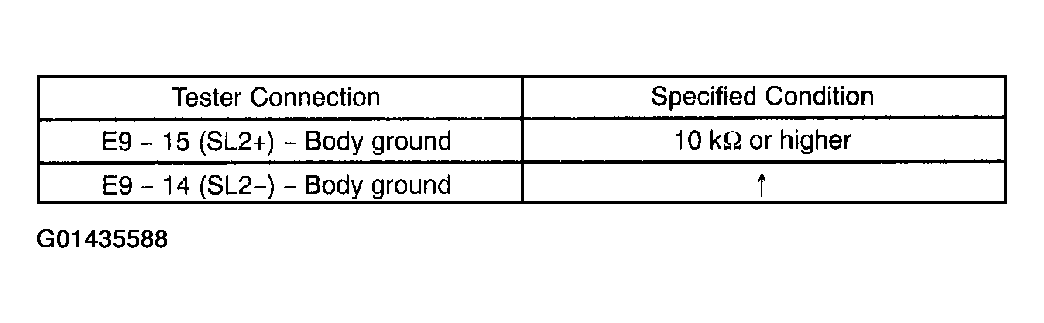

  Fig 6: Measuring Resistance
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (SEE ELECTRONIC CIRCUIT INSPECTION PROCEDURE )

OK: REPLACE ECM (SEE ECM (3MZ-FE) )
INSPECT SHIFT SOLENOID VALVE (SL2)
1. Remove the shift solenoid valve SL2.
2. Measure the resistance according to the value(s) in the figure Fig 7 below.
  Standard

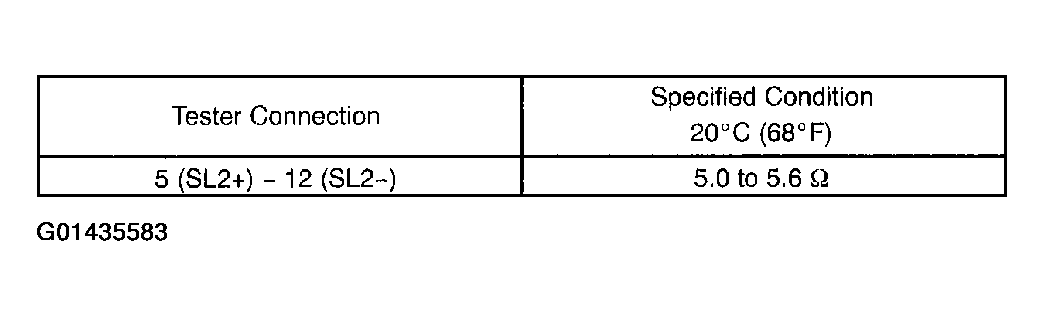

  Fig 7: Identifying Tester Connection Specified Condition Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

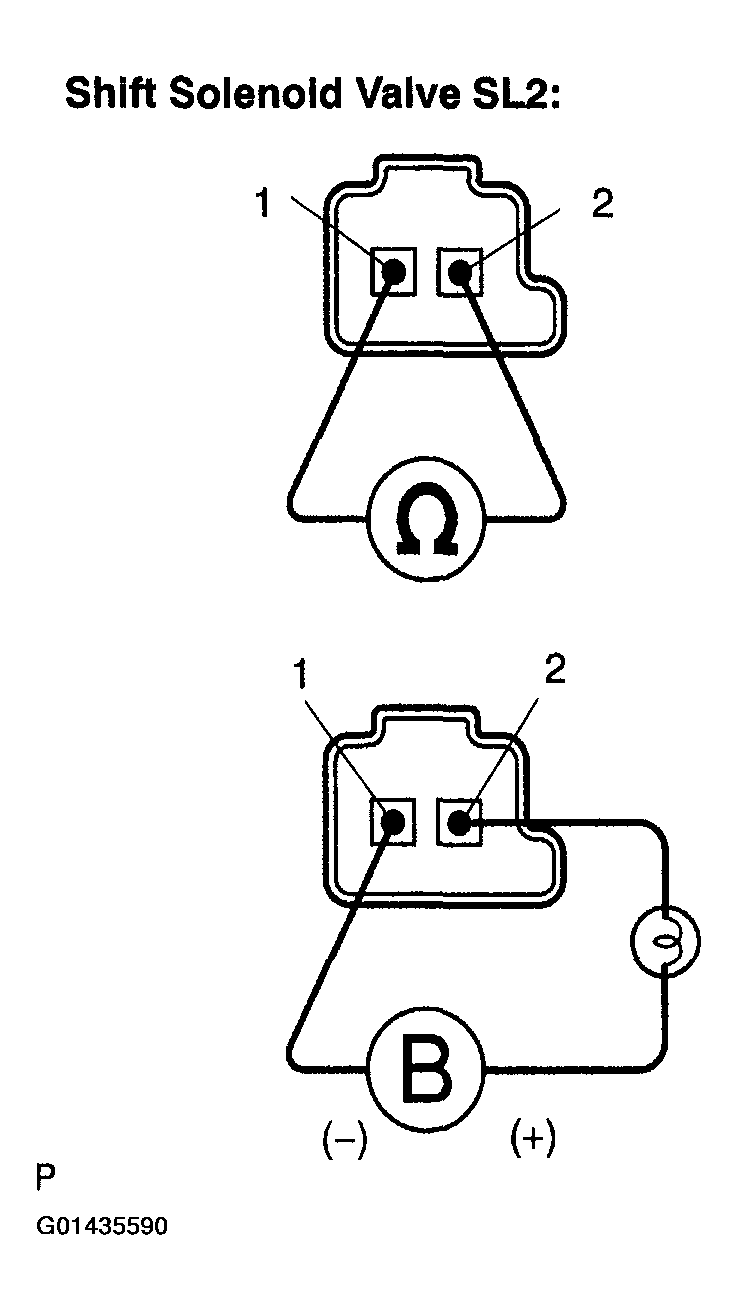

  Fig 8: Measuring Resistance
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the valve.
  Standard:

  The solenoid makes an operating noise.
NG: REPLACE SHIFT SOLENOID VALVE (SL2)

OK: REPAIR OR REPLACE TRANSMISSION WIRE (SEE TRANSMISSION WIRE (U151E) )
