Typical Malfunction Thresholds

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

Either of the following conditions is met:

OFF malfunction (A), (B), (C) and (D), or ON malfunction (A), (B) and (C)

OFF malfunction (A)

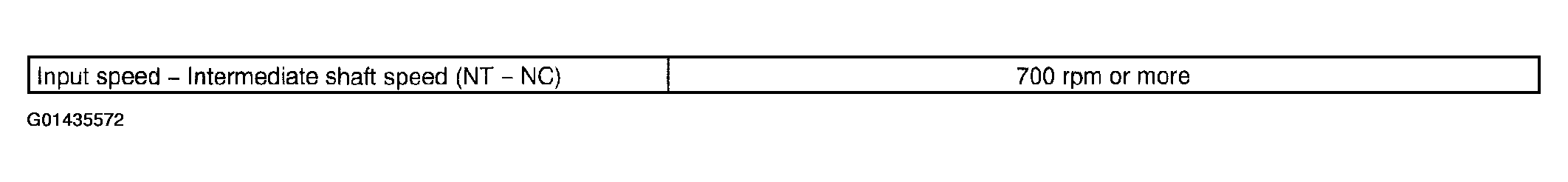

Fig 1: Identifying Typical Enabling Conditions Chart (Off Malfunction (A))

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OFF malfunction (B)

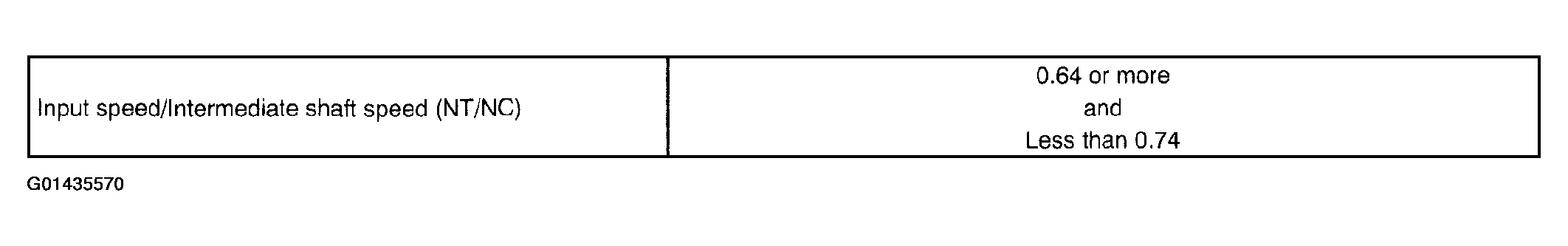

Fig 2: Identifying Typical Enabling Conditions Chart (Off Malfunction (B))

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OFF malfunction (C)

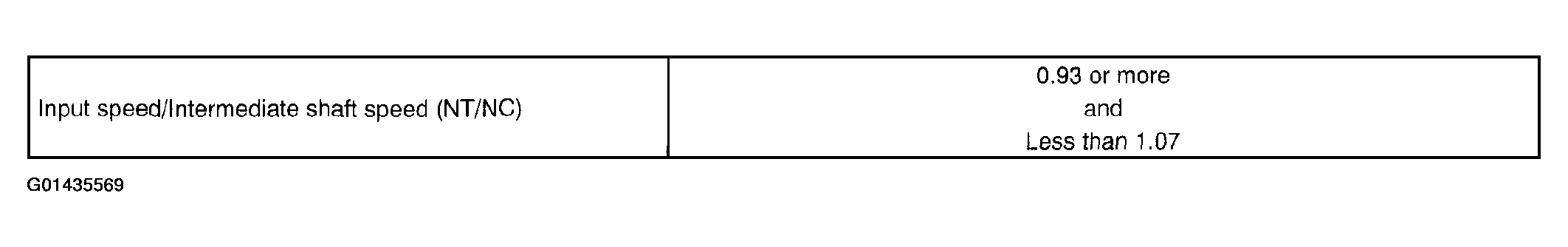

Fig 3: Identifying Typical Enabling Conditions Chart (Off Malfunction (C))

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OFF malfunction (D)

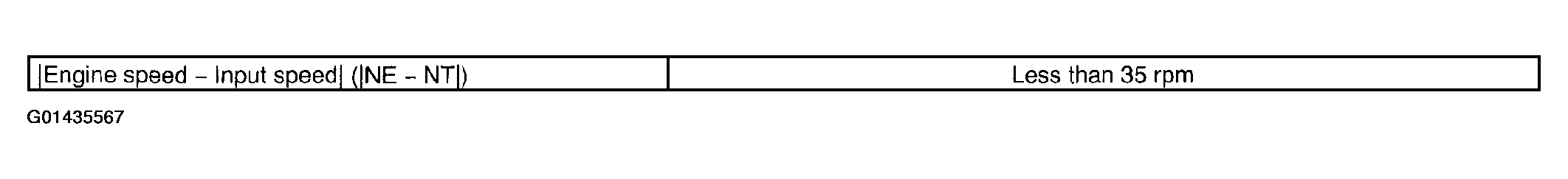

Fig 4: Identifying Typical Enabling Conditions Chart (Off Malfunction (D))

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ON malfunction (A)

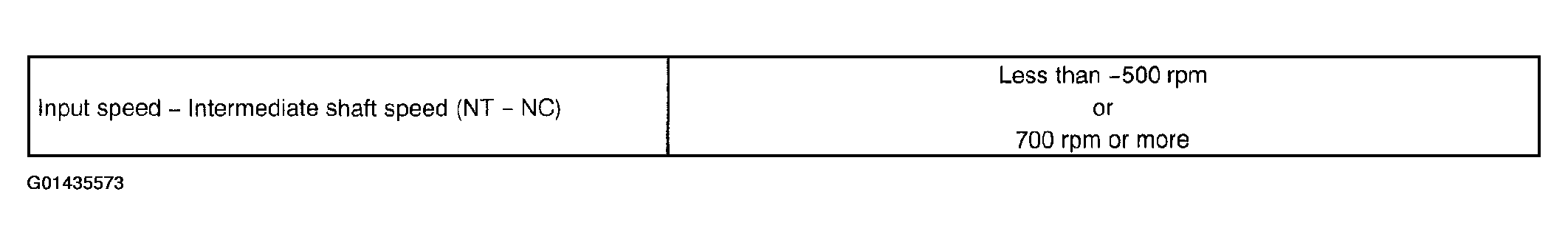

Fig 5: Identifying Typical Enabling Conditions Chart (On Malfunction (A))

ON malfunction (B)

Fig 6: Identifying Typical Enabling Conditions Chart (ON Malfunction (B))

ON malfunction (C)

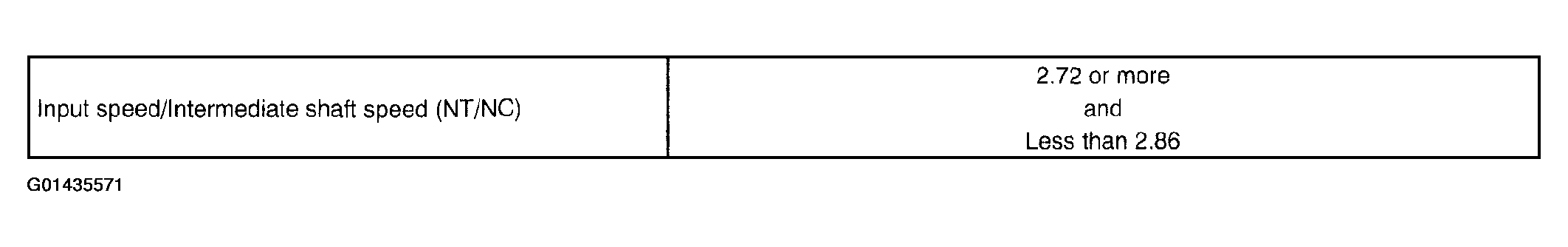

Fig 7: Identifying Typical Enabling Conditions Chart (On Malfunction (C))
