Typical Enabling Conditions

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

The following items are common to all conditions below.

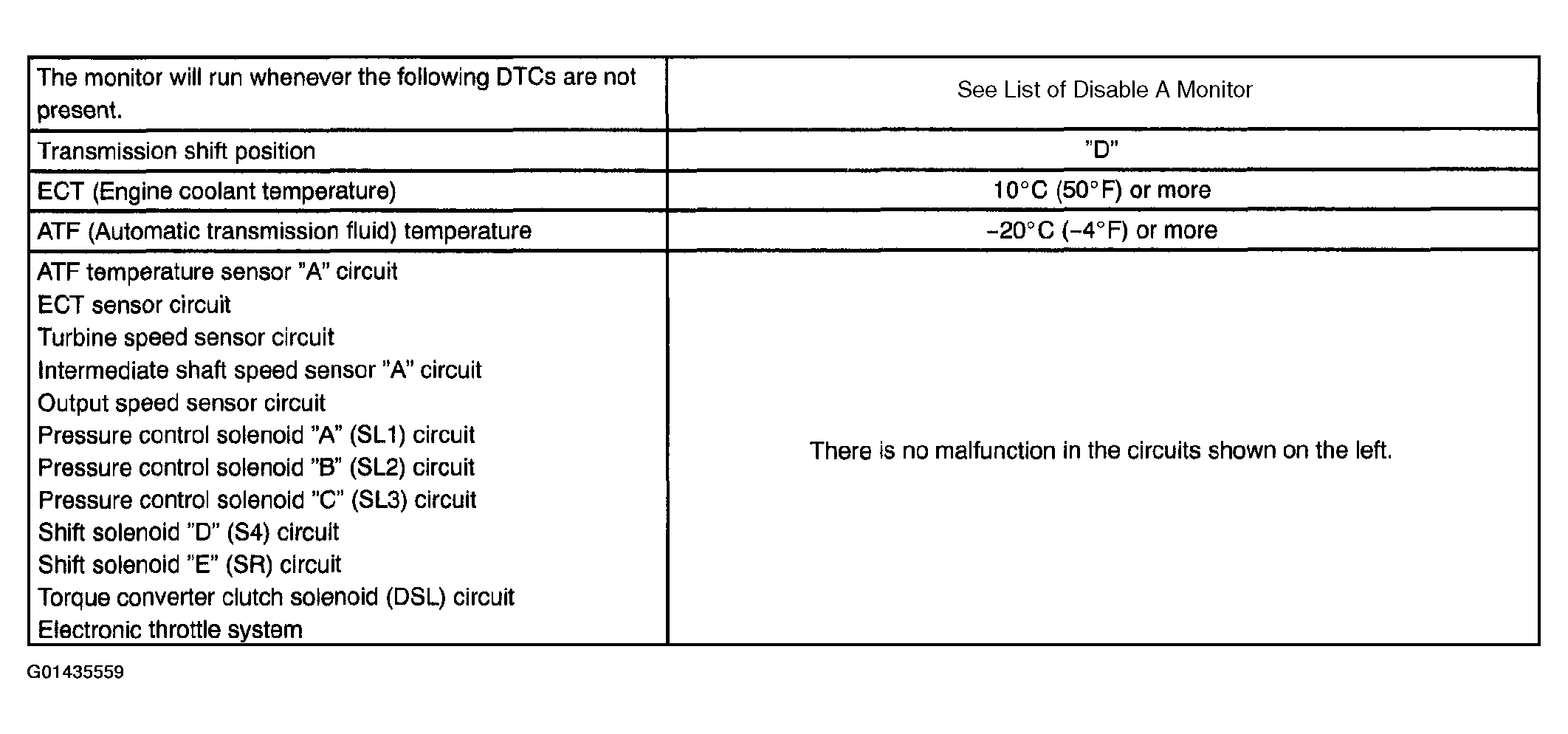

Fig 1: Identifying Typical Enabling Conditions Chart

G01435559

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OFF malfunction (A)

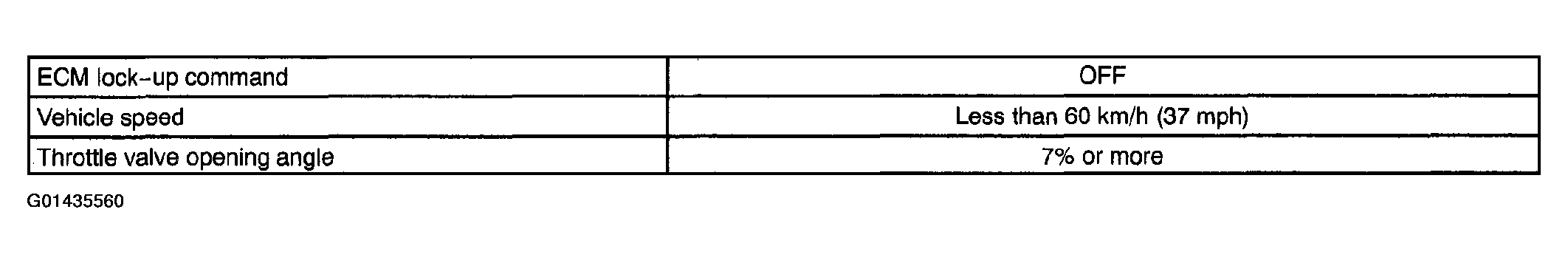

Fig 2: Identifying Typical Enabling Conditions Chart (Off Malfunction (A))

G01435560

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OFF malfunction (B)

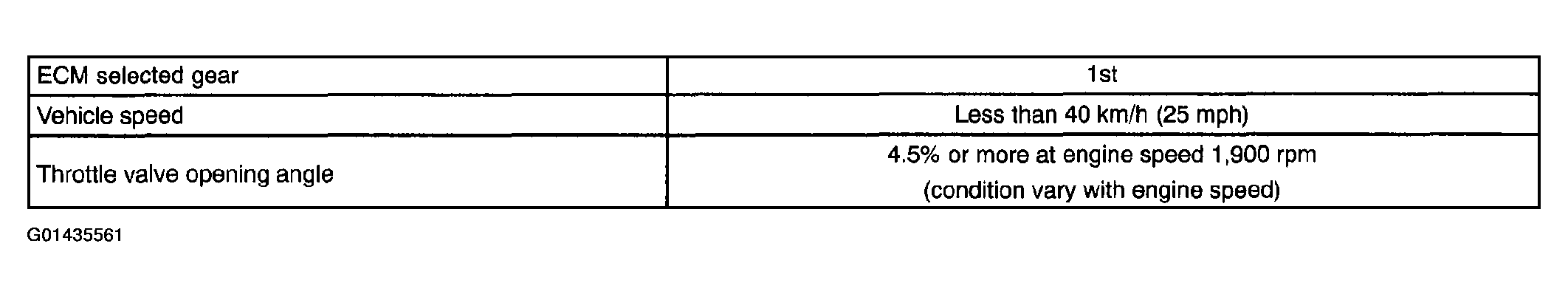

Fig 3: Identifying Typical Enabling Conditions Chart (Off Malfunction (B))

G01435561

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OFF malfunction (C)

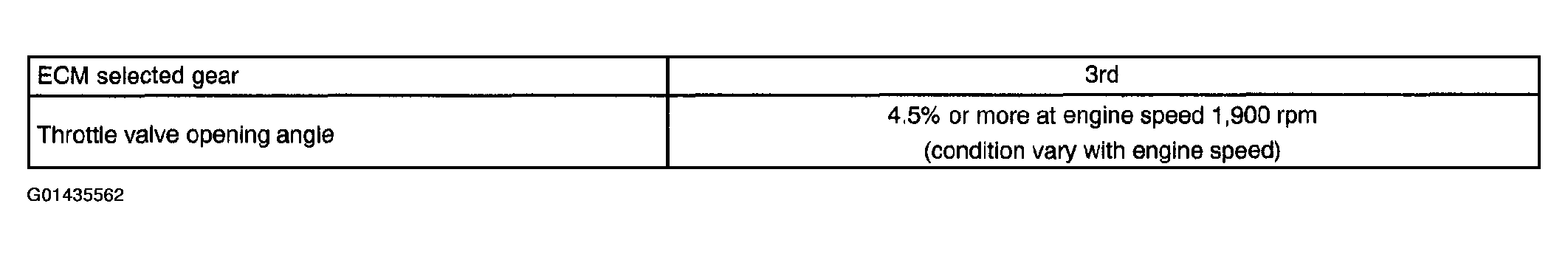

Fig 4: Identifying Typical Enabling Conditions Chart (Off Malfunction (C))

G01435562

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OFF malfunction (D)

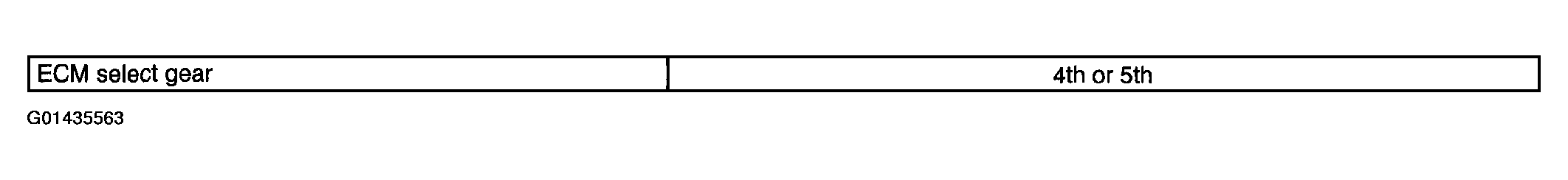

Fig 5: Identifying Typical Enabling Conditions Chart (Off Malfunction (D))

G01435563

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ON malfunction (A)

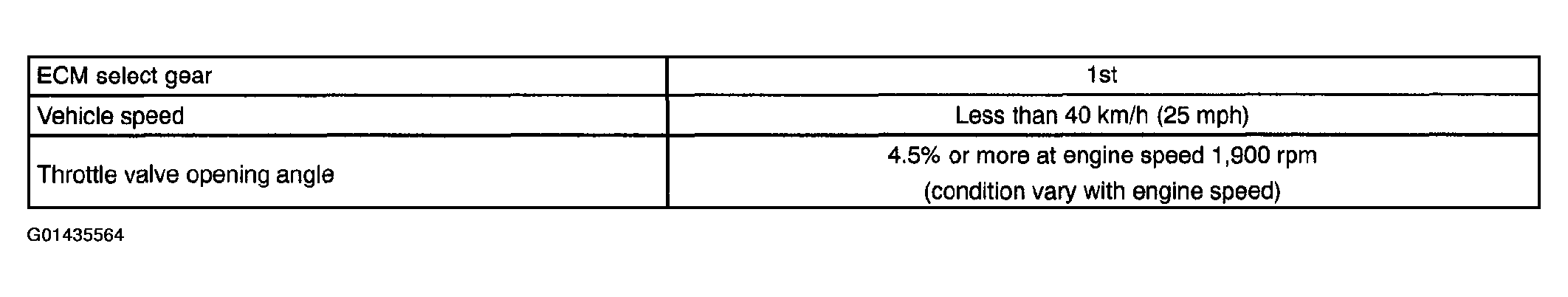

Fig 6: Identifying Typical Enabling Conditions Chart (On Malfunction (A))

G01435564

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ON malfunction (B)

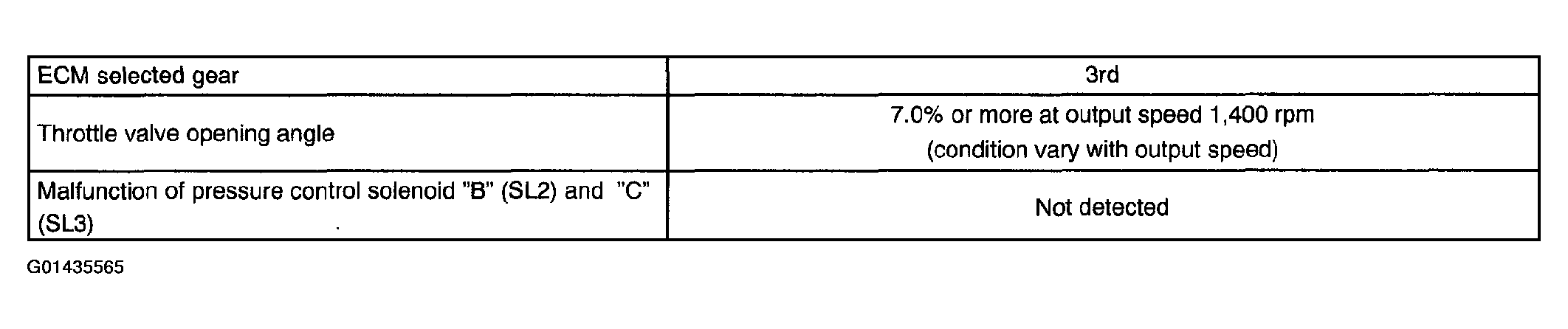

Fig 7: Identifying Typical Enabling Conditions Chart (On Malfunction (B))

G01435565

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ON malfunction (C)

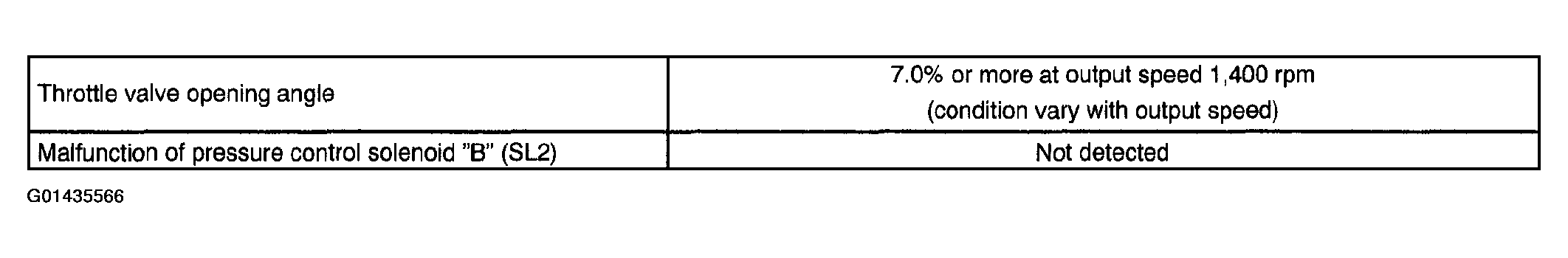

Fig 8: Identifying Typical Enabling Conditions Chart (On Malfunction (C))

G01435566

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
