Typical Enabling Conditions

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

The following items are common to all conditions below.

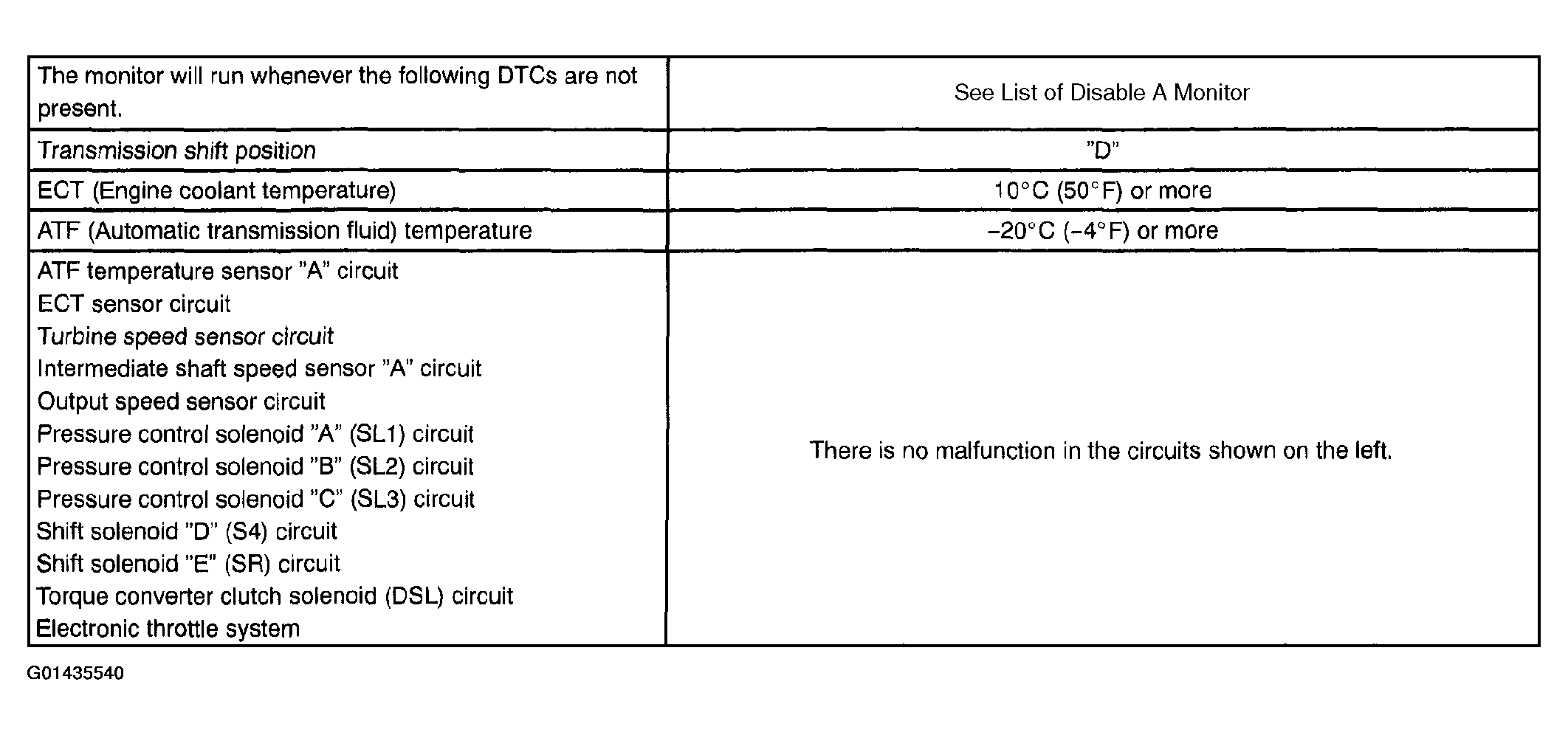

Fig 1: Identifying Typical Enabling Conditions Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OFF malfunction (A)

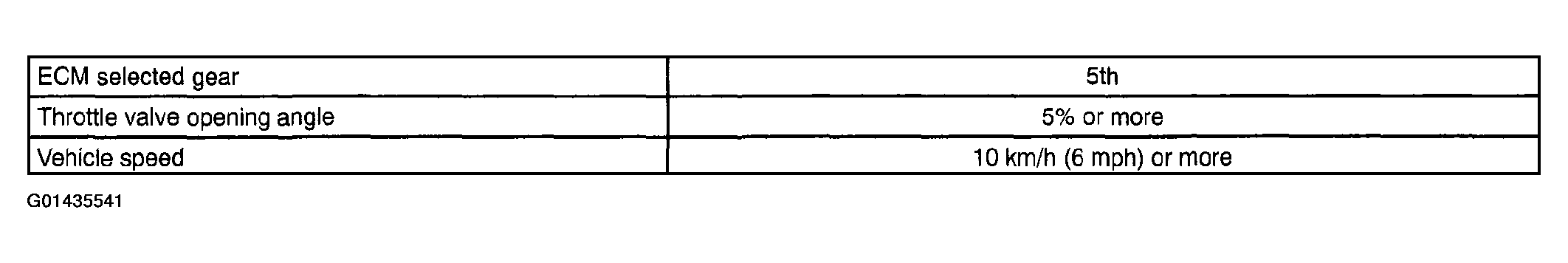

Fig 2: Identifying Typical Enabling Conditions Chart (Off Malfunction (A))

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OFF malfunction (B)

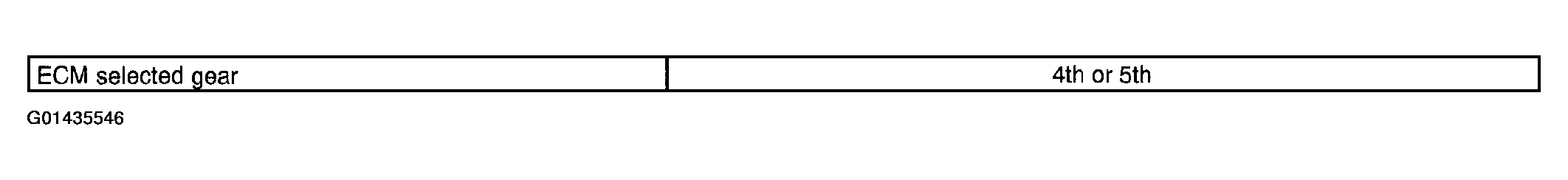

Fig 3: Identifying Typical Enabling Conditions Chart (Off Malfunction (B))

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ON malfunction (A)

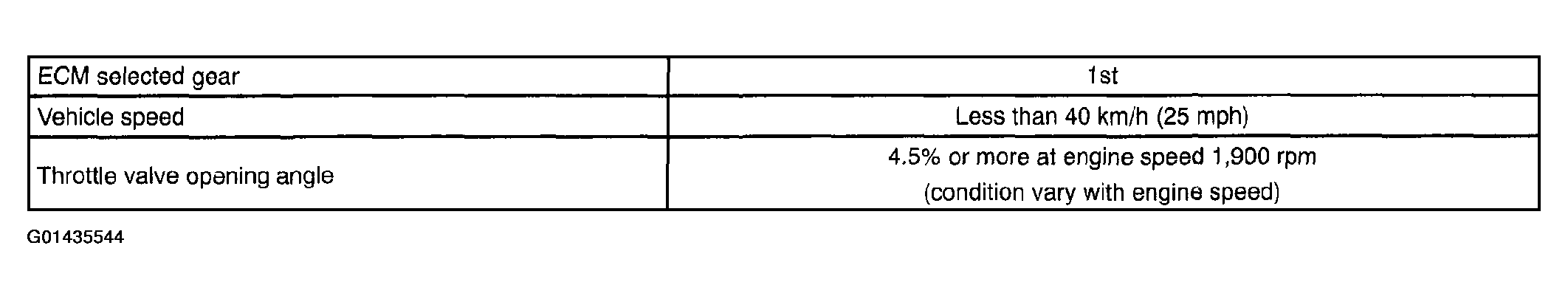

Fig 4: Identifying Typical Enabling Conditions Chart (On Malfunction (A))

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ON malfunction (B)

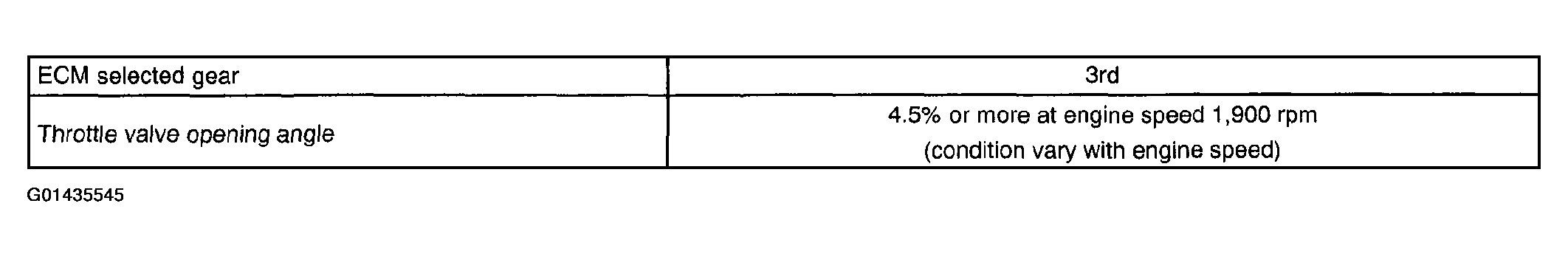

Fig 5: Identifying Typical Enabling Conditions Chart (On Malfunction (B))

ON malfunction (C)

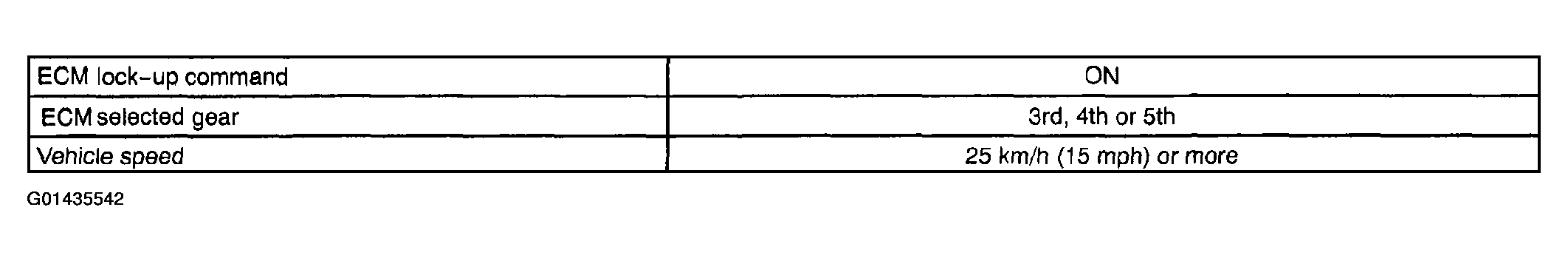

Fig 6: Identifying Typical Enabling Conditions Chart (On Malfunction (C))

ON malfunction (D)

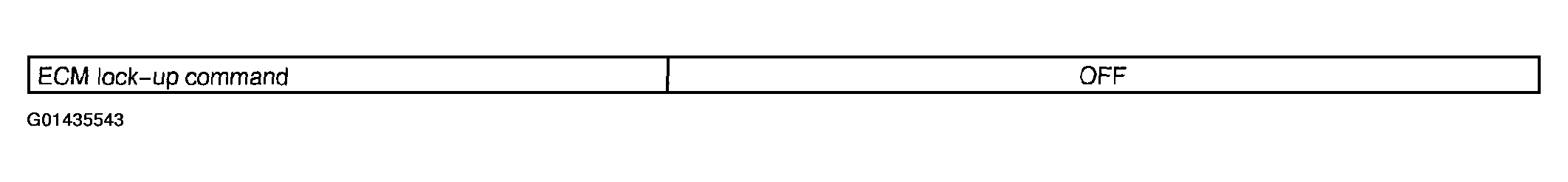

Fig 7: Identifying Typical Enabling Conditions Chart (On Malfunction (D))
