Typical Malfunction Thresholds

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

Either of the following conditions is met: OFF malfunction or ON malfunction

OFF malfunction

It is necessary 2 detections/one driving cycle

1st detection; temporary flag ON

2nd detection; pending fault code ON

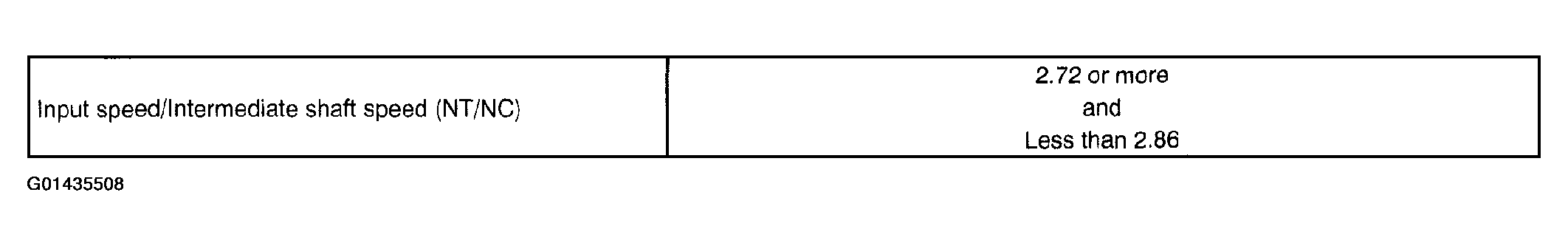

Fig 1: Identifying Typical Malfunction Thresholds (Off Malfunction)

ON malfunction

Fig 2: Identifying Typical Malfunction Thresholds (On Malfunction)
