Typical Malfunction Thresholds

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

Either of the following conditions is met: OFF malfunction or ON malfunction

OFF malfunction

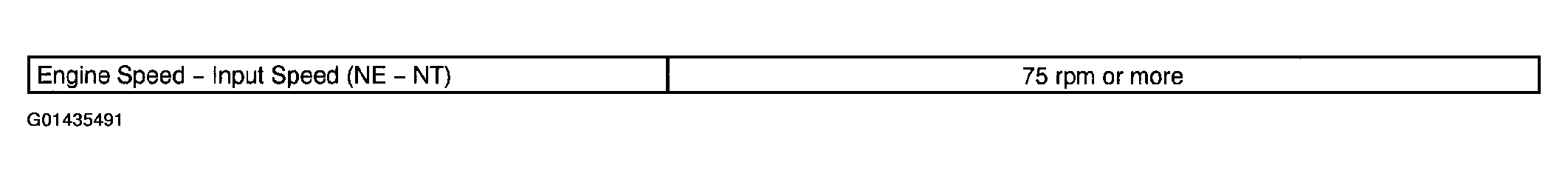

Fig 1: Identifying Typical Malfunction Thresholds (Off Malfunction)
G01435491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ON malfunction

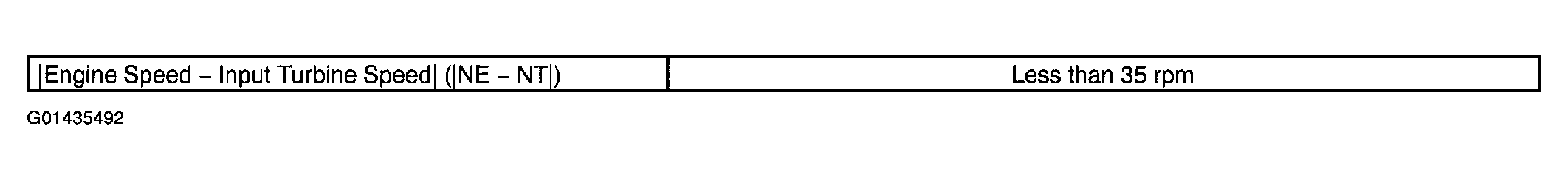

Fig 2: Identifying Typical Malfunction Thresholds (On Malfunction)
G01435492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
