Typical Enabling Conditions

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

Stop light switch remains on during GO and STOP 10 times.

GO and STOP are defined as follows.

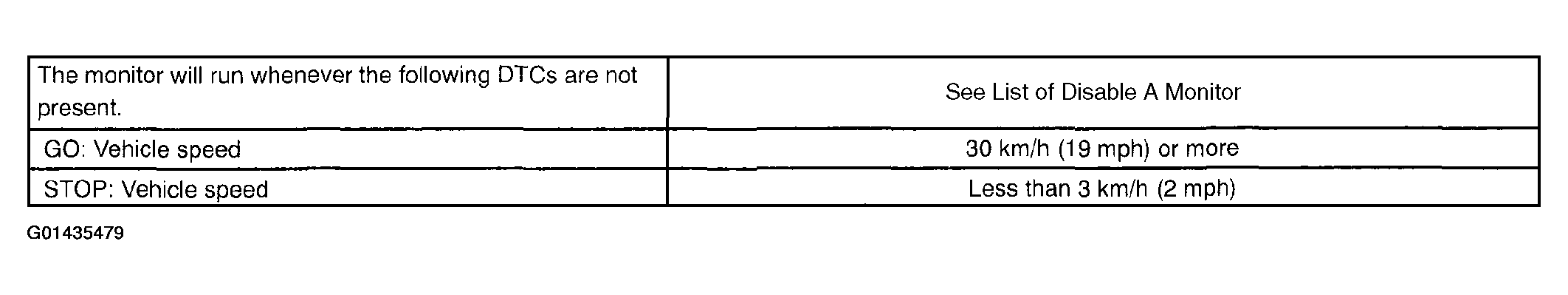

Fig 1: Identifying Typical Enabling Conditions
G01435479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
