Typical Malfunction Thresholds

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

Either of the following conditions is met: Condition (A) or (B)

Condition (A)

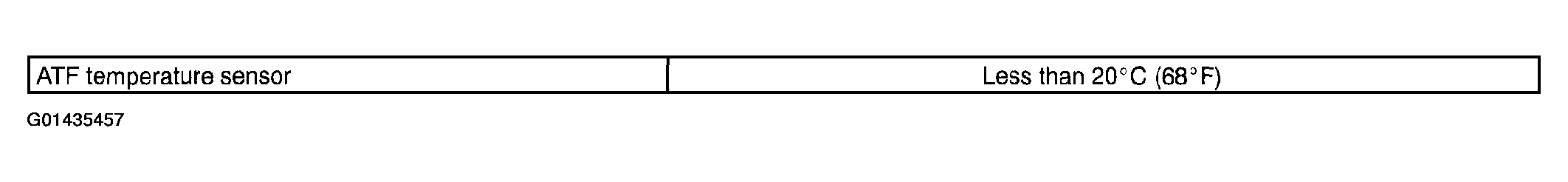

Fig 1: Identifying Typical Malfunction Thresholds (A) Chart
G01435457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Condition (B)

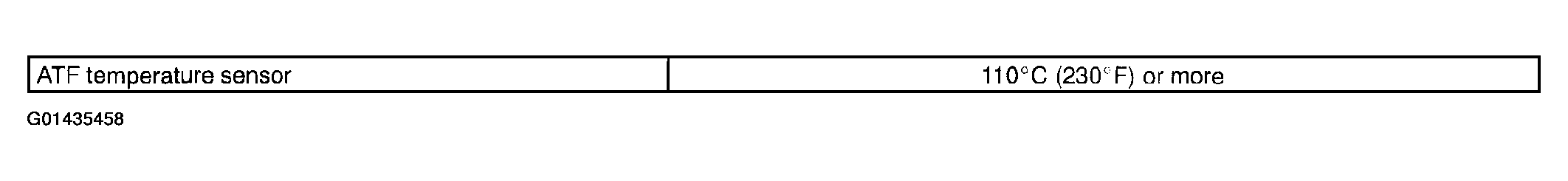

Fig 2: Identifying Typical Malfunction Thresholds (B) Chart
G01435458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
