Typical Malfunction Thresholds

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

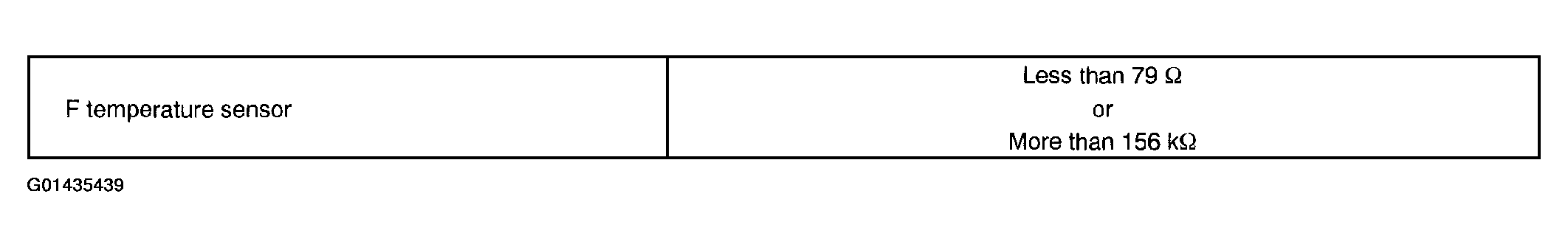

P0710: Range check (Chattering)

Fig 1: Identifying Typical Malfunction Thresholds Chart
G01435439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

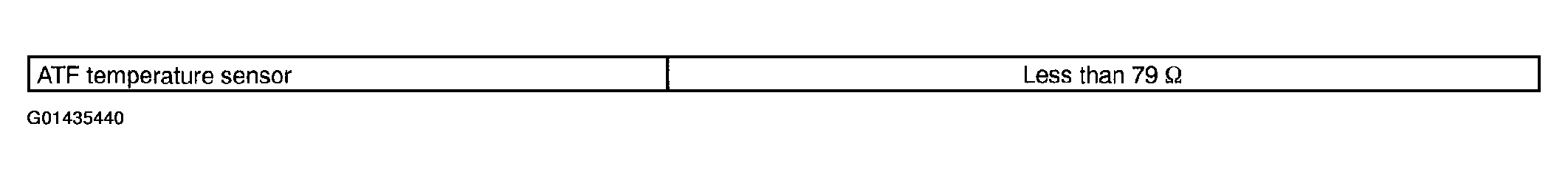

P0712: Range check (Low resistance)

Fig 2: Identifying Typical Malfunction Thresholds Chart
G01435440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

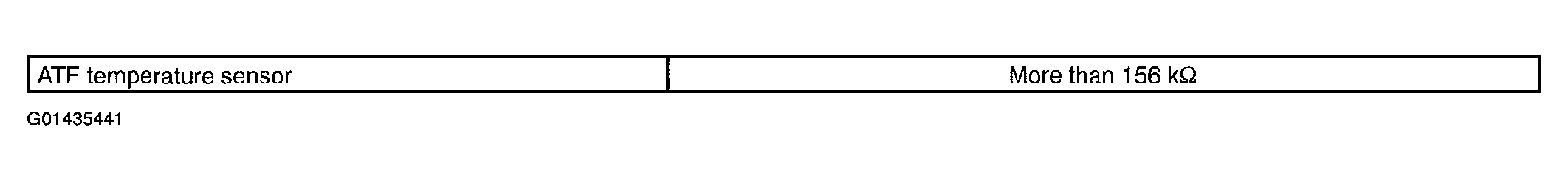

P0713: Range check (High resistance)

Fig 3: Identifying Typical Malfunction Thresholds Chart
G01435441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
