Typical Enabling Conditions

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

P0710: Range check (Chattering)

P0712: Range check (Low resistance)

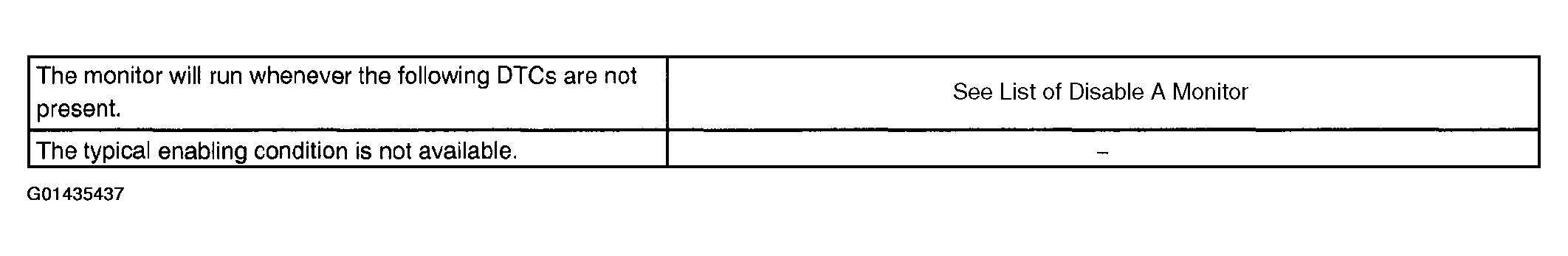

Fig 1: Identifying Typical Enabling Conditions Chart
G01435437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

P0713: Range check (High resistance)

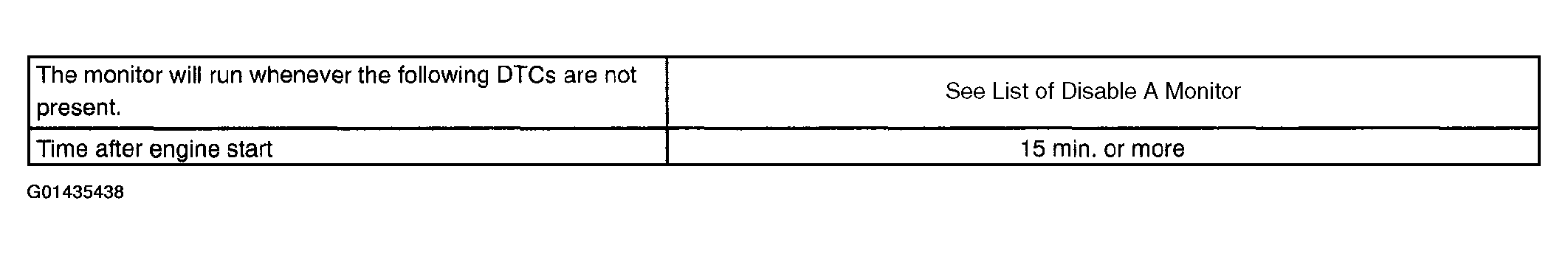

Fig 2: Identifying Typical Enabling Conditions Chart
G01435438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
