DTC P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input): Wiring Diagram

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

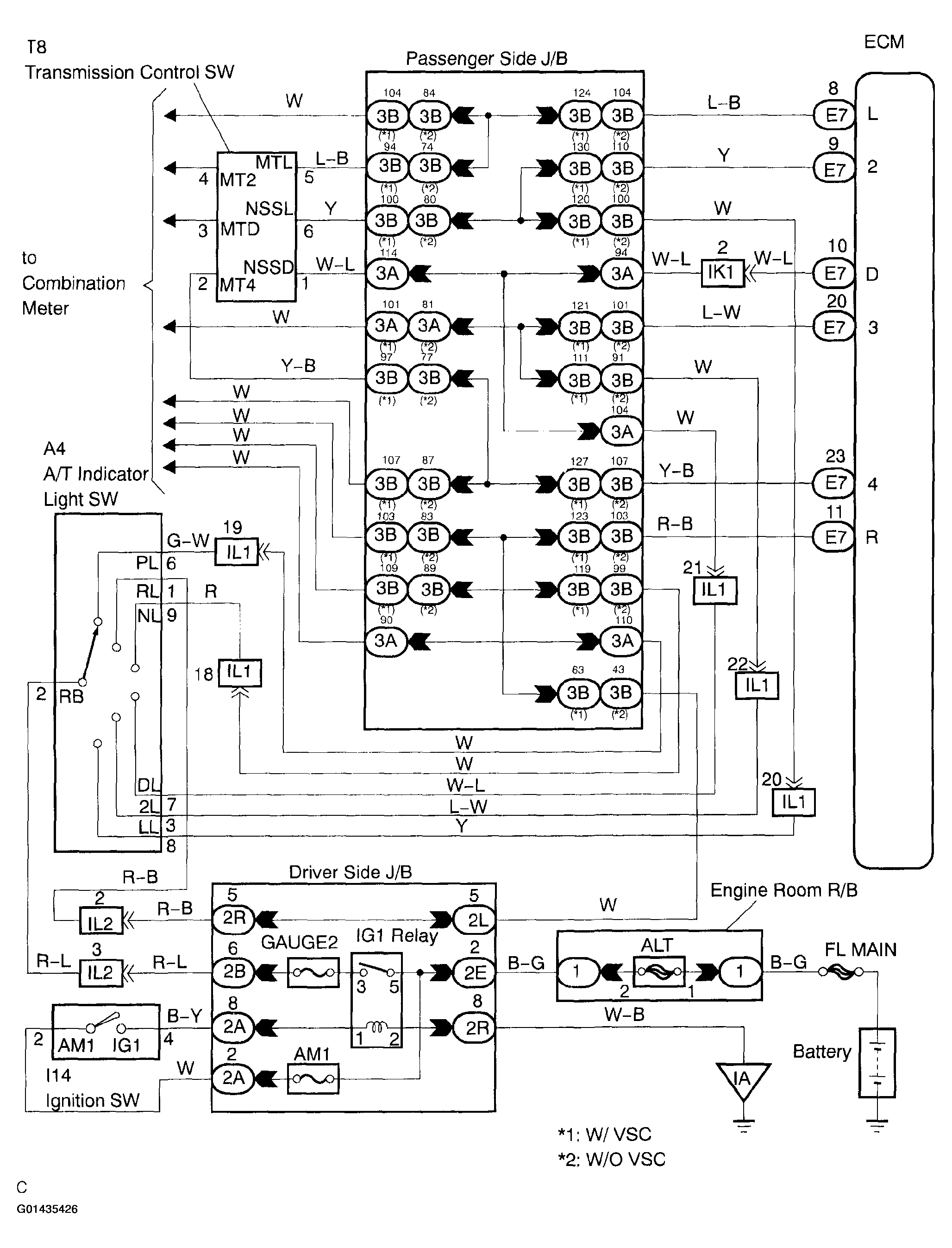

Fig 1: Identifying Wiring Diagram (1 Of 2)
G01435426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

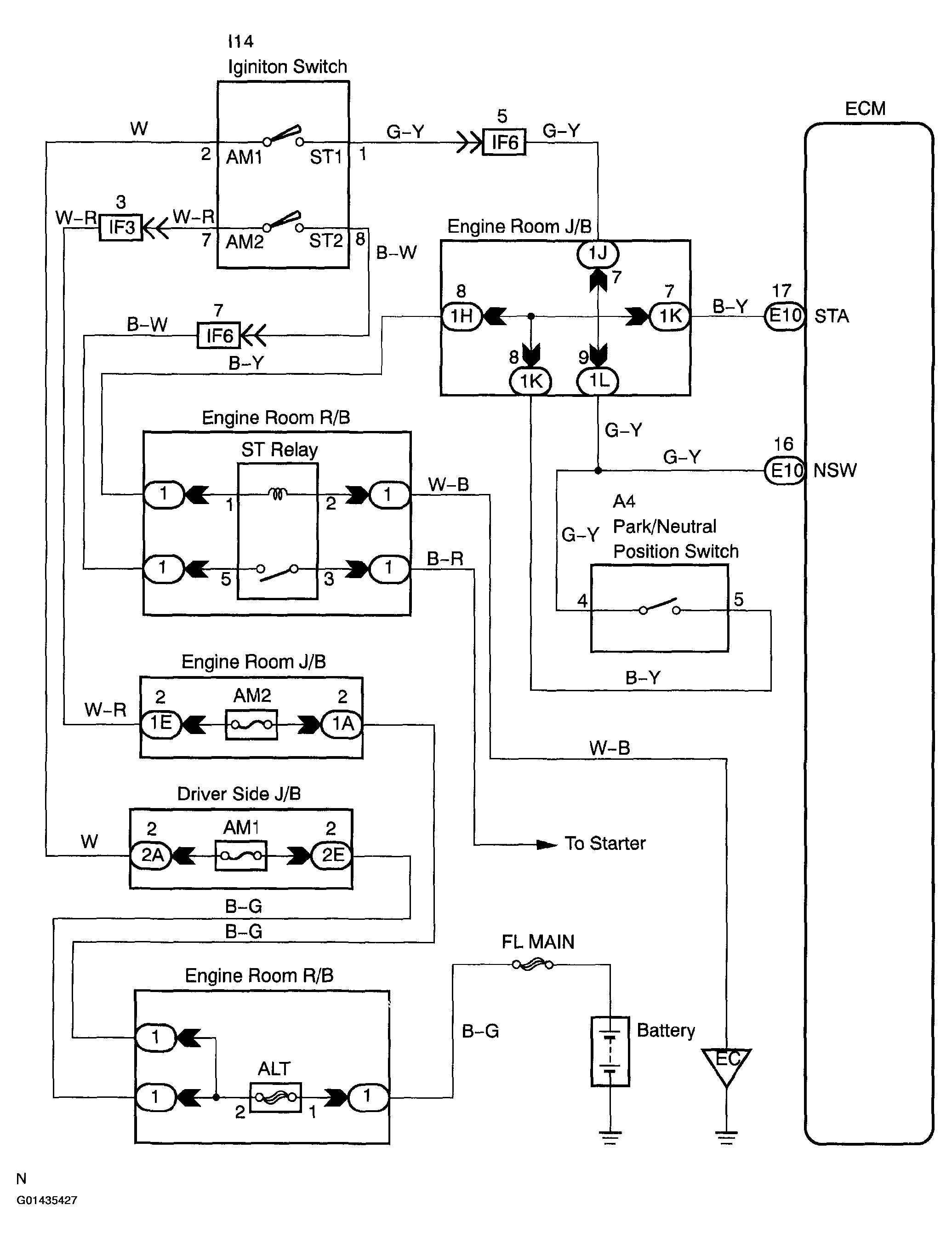

Fig 2: Identifying Wiring Diagram (2 Of 2)
G01435427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
