Circuit Description

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

The park/neutral position switch detects the shift lever position and sends signals to the ECM.

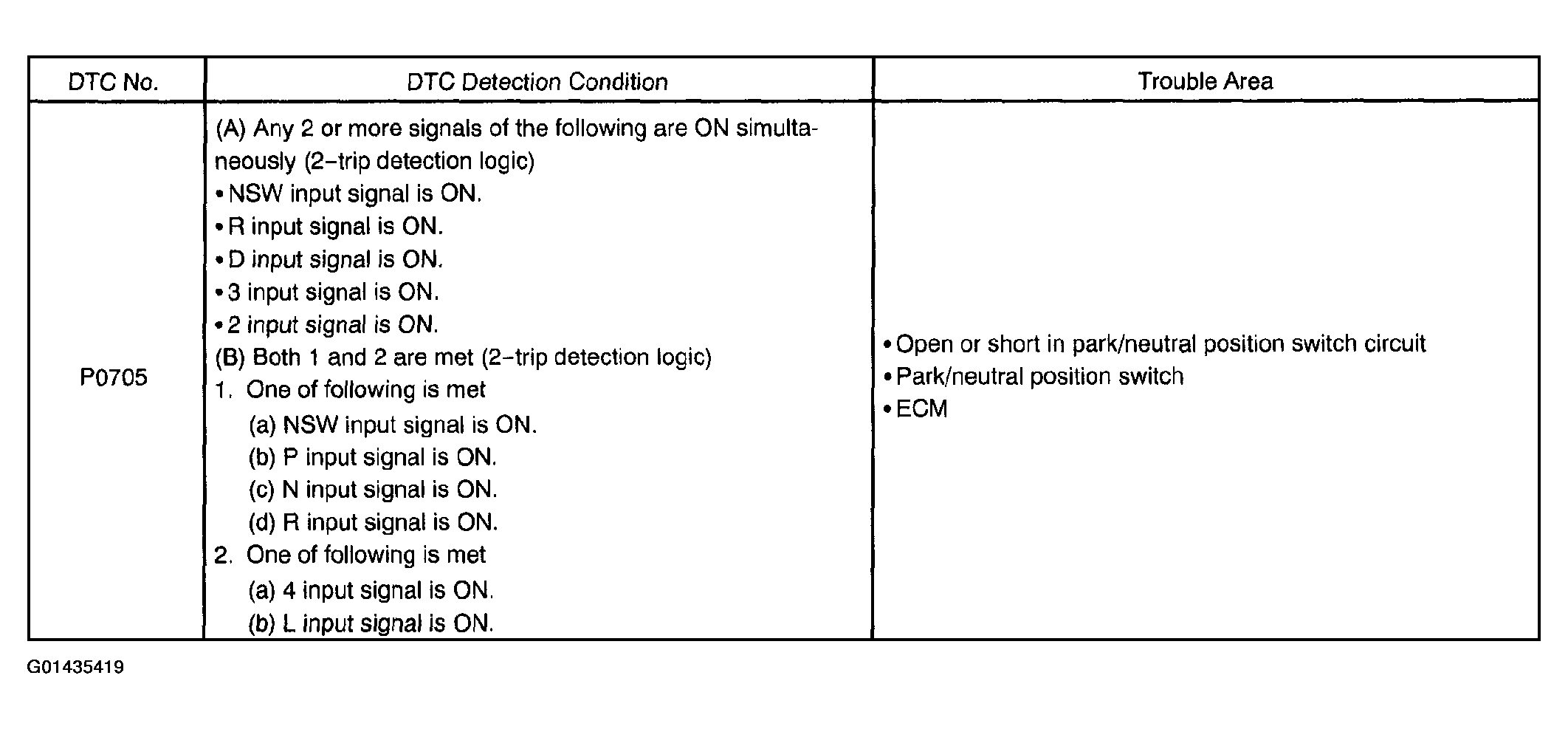

Fig 1: Identifying DTC Detection Item Chart
