Diagnostic Trouble Code Chart
WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.
HINT:
- Using SST 09843-18040, connect the terminals Tc and CG of the DLC3.
- If any abnormalities are not found when inspecting the parts, inspect the ECU and wire harness.

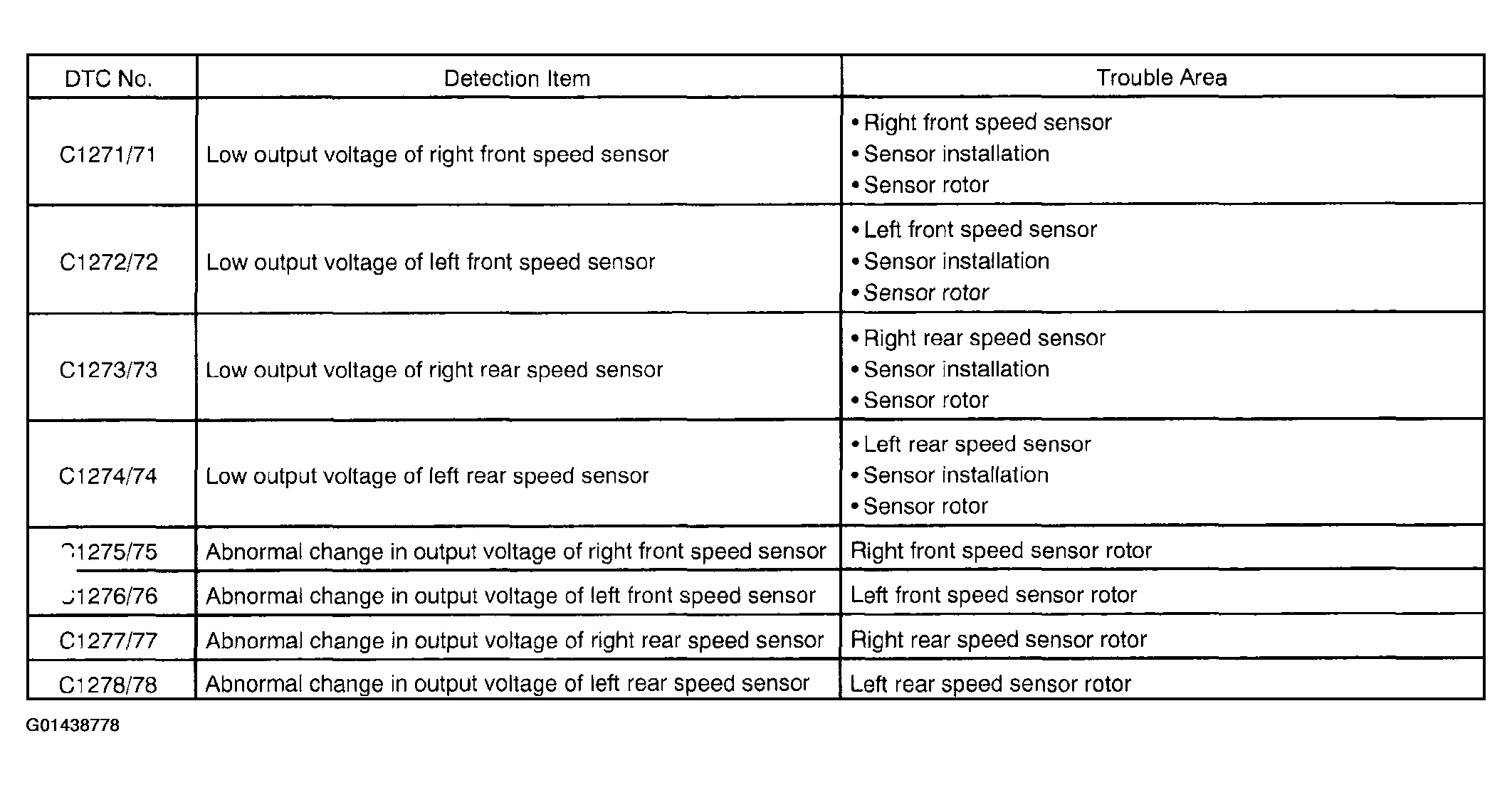

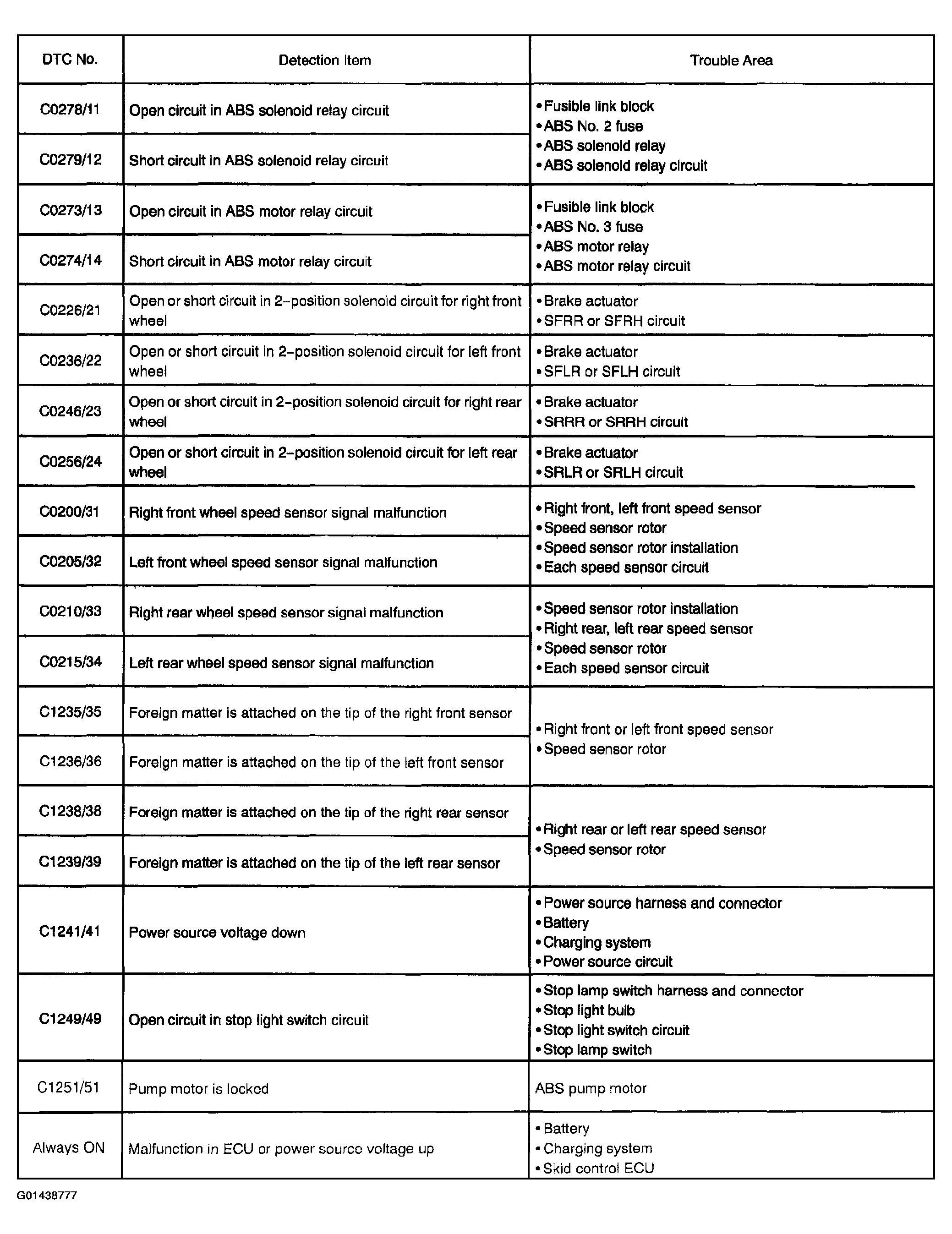

- If a malfunction code is displayed during the DTC check, check the circuit listed in the code. For details of each code, refer to
under the respective "DTC No." in the following DTC chart.
HINT:
There is a case that hand-held tester cannot be used when the ABS warning light is always ON.
