Section 401 (Abs W/ EBD - Diagnosis)
>>
DTC C1251/51: Pump Motor Is Locked/Open Circuit In Pump Motor Ground
>>
Circuit Description
Circuit Description
WARNING:
This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

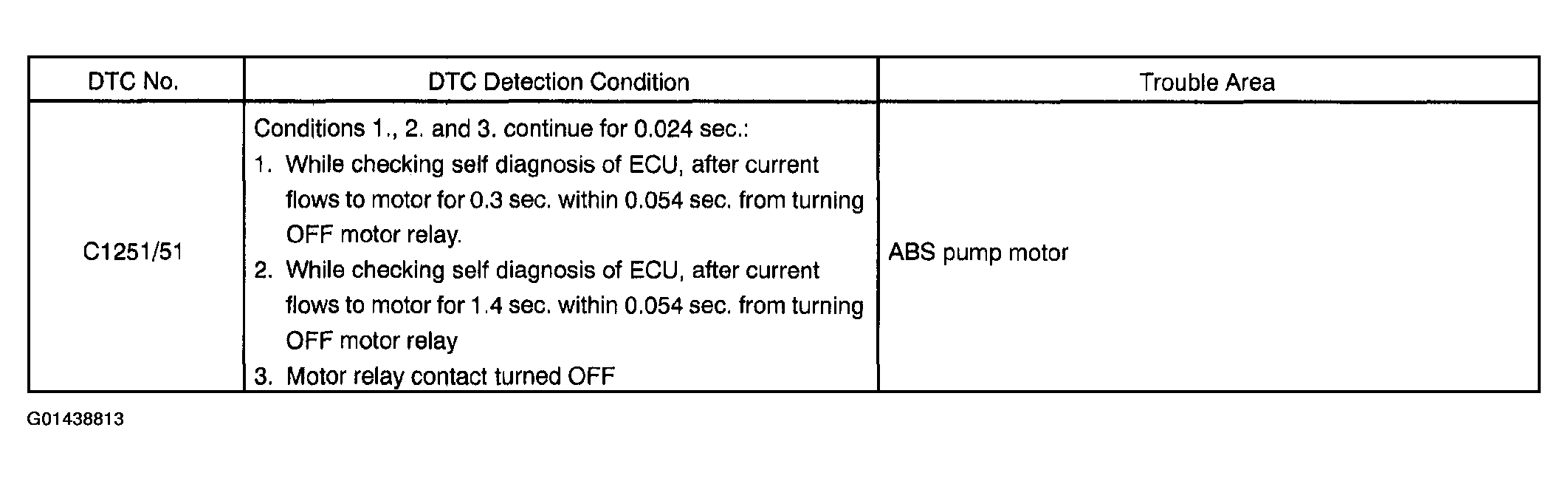

Fig 1: Pump Motor Is Locked/Open Circuit In Pump Motor Ground Circuit Description
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
