Circuit Description

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

This relay supplies power to each ABS solenoid. After the ignition switch is turned ON, if the initial check is OK, the relay turns on.

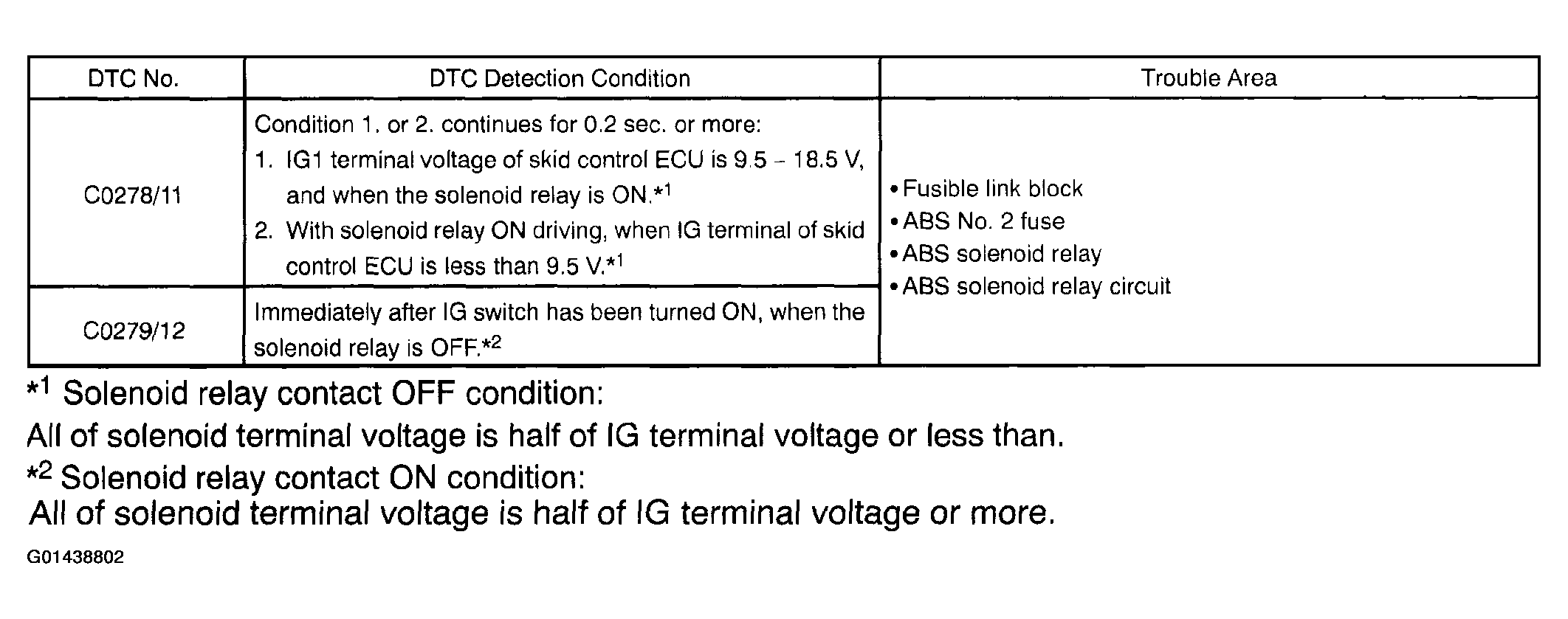

Fig 1: Open & Short Circuit In ABS Solenoid Relay Circuit Description
G01438802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
