DTC C0273/13, C0274/14: Open Circuit In Abs Motor Relay Circuit, B+ Short Circuit In Abs Motor Relay Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

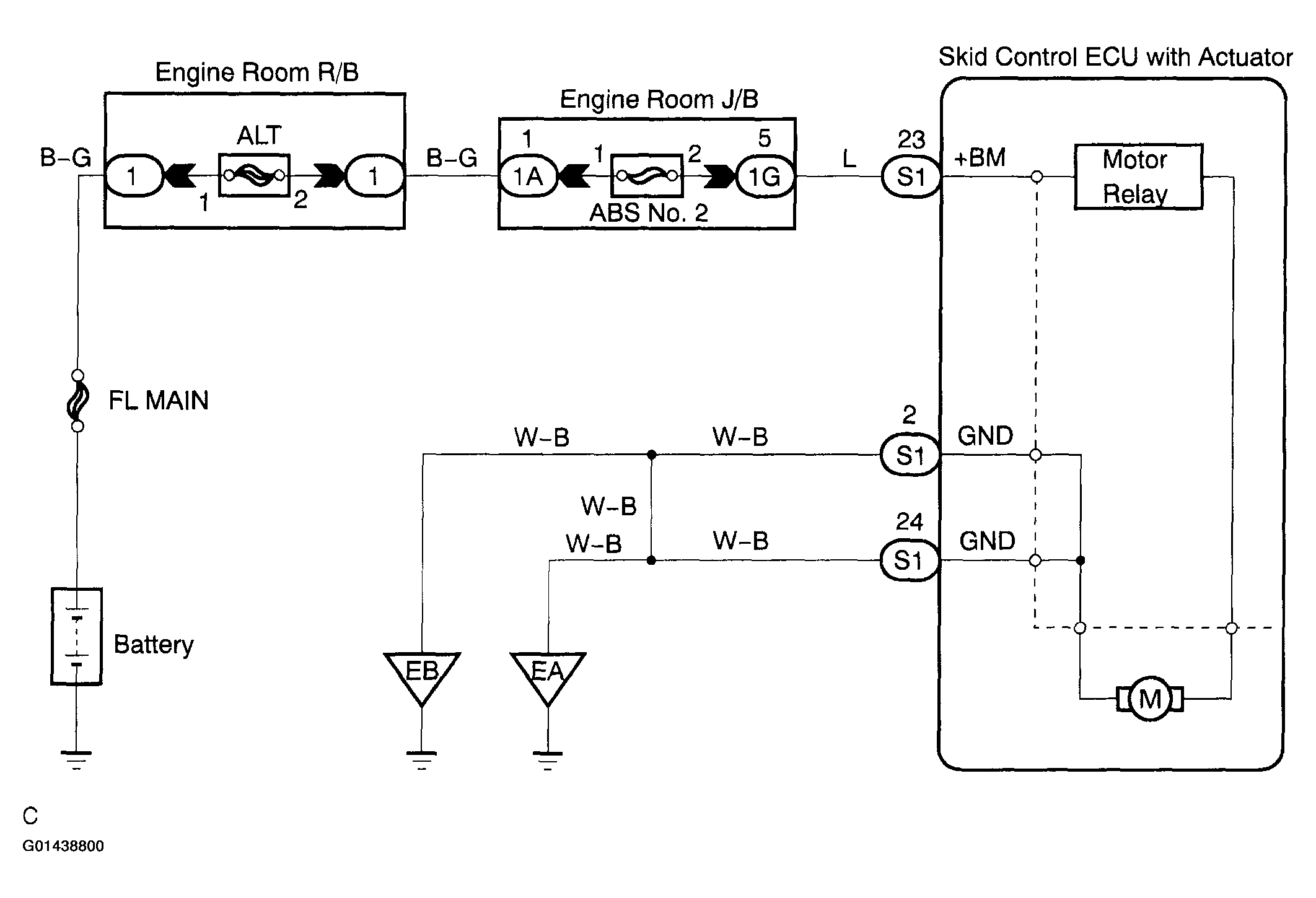

Fig 1: Open & B+ Short Circuit In ABS Motor Relay Wiring Diagram
G01438800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
