Circuit Description
WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.
The ABS solenoid valve goes on when signals are sent from the ECU and controls the pressure operating the wheel cylinders, thus the braking force is controlled.

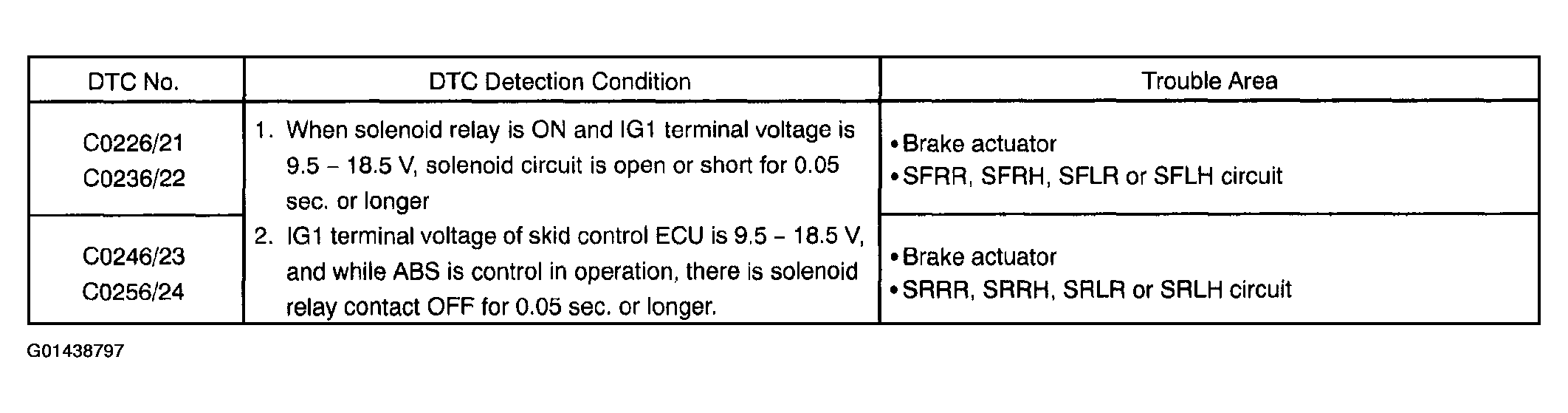

HINT:
- DTC No. C0226/21 is for right front solenoid valve.
DTC No. C0236/22 is for left front solenoid valve.
- DTC No. C0246/23 is for right rear solenoid valve.
- DTC No. C0256/24 is for left rear solenoid valve.
