Inspection Procedure
WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.
- RECONFIRM DTC(See PRE-CHECK
)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

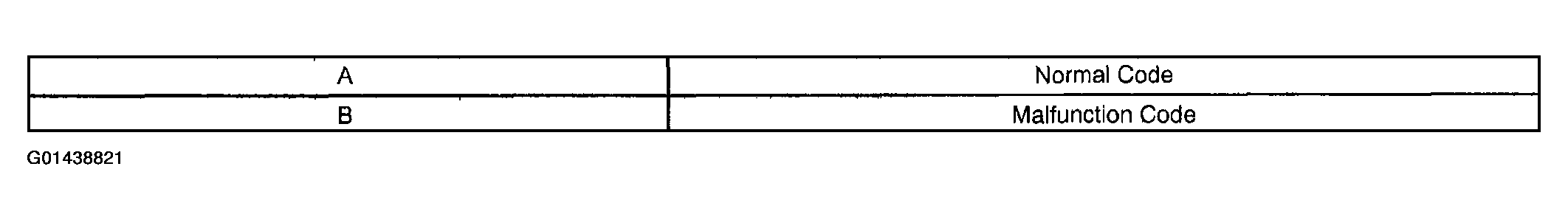

- B: REPAIR CIRCUIT INDICATED BY OUTPUT CODE
- A: Go to next step.
- CHECK HARNESS AND CONNECTOR (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE
)
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK: CHECK AND REPLACE BRAKE ACTUATOR ASSY
