Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

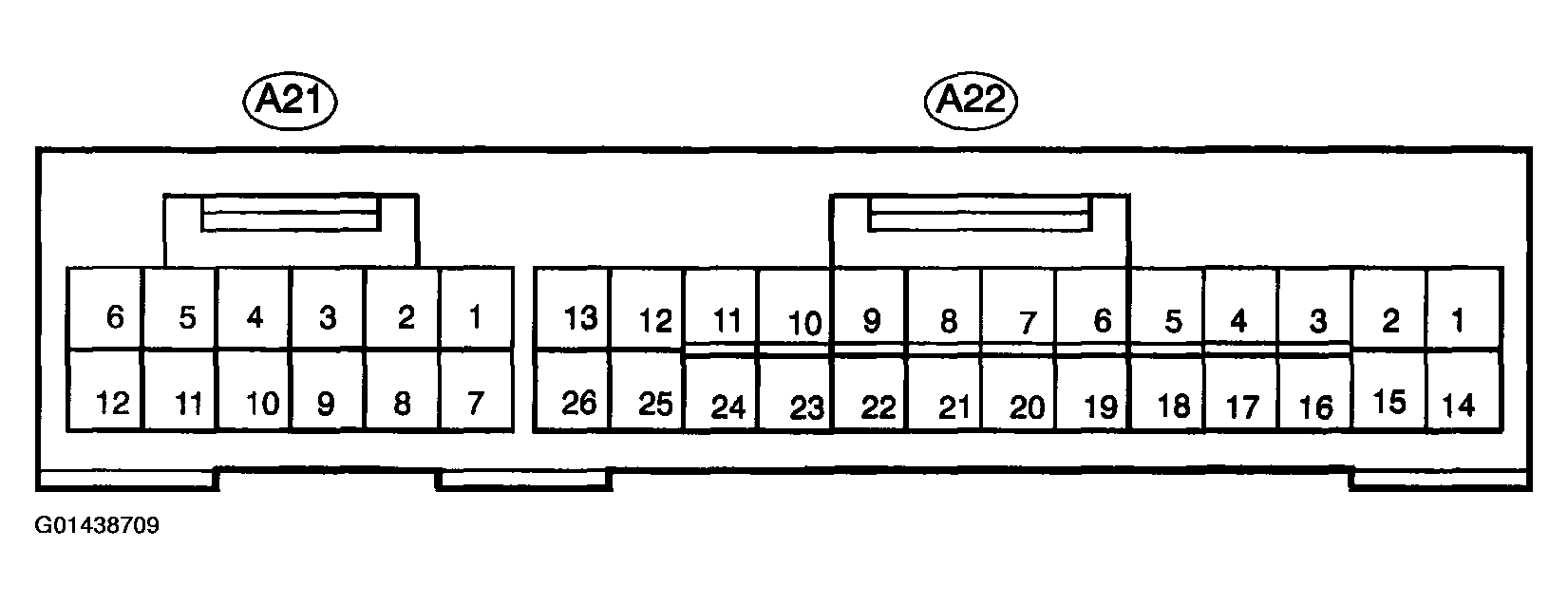

Fig 1: Identifying ECU Terminals
G01438709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

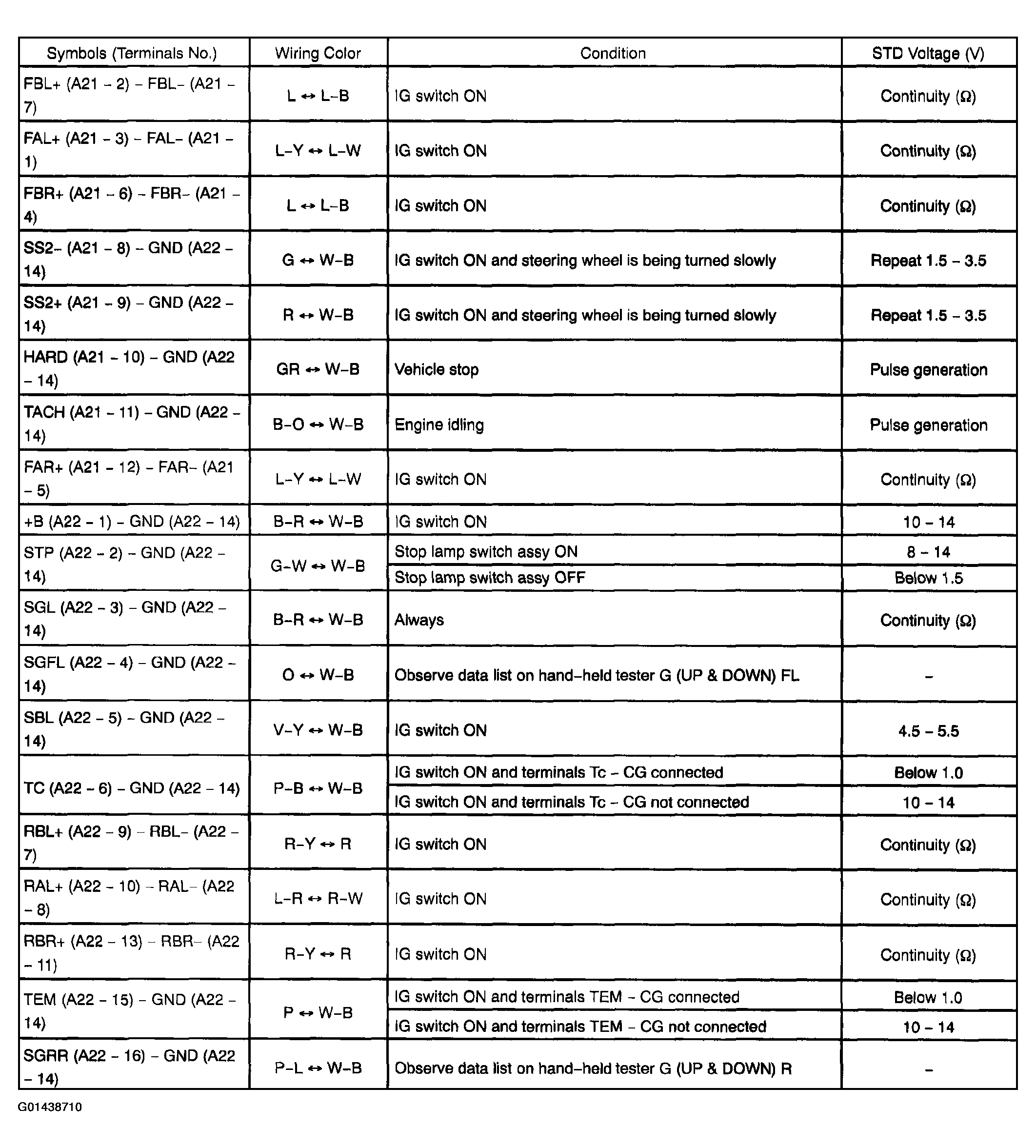

Fig 2: ECU Terminals Voltage Chart (1 Of 2)
G01438710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

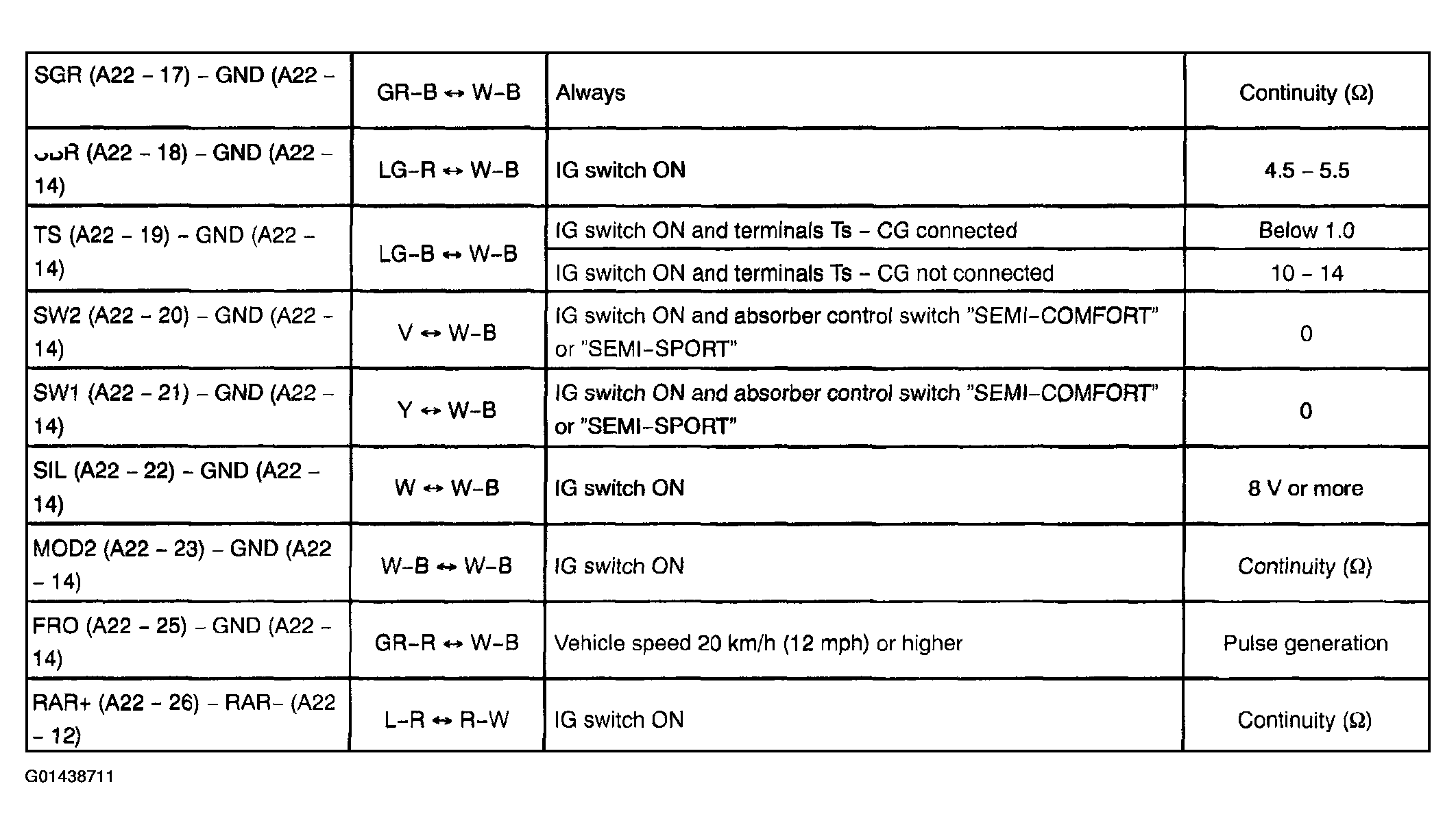

Fig 3: ECU Terminals Voltage Chart (2 Of 2)
G01438711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
