Inspection Procedure

HINT: Start the inspection from the step 1 in case of using hand-held tester and start from step  2 in case of not using hand-held tester.

1. READ VALUE OF HAND-HELD TESTER
   1. Connect the hand-held tester to the DLC3.
   2. Turn the ignition switch ON and turn the hand-held tester main switch ON.
   3. Select the item "DAMPER SW1 (SW2)" in the DATA LIST and read its value displayed on the hand-held tester.
   4. Check that the acceleration value of the acceleration sensor observed in the hand-held tester is changing when the vehicle is bounced.

      OK:

      Absorber control switch value must be changing.

   • NG: CHECK AND REPLACE ABSORBER CONTROL ECU (See  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
   • OK: GO TO NEXT STEP.
2. INSPECT ABSORBER CONTROL SWITCH
   1. Disconnect the absorber control switch.
   2. Check the continuity between each terminal of the absorber control switch at each switch position.

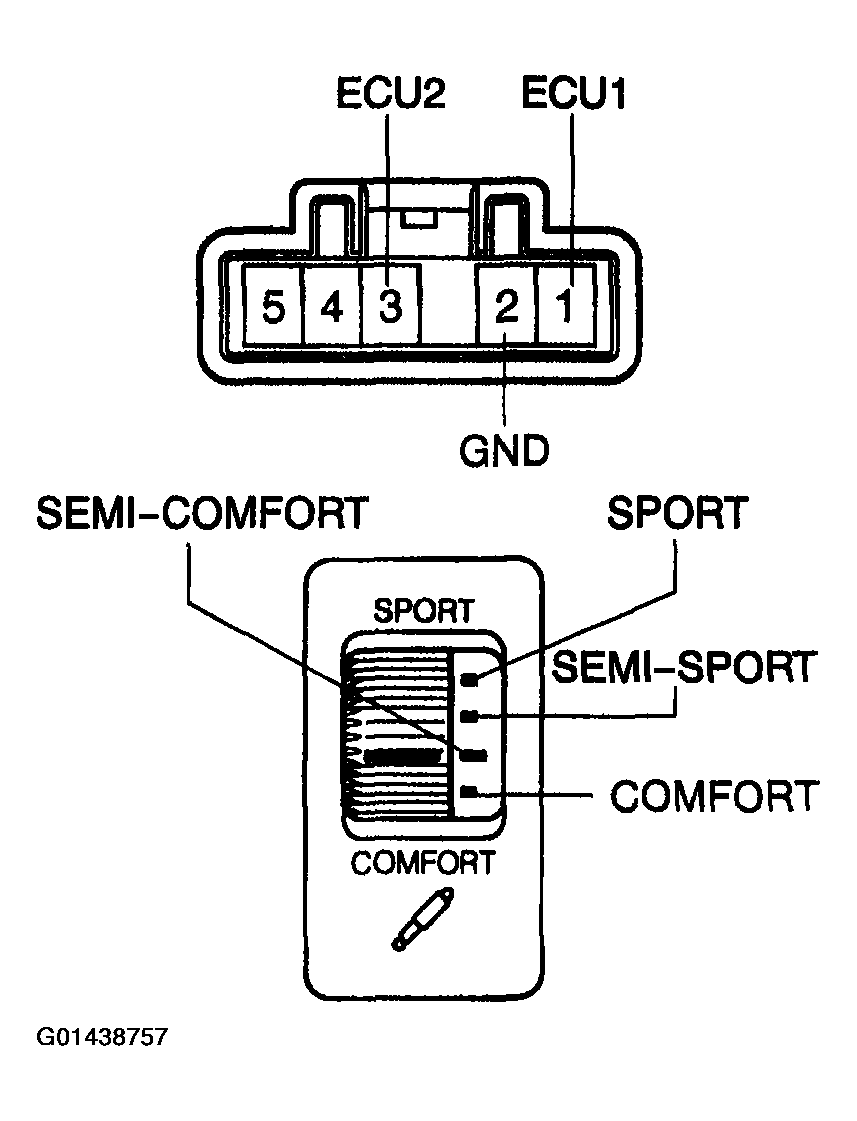

      Fig 1: Checking Continuity Between Each Terminals Of Absorber Control Switch

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK:

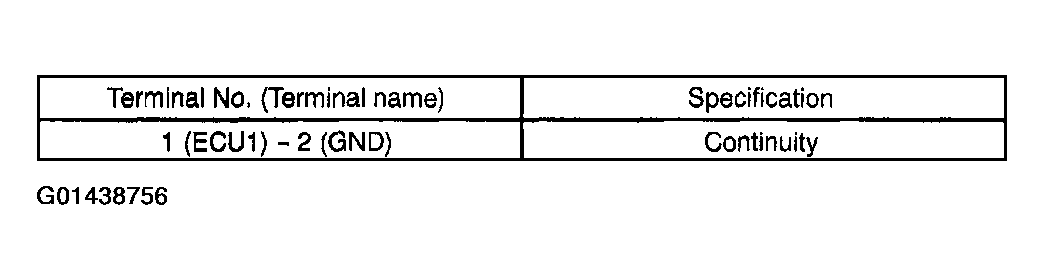

      Fig 2: Absorber Control Switch "Sport" Position Chart

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

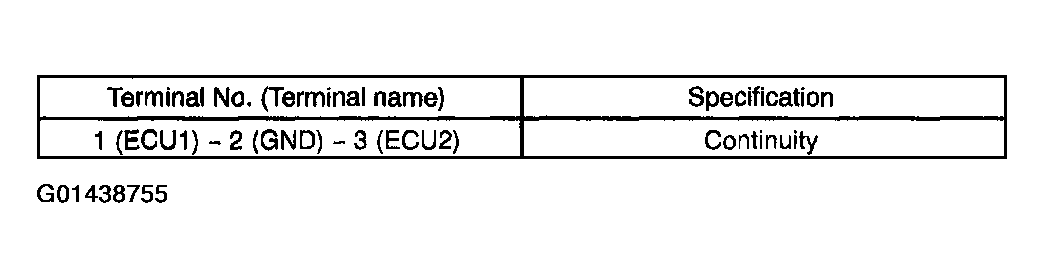

      Fig 3: Absorber Control Switch "Semi-Sport" Position Chart

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

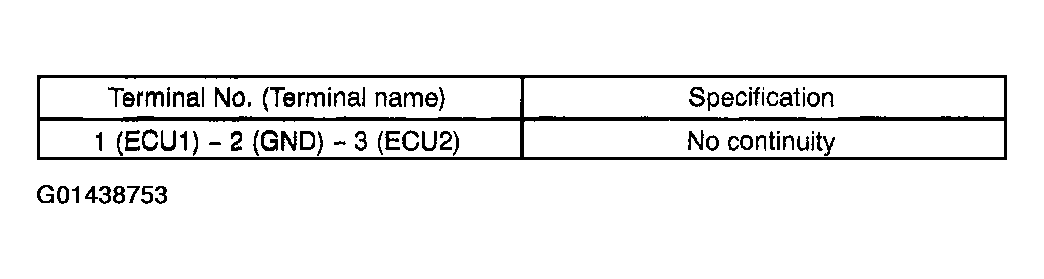

      Fig 4: Absorber Control Switch "Semi-Comfort" Position Chart

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

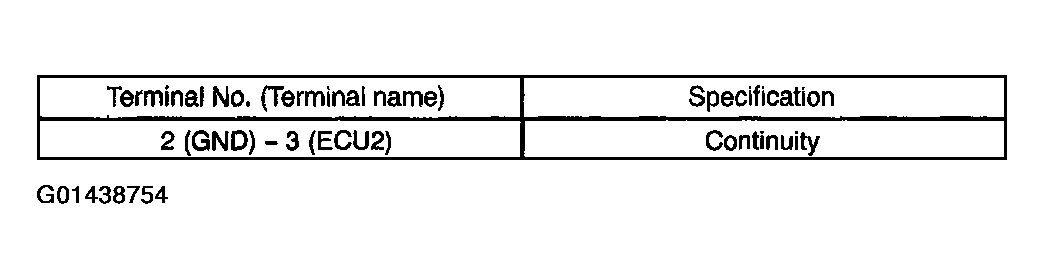

      Fig 5: Absorber Control Switch "Comfort" Position Chart

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   • NG: REPLACE ABSORBER CONTROL SWITCH
   • OK: GO TO NEXT STEP.
3. CHECK HARNESS AND CONNECTOR (ABSORBER CONTROL SWITCH - ABSORBER CONTROL ECU)
   1. Check for open and short circuit in harness and connector between absorber control switch and absorber control ECU (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).
   • NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
   • OK: CHECK AND REPLACE ABSORBER CONTROL ECU (See  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
