Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

CHECK STOP LAMP
1. Check that the stop lamp lights up when brake pedal is depressed and turns OFF when the brake pedal is released.
NG: Go to step 2

OK: Go to next step.
INSPECT ABSORBER CONTROL ECU
1. Remove the absorber control ECU with connectors still connected.
2. Measure voltage between terminal A22 - 2 (STP) and A22 - 14 (GND) of absorber control ECU when stop lamp switch assy switch is ON and OFF.

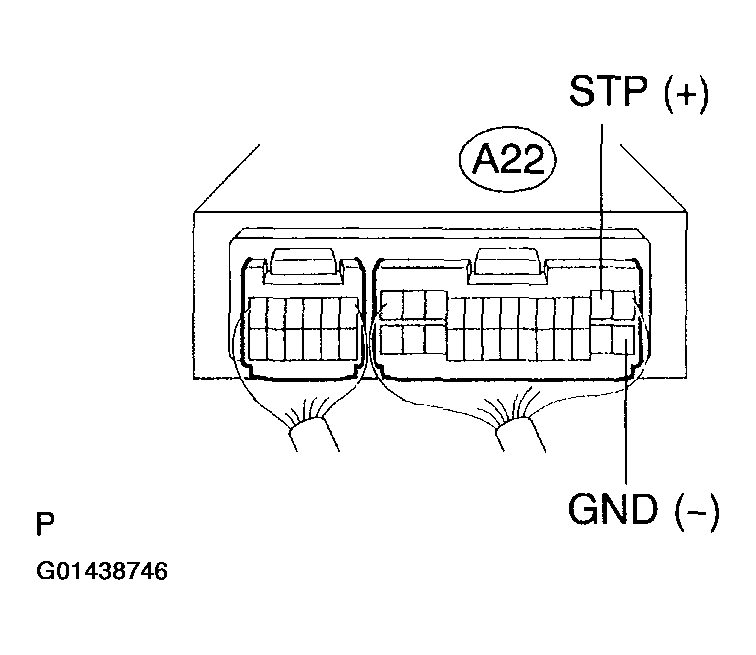

  Fig 1: Measuring Voltage Between Terminals STP & GND
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  OK:

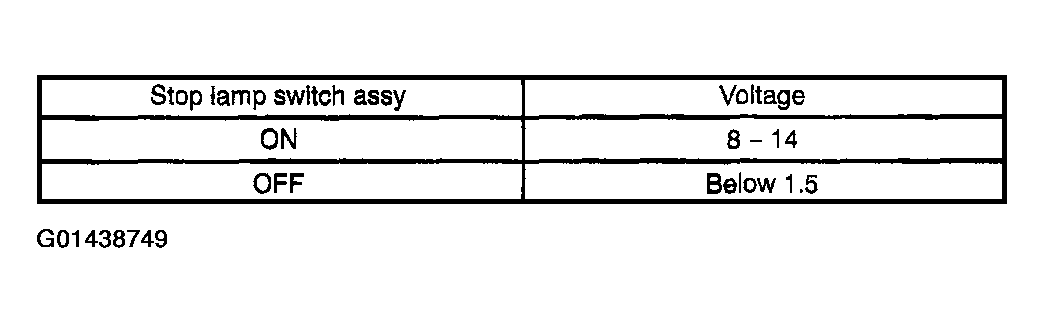

  Fig 2: Stop Lamp Switch Assy Voltage Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK: CHECK AND REPLACE ABSORBER CONTROL ECU (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE )
INSPECT STOP LAMP SWITCH ASSY
1. Disconnect the stop lamp switch assy connector.
2. Measure the continuity between each terminal of the stop lamp switch assy.

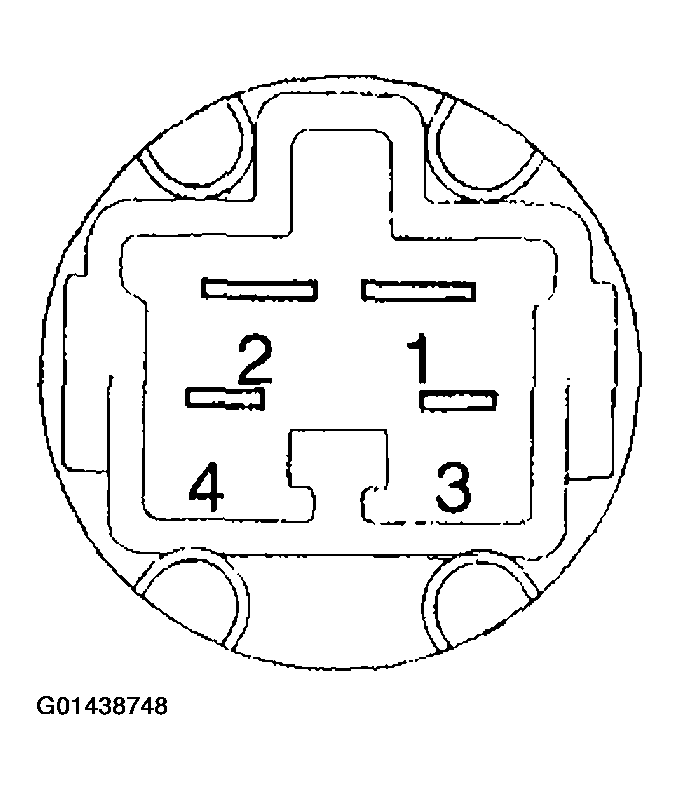

  Fig 3: Measuring Continuity Between Each Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  OK:

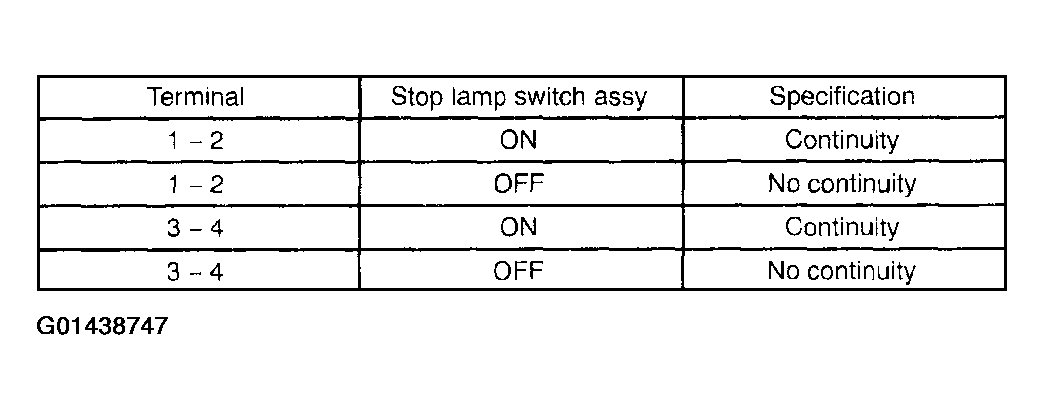

  Fig 4: Stop Lamp Switch Assy Specifications Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- NG: REPLACE STOP LAMP SWITCH ASSY
- OK: GO TO NEXT STEP.
INSPECT ABSORBER CONTROL ECU
1. Remove the absorber control ECU with connectors connected.
2. Measure voltage between terminal A22 - 2 (STP) and A22 - 14 (GND) of absorber control ECU when stop lamp switch assy switch is ON and OFF.

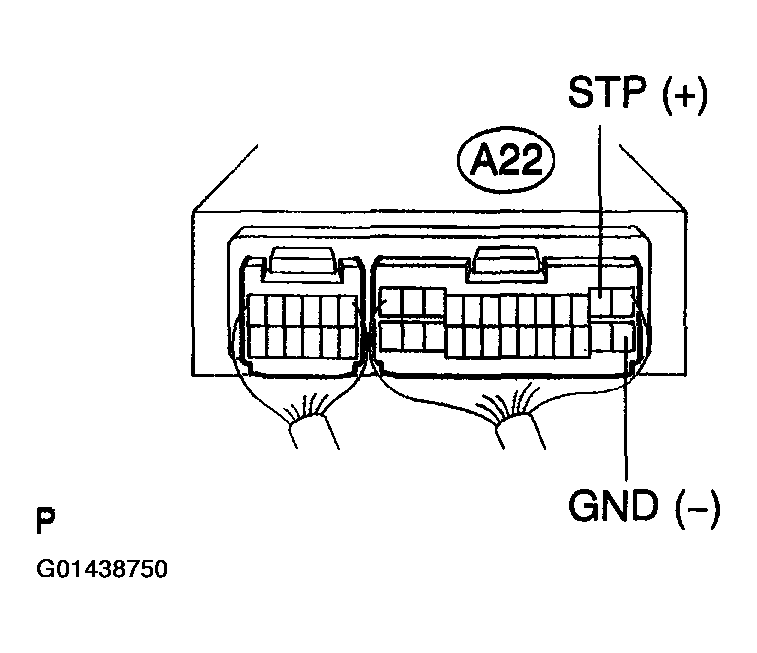

  Fig 5: Measuring Voltage Between Terminals STP & GND
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  OK:

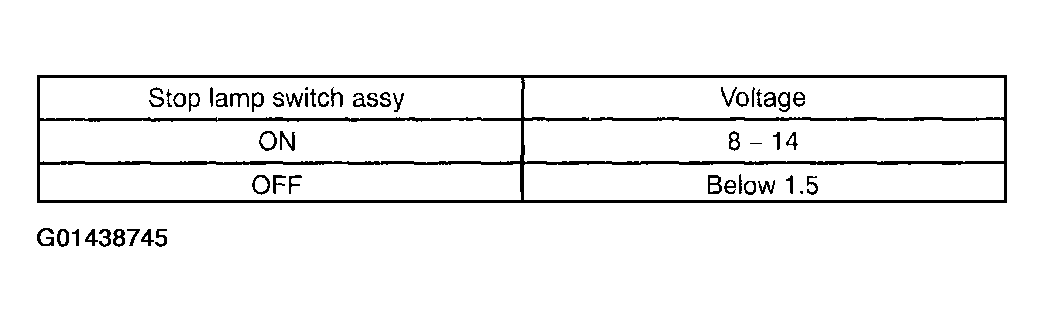

  Fig 6: Stop Lamp Switch Assembly Voltage Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK: CHECK AND REPLACE ABSORBER CONTROL ECU (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE )
