Circuit Description

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

The steering sensor is mounted on the combination switch assy, and detects the steering wheel angle and its direction.

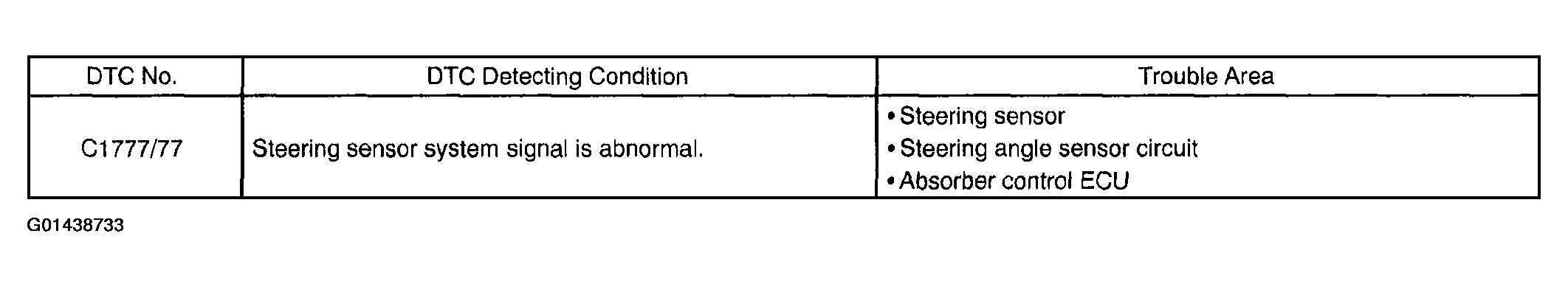

Fig 1: Steering Angle Sensor Circuit Description Chart
G01438733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
