Circuit Description
WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

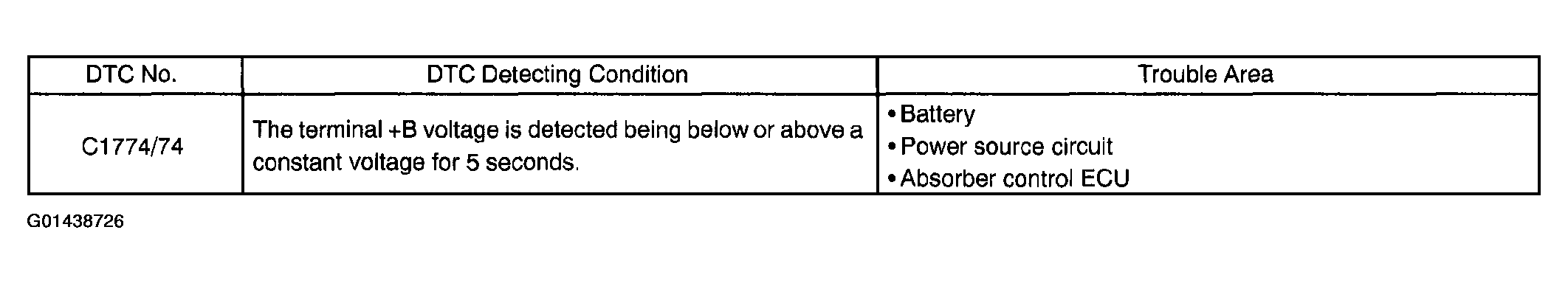

When turning the ignition switch to ON, the battery positive voltage is input to +B terminal to absorber control ECU. When turning the ignition switch to OFF, the battery positive voltage supply to +B terminal stops and the power switched OFF.
