Engine coolant temperature sensor output stuck at low engine coolant temperature:

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

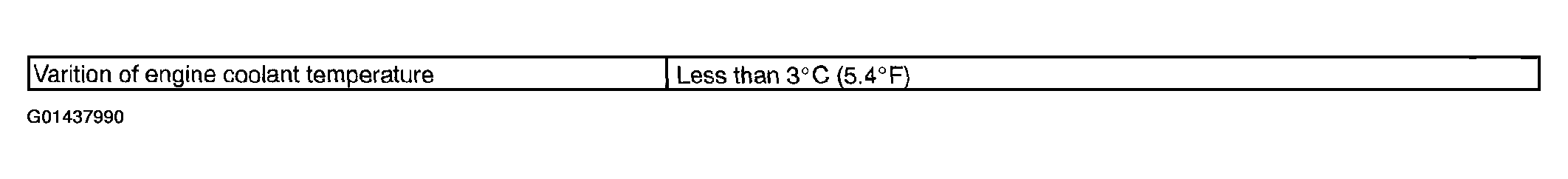

Fig 1: Engine Coolant Temperature Sensor Output Stuck At Low Engine Coolant Temperature Typical Malfunction Thresholds Table
G01437990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
