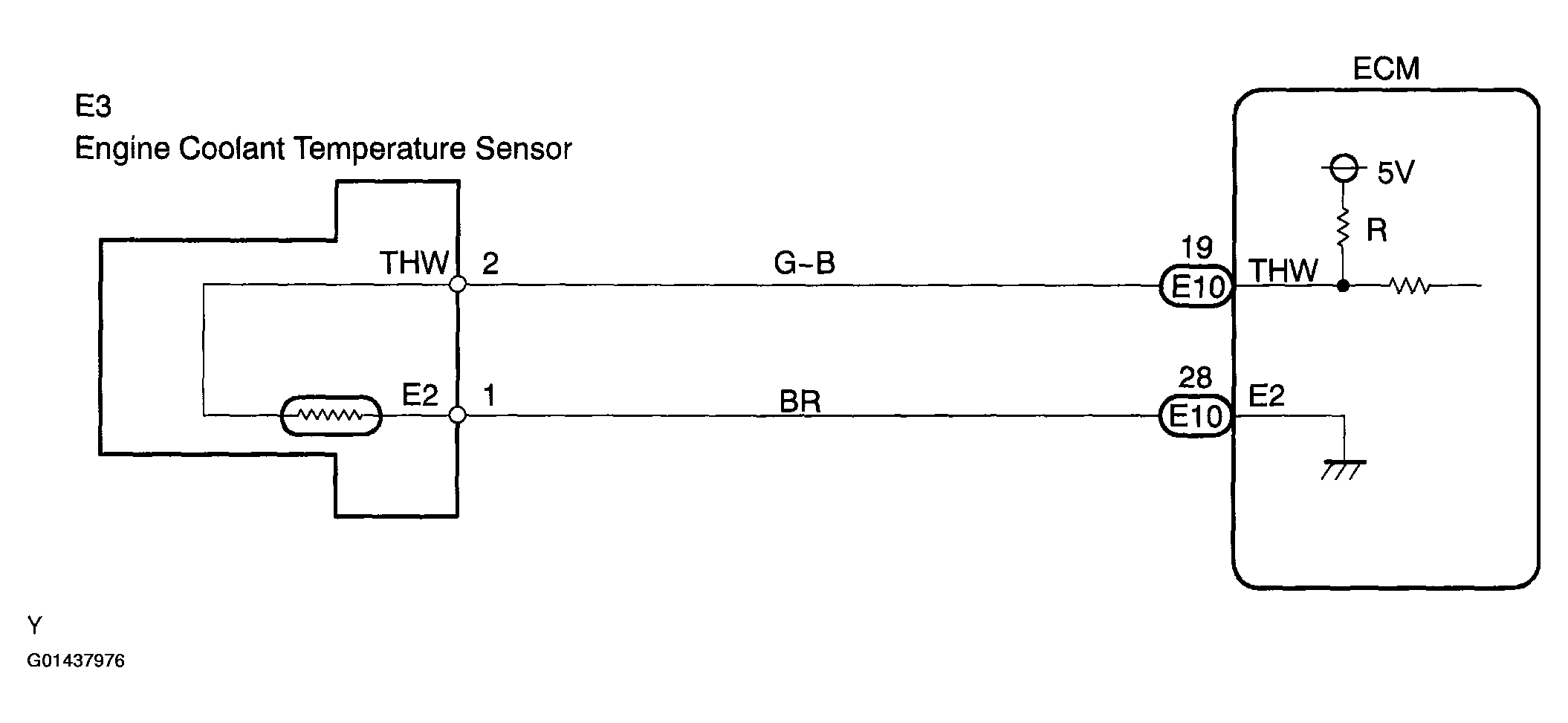

DTC P0115: Engine Coolant Temperature Circuit, DTC P0117 Engine Coolant Temperature Circuit Low Input, DTC P0118 Engine Coolant Temperature Circuit High Input: Wiring Diagram
WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.
