Water Valve: Removal
WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
- DRAIN ENGINE COOLANT FROM RADIATOR
HINT:
It is not necessary to drain out all the coolant.

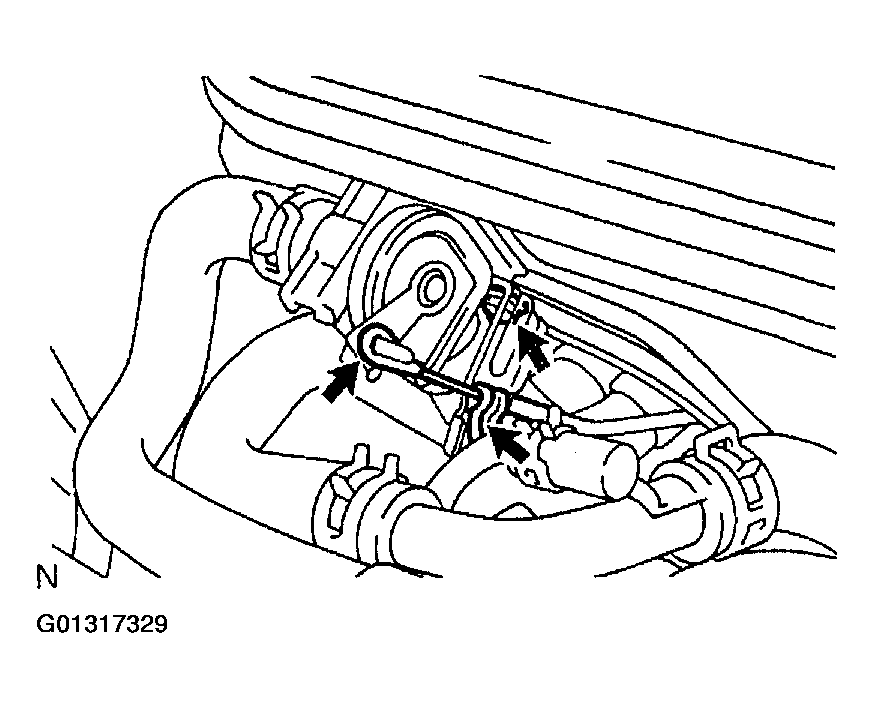

- DISCONNECT WATER VALVE CONTROL CABLE
HINT:
At the time of installation, please refer to the following item. After connection, check water valve operation.

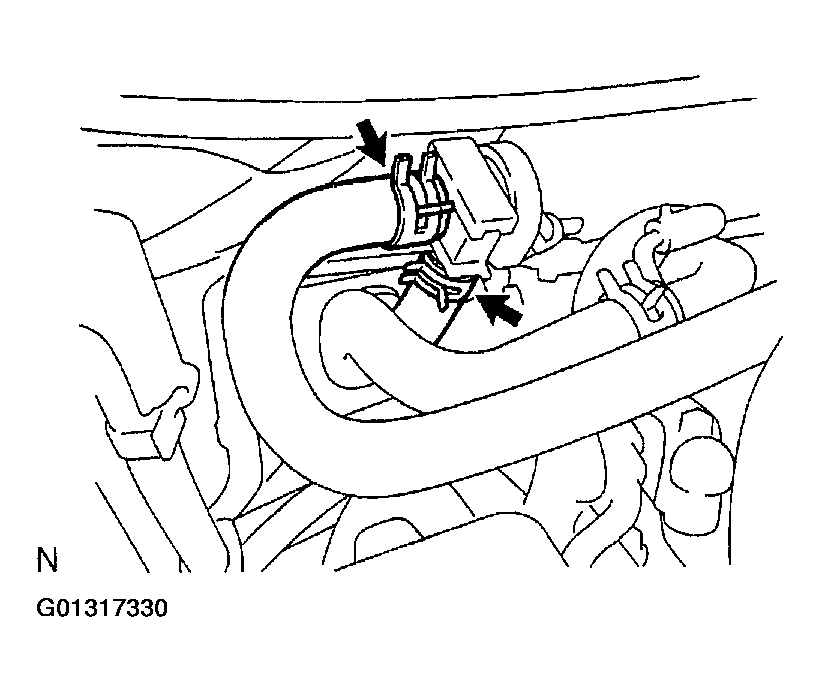

- DISCONNECT WATER HOSES FROM HEATER RADIATOR PIPE AND WATER VALVE
- Using pliers, grip the claw of the hose clip and side the hose clip along the hose.
- Disconnect the water hoses.
HINT:
At the time of installation, please refer to the following item. Push the water hose onto the water valve as far as the water valve.
- REMOVE WATER VALVE
Remove the bolt and water valve.
