Rear Damper Servomotor: Inspection

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE LUGGAGE COMPARTMENT FRONT COVER (See  LUGGAGE COMPARTMENT DOOR & HINGE  ).
  2. REMOVE REAR DAMPER SERVOMOTOR
    1. Disconnect the connector.
    2. Disconnect the magnetic valve connector clamp.
    3. Remove the 3 screws and servomotor.

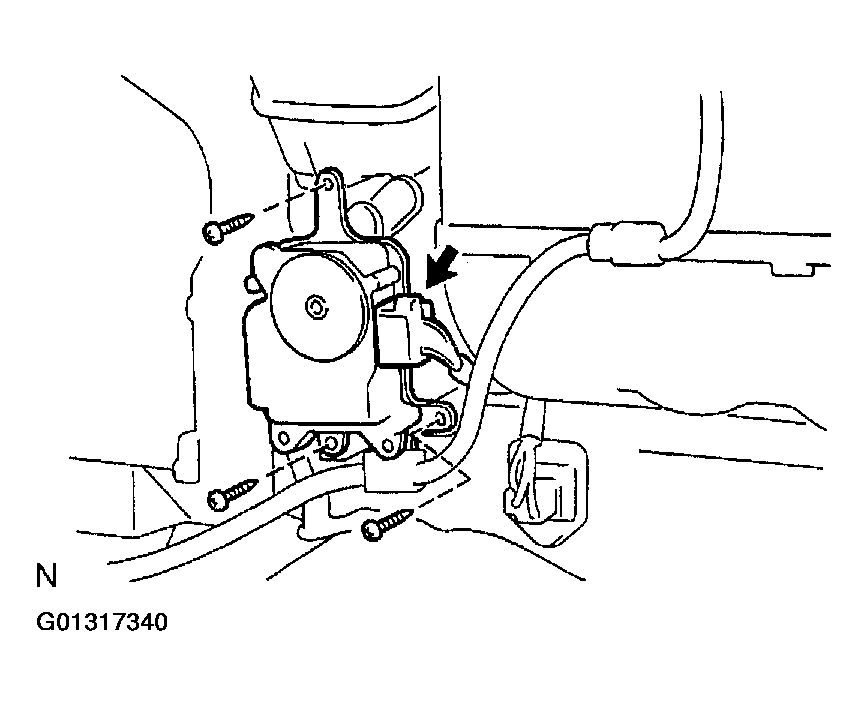

      Fig 1: Removing Rear Damper Servomotor
      G01317340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT REAR DAMPER SERVOMOTOR (See  EXHAUST DAMPER SERVOMOTOR CIRCUIT  ).
  4. INSTALL REAR DAMPER SERVOMOTOR
  5. INSTALL LUGGAGE COMPARTMENT FRONT COVER
