Remove Drive Belt

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the drive belt tension by turning the drive belt tensioner counterclockwise and remove the drive belt.

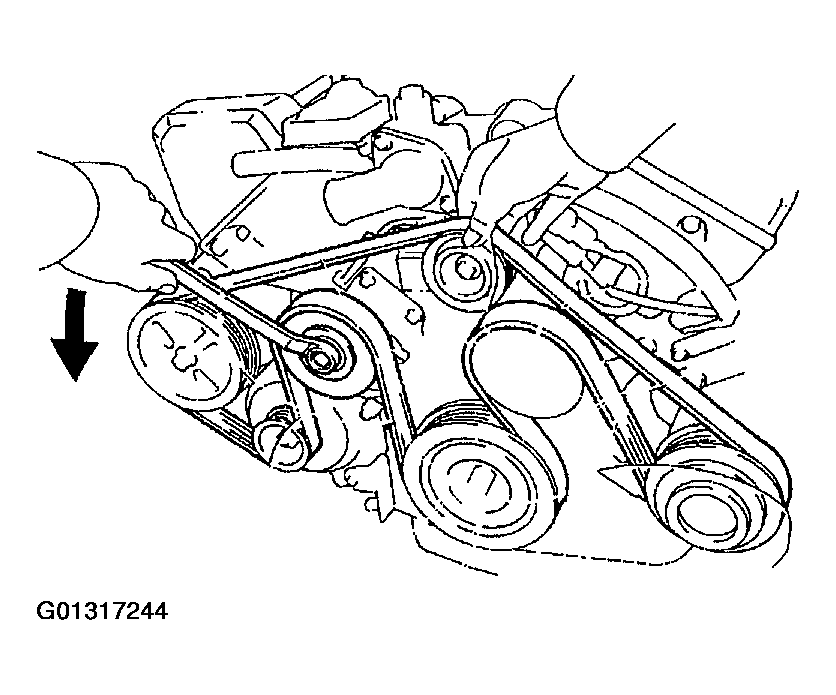

Fig 1: Removing Drive Belt
G01317244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
