Blower Resistor (For Rear A/C): Inspection

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE LUGGAGE COMPARTMENT FRONT COVER
  2. REMOVE BLOWER RESISTOR
    1. Disconnect the connector.
    2. Remove the screw and blower resistor.
  3. INSPECT BLOWER RESISTOR (See  BLOWER MOTOR CIRCUIT  ).
  4. INSTALL BLOWER RESISTOR
  5. INSTALL LUGGAGE COMPARTMENT FRONT COVER

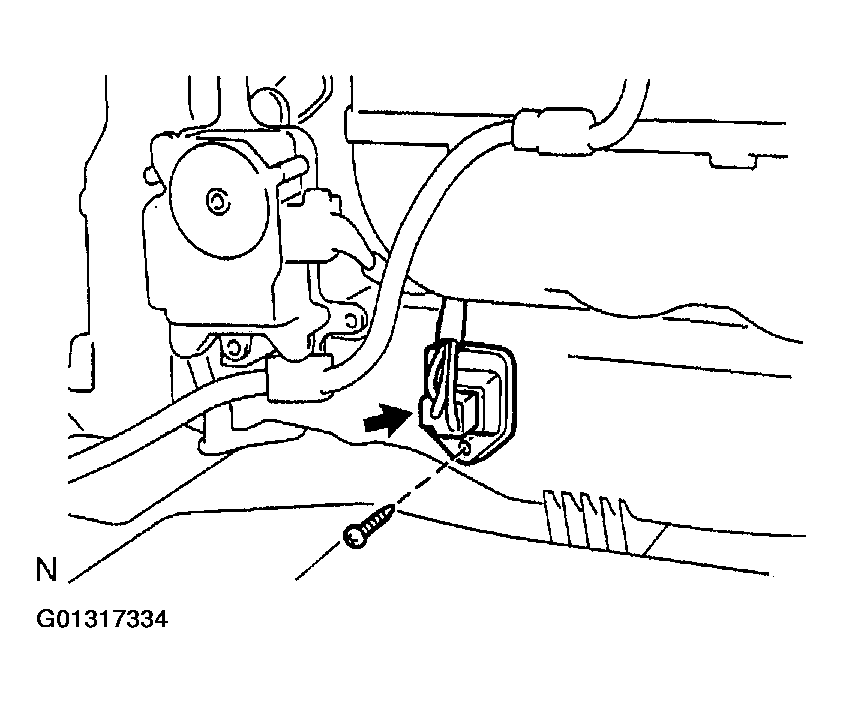

    Fig 1: Removing Blower Resistor
    G01317334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
