Power Tilt And Power Telescopic Steering Column: Disassembly

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When using a vise, do not overtighten it.
  1. REMOVE TRANSPONDER KEY AMPLIFIER WITH COIL
    1. Widen the claw hung on the upper bracket by approx. 1.0 mm (0.039 in.) using a screwdriver.
    2. Pull the transponder key amplifier toward the rear of the vehicle with the claw open.

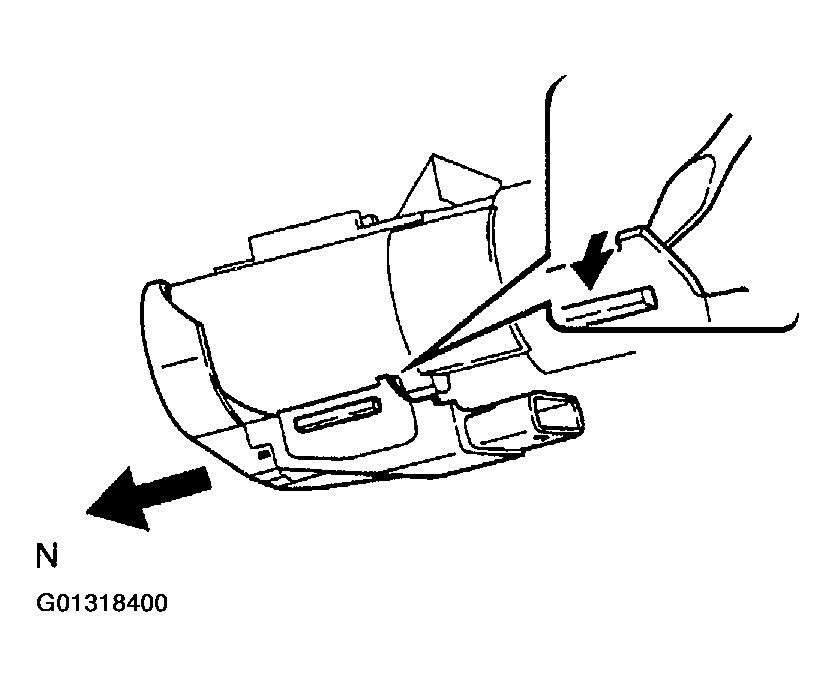

      Fig 1: Removing Transponder Key Amplifier With Coil
      G01318400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Take care not to use excessive force to prevent the case from being damaged.
  2. REMOVE CONNECTOR BRACKET
    1. Disconnect the connector.
    2. Remove the screw and connector bracket.
  3. REMOVE TURN SIGNAL BRACKET

    Remove the 3 bolts and turn signal bracket.

  4. REMOVE POWER TILT MOTOR
    1. Using a hexagon wrench, remove the support stopper bolt.
    2. Remove the stopper spring and stopper No. 1.
    3. Using a screwdriver, remove the 2 E-rings.
    4. Using a hexagon wrench, remove the 2 tilt steering bolts and power tilt motor.
    5. Remove the 2 support stopper bolt bushings from the power tilt motor.
  5. REMOVE ADJUSTING NUT No. 1
    1. Set SST, a plate washer (36 mm outer diameter) and bolt (6 mm normal diameter, 1.0 mm pitch, 50 mm length), as shown in the illustration.

      SST 09910-00015 (09911-00011, 09912-00010)

      Reference:

      Plate washer 90201-10201

      Bolt 91111-51050

    2. Remove the 2 tilt steering shafts by using the sliding hammer on SST and adjusting nut No. 1.

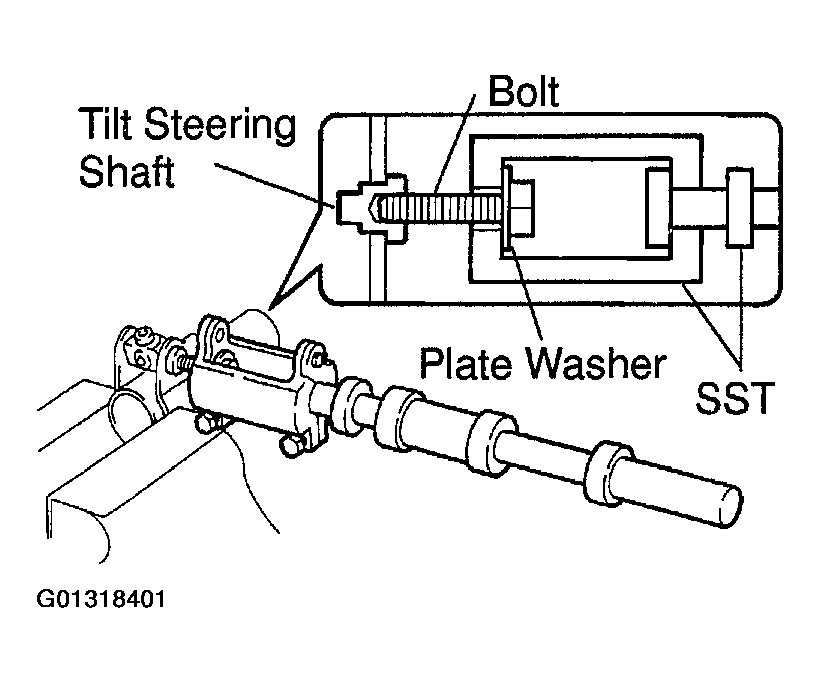

      Fig 2: Removing Adjusting Nut No. 1
      G01318401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 support stopper bolt bushings from the adjusting nut No. 1.
  6. REMOVE No. 1 STEERING LOWER TUBE BRACKET

    Remove the bolt and No. 1 steering lower tube bracket.

  7. REMOVE POWER TELESCOPIC MOTOR
    1. Remove the 2 bolts and power telescopic motor.
    2. Remove the telescopic steering column cable.
  8. REMOVE COLUMN TUBE SUPPORT
    1. Remove the bolt.
    2. Remove the column tube support with tube attachment.
    3. Remove the tube attachment from the column tube support.
  9. REMOVE 2 ENERGY ABSORBING PLATES
    1. Using pliers, remove the 2 energy absorbing clips.
    2. Remove the 2 energy absorbing plates and 2 energy absorbing guides.
  10. REMOVE TELESCOPIC STEERING SLIDER SUPPORT

    Remove the 2 bolts and telescopic steering slider support.

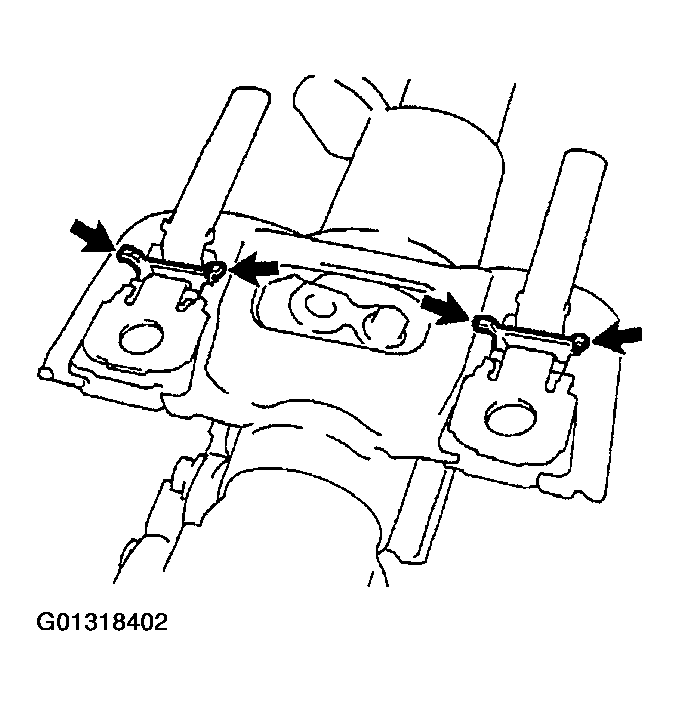

    Fig 3: Removing Energy Absorbing Plates
    G01318402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE TELESCOPIC STEERING SCREW

    Using Pliers, remove the nut, 4 energy absorber cushions, 2 bearings and telescopic steering screw.

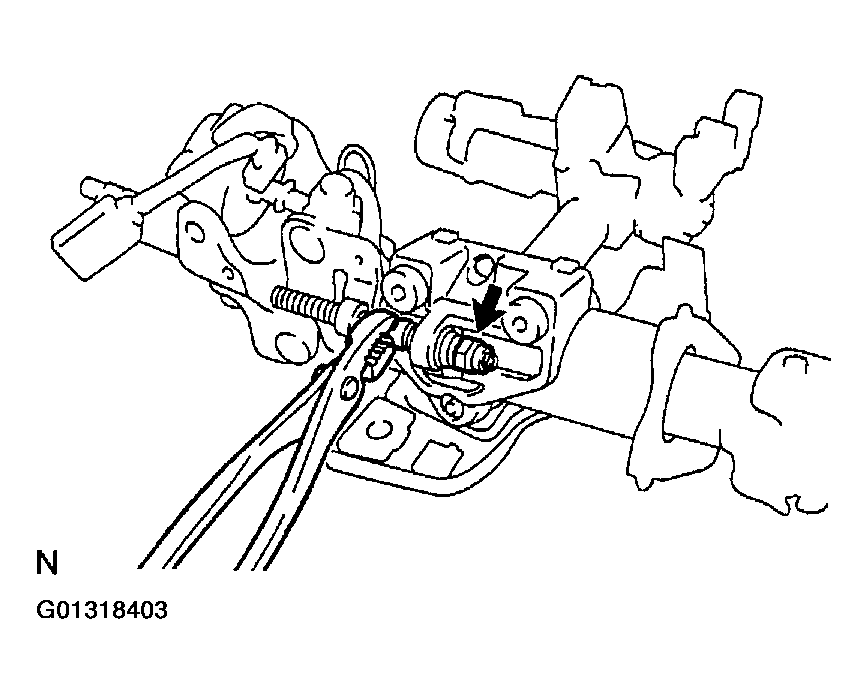

    Fig 4: Removing Telescopic Steering Screw
    G01318403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE TELESCOPIC STEERING BUSHING, STEERING COLUMN BRACKET SPACER AND TELESCOPIC STEERING SLIDER FROM TELESCOPIC STEERING SCREW
  13. REMOVE COLUMN UPPER BRACKET AND COLUMN UPPER CLAMP
    1. Using a hexagon wrench, remove the 2 telescopic lever lock bolts and 2 telescopic steering wedge lock springs.
    2. Remove column tube stopper.
    3. Using a centering punch, mark the center of the 2 tapered-head bolts.
    4. Using a 3 - 4 mm (0.12 - 0.16 in.) drill, drill into the 2 tapered-head bolts.
    5. Using a screw extractor, remove 2 tapered-head bolts, column upper bracket, column upper clamp and 2 steering lock wedges.

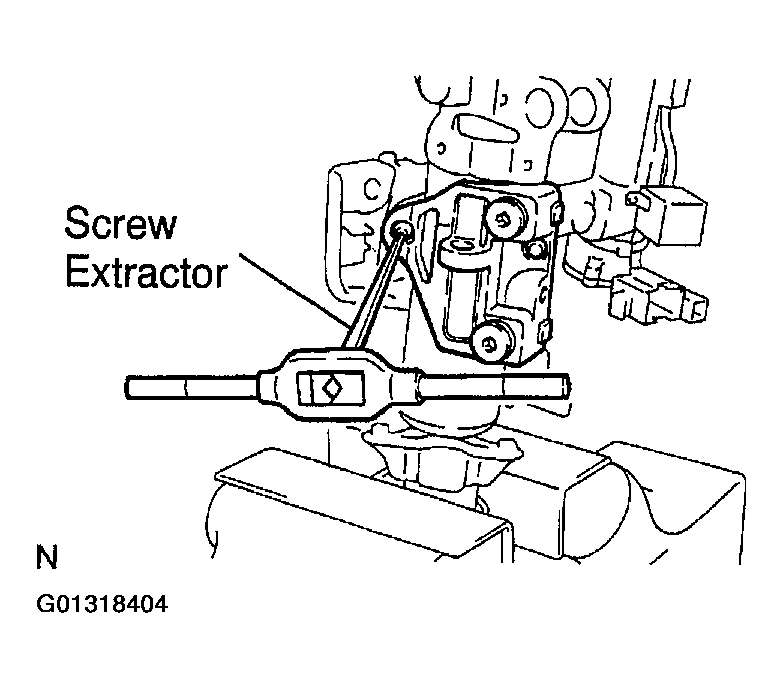

      Fig 5: Identifying Screw Extractor
      G01318404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE COLUMN UPPER TUBE SUB-ASSEMBLY WITH MAIN SHAFT ASSEMBLY
    1. Using a screwdriver, remove the snap ring.
    2. Remove the 2 screws and tilt steering support bond cable.
    3. Using a hexagon wrench, remove the 2 tilt steering bolts and column upper tube sub-assembly with main shaft assembly.
    4. Remove the column upper tube assembly from the column tube.
    5. Remove the 2 support stopper bolt bushings from the column upper tube assembly.
    6. Remove the 3 bushings from the column tube.
  15. REMOVE MAIN SHAFT ASSEMBLY
    1. Using SST, compress the compression spring.

      SST 09950-40011 (09958-04011)

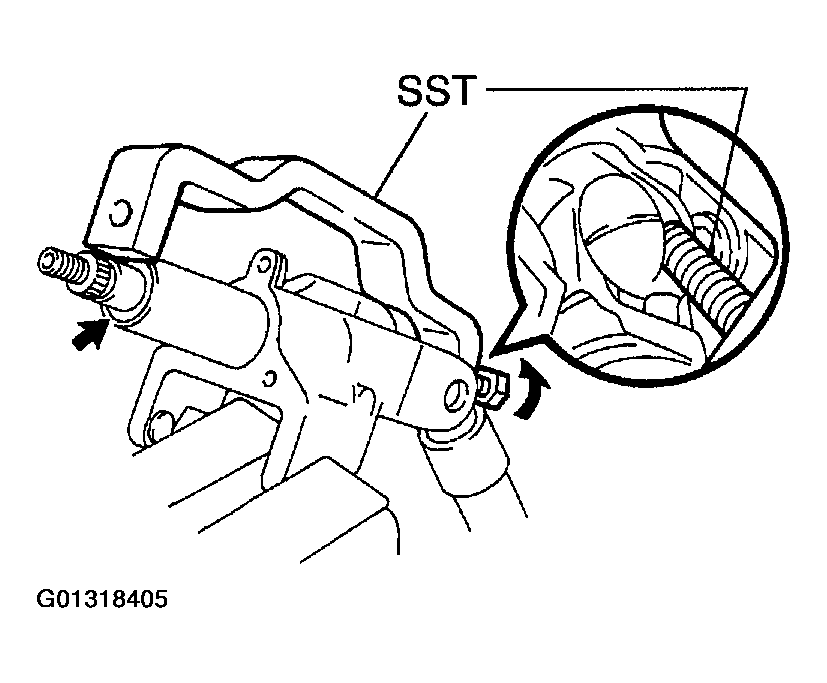

      Fig 6: Compressing Compression Spring
      G01318405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Do not bend the universal joint of the shaft assembly more than 20°.
    2. Using a snap ring expander, remove the snap ring.
    3. Remove the main shaft assembly from the column upper tube sub-assembly.
    4. Remove the compression spring, bearing thrust collar and bearing from the main shaft assembly.
