Power Tilt And Power Telescopic Steering Column: Components

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

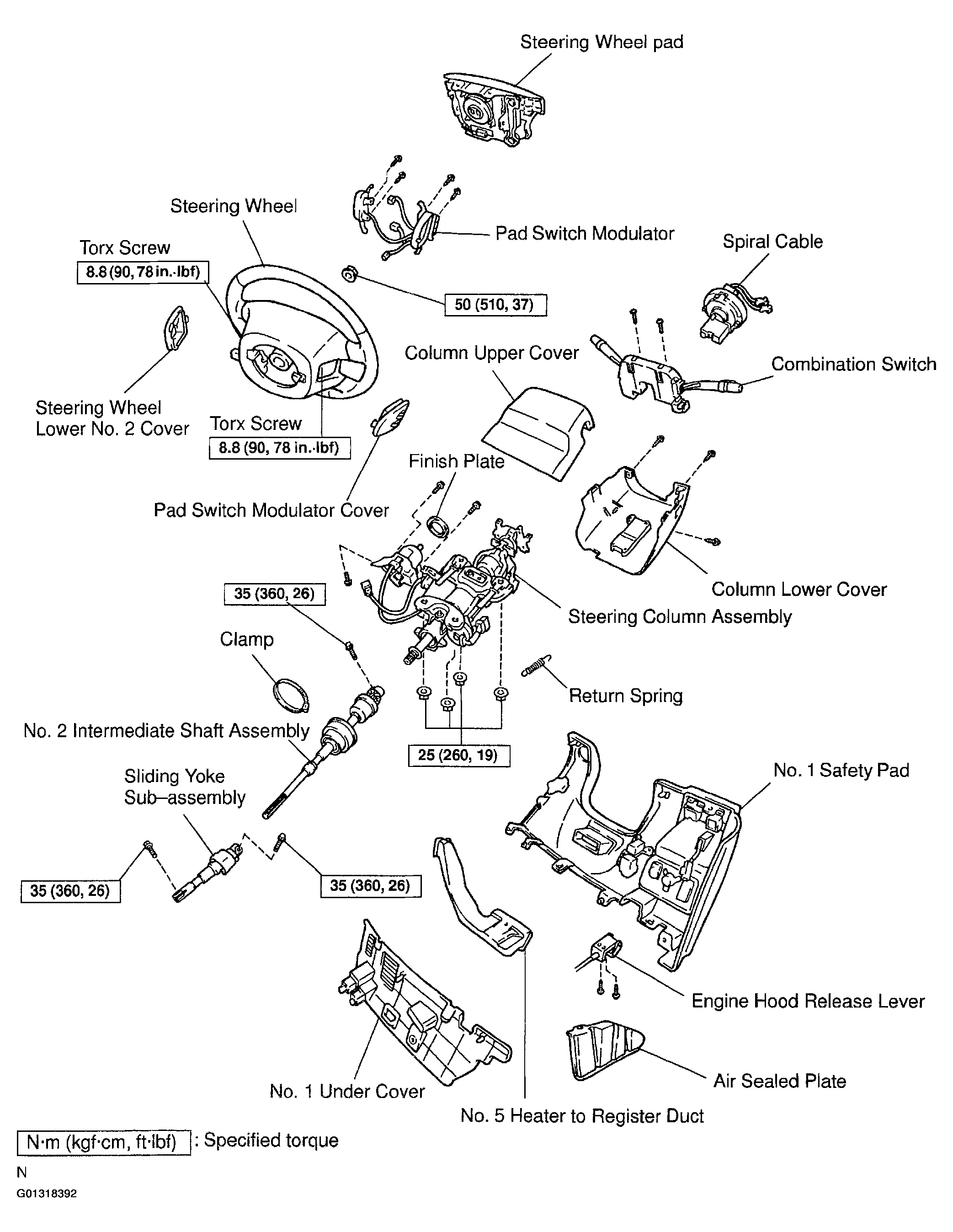

Fig 1: Exploded View Of Power Tilt & Power Telescopic Steering Column Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

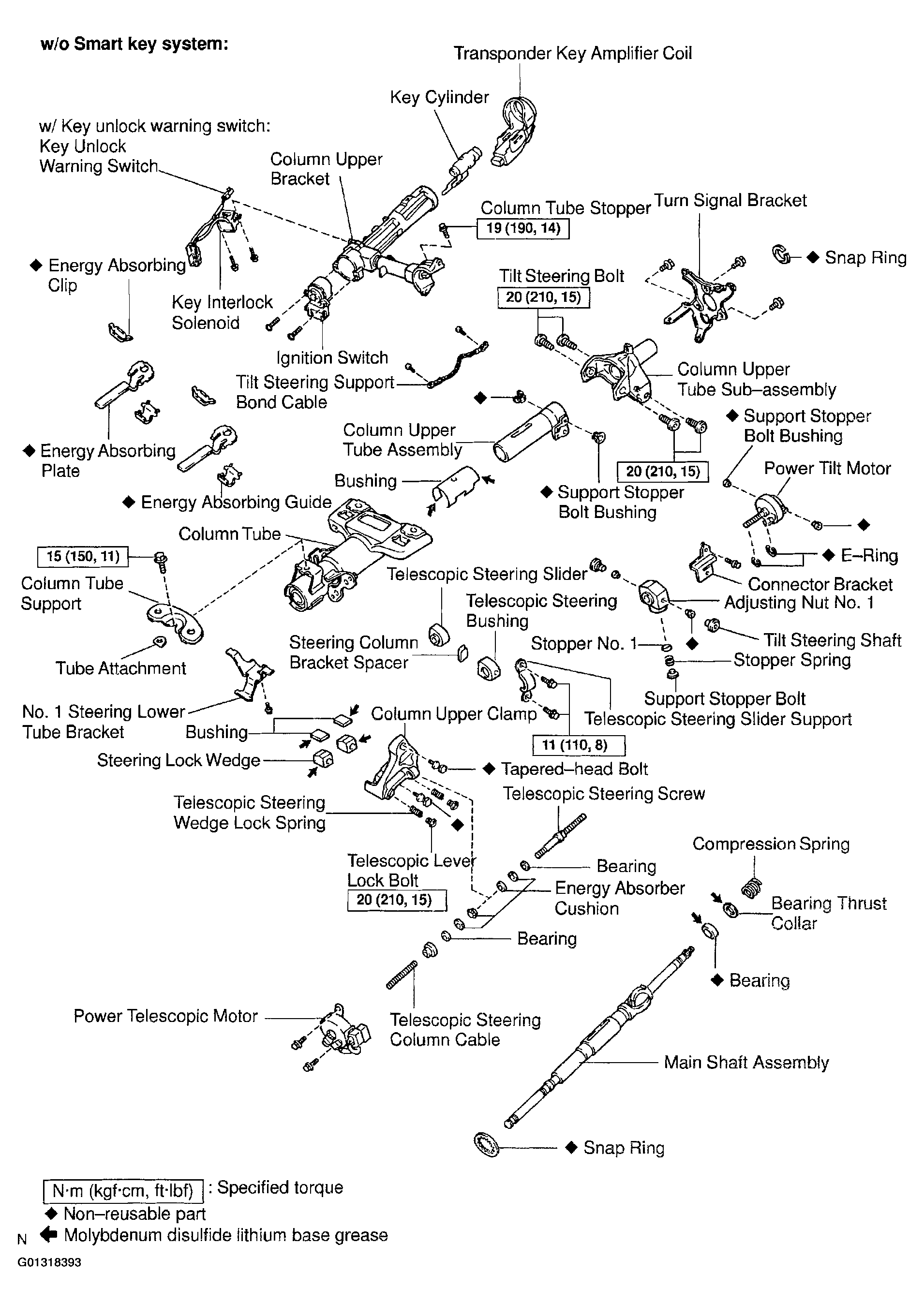

Fig 2: Exploded View Of Power Tilt & Power Telescopic Steering Column Components (2 Of 3)

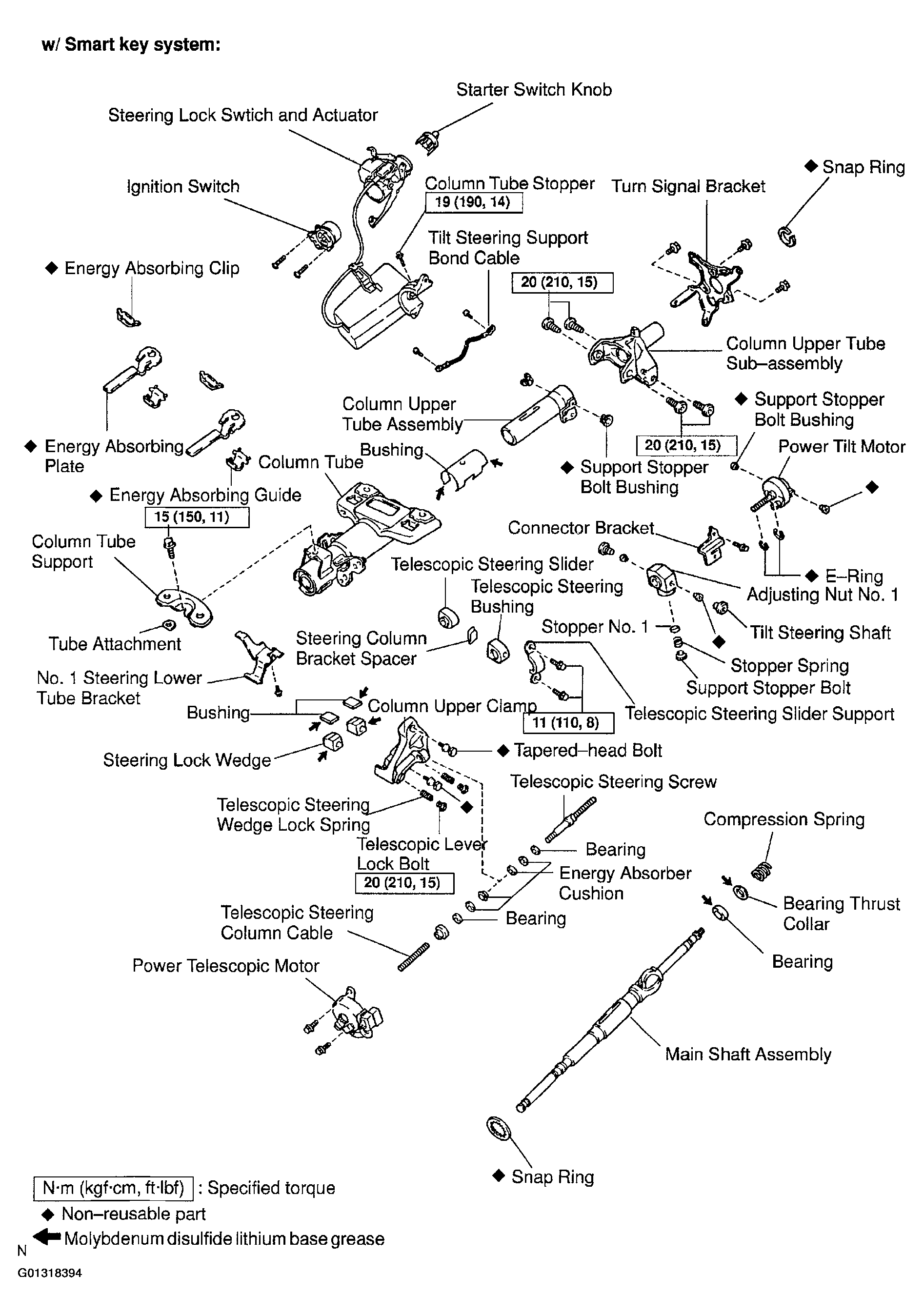

Fig 3: Exploded View Of Power Tilt & Power Telescopic Steering Column Components (3 Of 3)
