Set On

WARNING: This page is about a different car, the 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. CONNECT CHARGING HOSES TO MANIFOLD GAUGE SET

    Tighten the nuts by hand.

    CAUTION: Do not connect the wrong hoses.
  2. CONNECT QUICK DISCONNECT ADAPTERS TO CHARGING HOSES

    Tighten the nuts by hand.

  3. CLOSE BOTH HAND VALVES OF MANIFOLD GAUGE SET
  4. REMOVE CAPS FROM SERVICE VALVES ON REFRIGERANT LINE

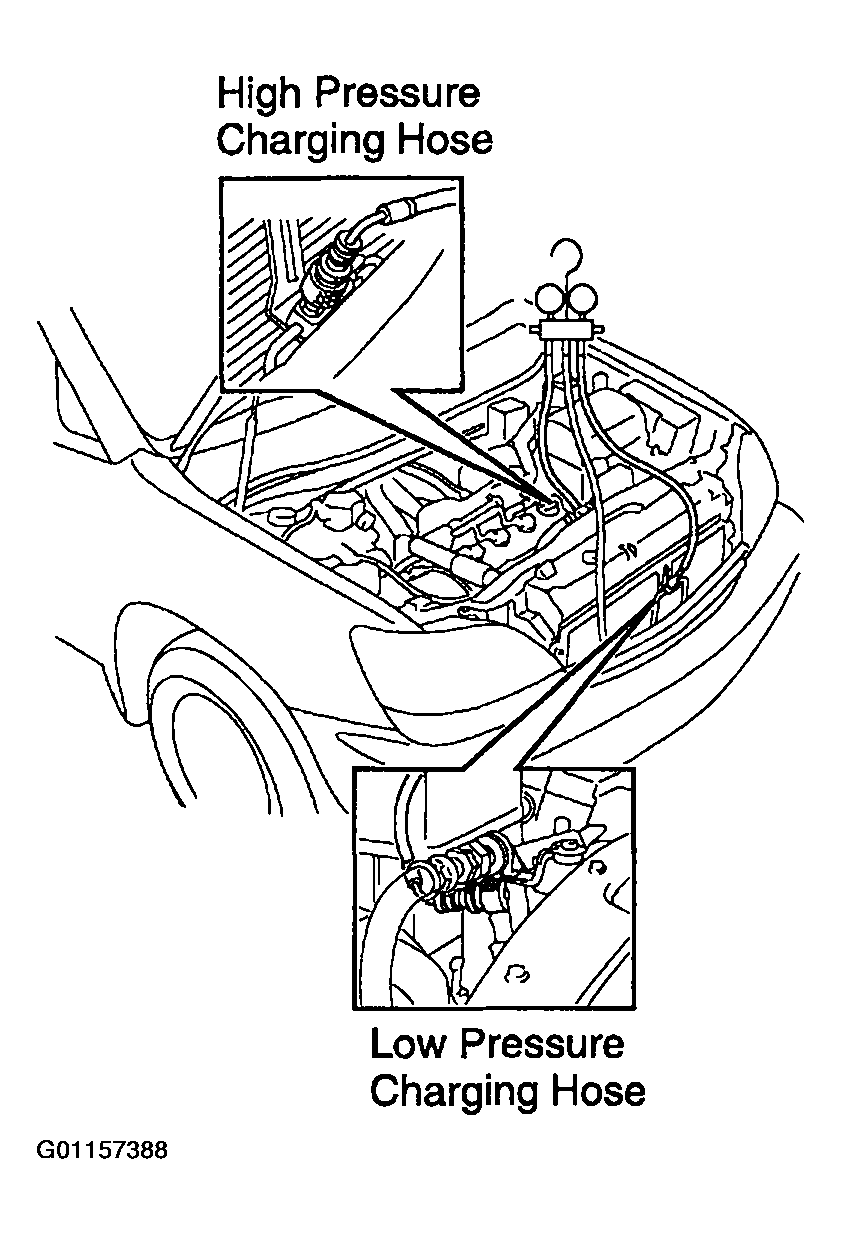

    Fig 1: Connecting Low And High Pressure Charging Hoses To Manifold Gauge Set
    G01157388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. CONNECT QUICK DISCONNECT ADAPTERS TO SERVICE VALVES

    HINT:

    Push the quick disconnect adapter onto the service valve, then slide the sleeve of the quick disconnect adapter downward to lock it.

    Fig 2: Identifying Quick Disconnect Adapter Sleeve
    G01157389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
